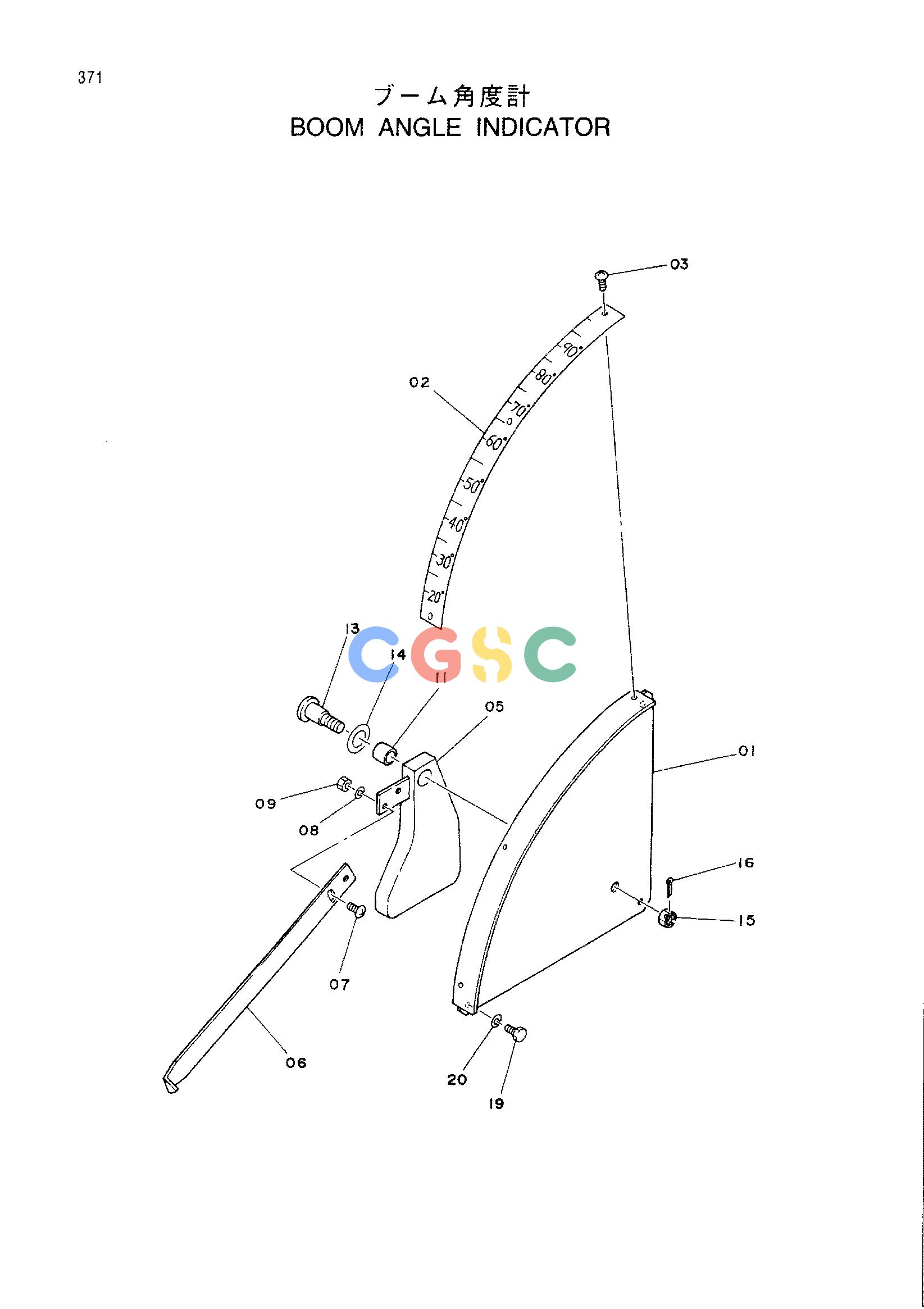

日立零件查询（CX1000）BOOM ANGLE INDICATOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
870 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9057970 | [1] | BOOM ANGLE INDICATOR | |
| 01. | 8013698 | [1] | PANEL;INDICATER | |
| 02. | 3030802 | [1] | NAME-PLATE | |
| 03. | M430610 | [3] | SCREW | |
| 05. | 9721583 | [1] | WEIGHT | |
| 06. | 4166665 | [1] | INDICATOR | |
| 07. | M430616 | [2] | SCREW | |
| 08. | A590906 | [2] | WASHER;SPRING | |
| 09. | M500605 | [2] | NUT | |
| 11. | 4080993 | [1] | BUSHING | |
| 13. | 4087189 | [1] | PIN | |
| 14. | A590116 | [1] | WASHER;PLANE | |
| 15. | M531012 | [1] | NUT;CASTLE | |
| 16. | A762022 | [1] | PIN;SPLIT | |
| 19. | J901020 | [3] | BOLT | |
| 20. | A590910 | [3] | WASHER;SPRING | |
