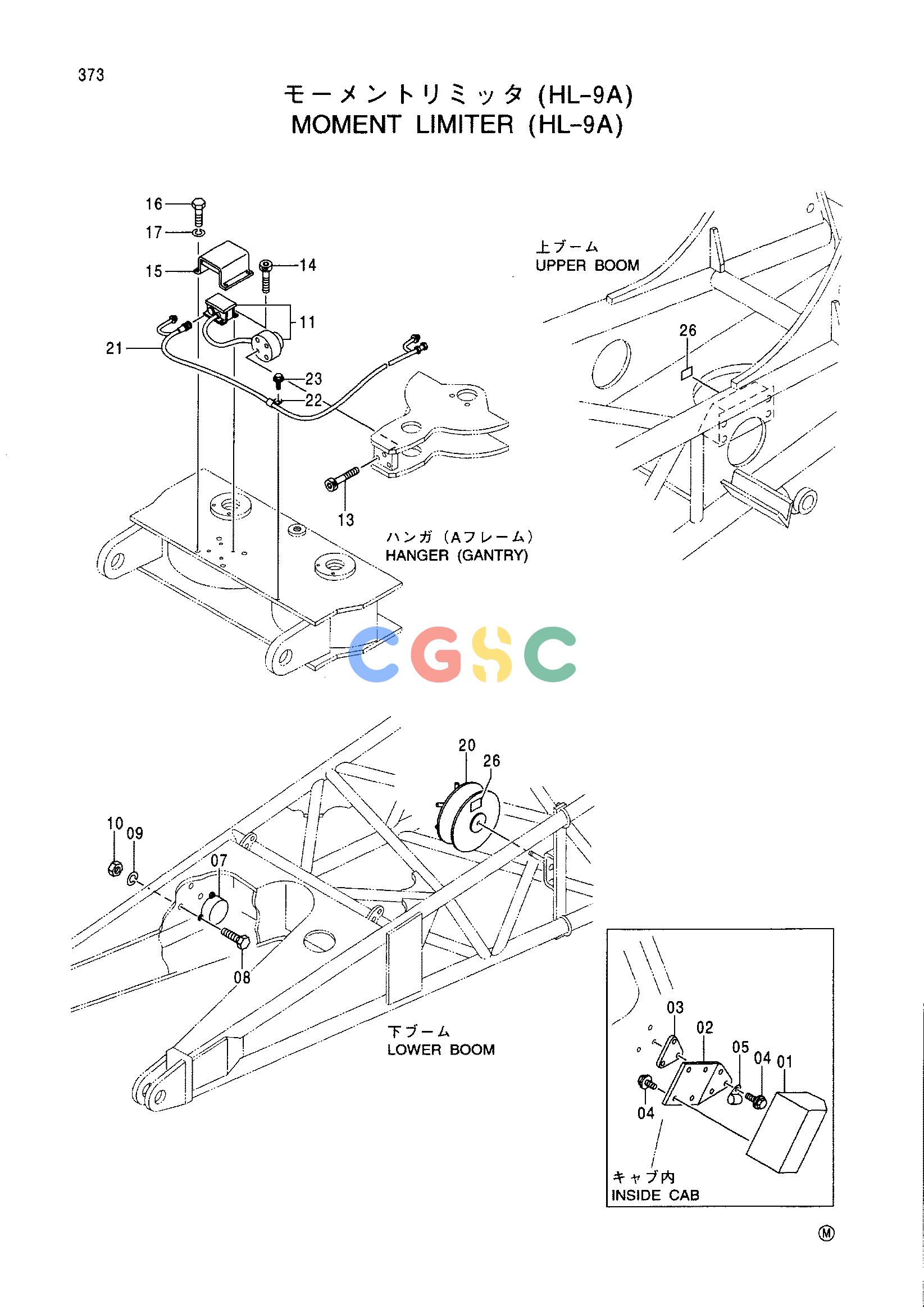

日立零件查询（CX1000）MOMENT LIMITER (HL-9A) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
470 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 9182938 | [1] | MOMENT LIMITER | |
| 02. | 3068375 | [1] | BRACKET | |
| 03. | 4341721 | [1] | SHIM | |
| 04. | J020820 | [7] | BOLT;SEMS | |
| 05. | 4190292 | [1] | CLIP | |
| 07. | 4332049 | [1] | GAUGE;ANGLE | I4464447 |
| 07. | 4332049 | [1] | GAUGE;ANGLE | |
| 07. | 4332049 | [1] | GAUGE;ANGLE | |
| 07. | 4464447 | [1] | GAUGE;ANGLE | |
| 07. | 4464447 | [1] | GAUGE;ANGLE | |
| 08. | J900835 | [3] | BOLT | |
| 09. | A590908 | [3] | WASHER;SPRING | |
| 10. | M500807 | [3] | NUT | |
| 11. | 4437109 | [1] | LOAD-SCALE | |
| 13. | M340840 | [4] | BOLT;SOCKET | |
| 14. | M340610 | [4] | BOLT;SOCKET | |
| 15. | 8033993 | [1] | COVER | |
| 16. | J901216 | [4] | BOLT | |
| 17. | A590912 | [4] | WASHER;SPRING | |
| 20. | 7007190 | [1] | REEL;CABLE | |
| 21. | 4437114 | [1] | HARNESS;WIRE | |
| 22. | 4190271 | [13] | CLIP | |
| 23. | J011020 | [12] | BOLT;SEMS | |
| 26. | 4469546 | [2] | NAME-PLATE <1000> | |
