斗山零件查询PILOT PIPING(11) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
354 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01224
|
[-] |

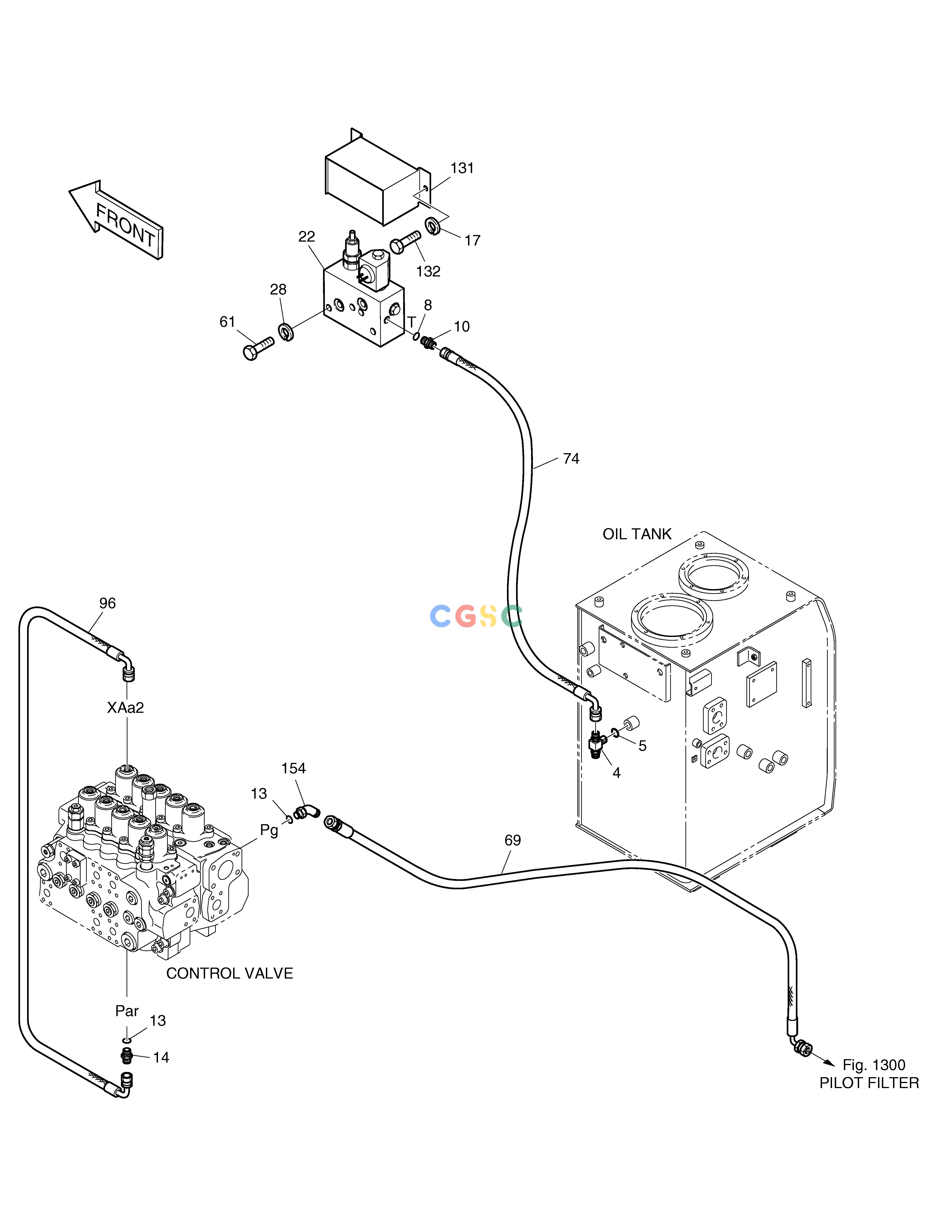

PILOT PIPING
|
|
| -. |
420212-04712A
|
[-] |
|
|
| -. |
420212-04712B
|
[-] |
|
|
| 10. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 13. |
S8000111
|
[2] |
O-RING
|
|
| 131. |
2627-1117A
|
[1] |
COVER
|
|
| 132. |
S0508353
|
[2] |
BOLT M8X1.25X10
|
|
| 14. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 154. |
2181-2419D1
|
[1] |
ELBOW
|
|
| 17. |
S5102503
|
[2] |
. WASHER
|
|
| 22. |
420-00367A
|
[1] |
VALVE;SOLENOID
|
|
| 28. |
S5102603
|
[2] |
. WASHER
|
|
| 4. |
2181-2281D2
|
[1] |
TEE PFO1/2-PF1/2-PF3/8
|
|
| 5. |
S8000181
|
[1] |
O-RING
|
|
| 61. |
S0559053
|
[2] |
BOLT M10X1.5X75
|
|
| 69. |
2184-1046D83
|
[1] |
HOSE PF1/4-830L
|
|
| 74. |
2184-1036D164
|
[1] |
HOSE PF3/8-400L
|
|
| 8. |
S8000141
|
[1] |
O-RING
|
|
| 96. |
2184-1061D73
|
[1] |
HOSE PF1/4-900L
|
|
