斗山零件查询PILOT PIPING(10) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
714 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01224
|
[-] |

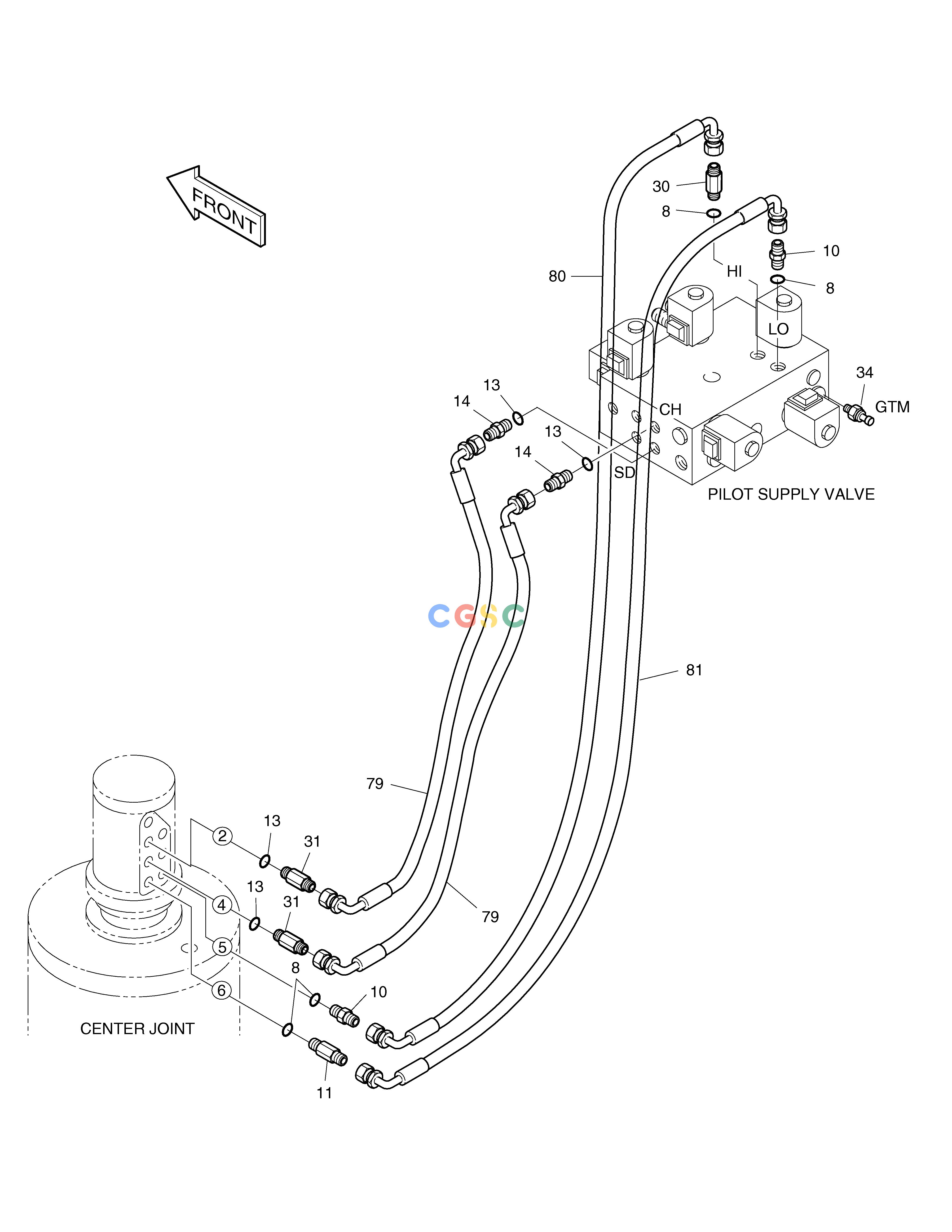

PILOT PIPING
|
|
| -. |
420212-04712A
|
[-] |
|
|
| -. |
420212-04712B
|
[-] |
|
|
| 10. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 11. |
2181-1126D27
|
[1] |
ADAPTER
|
|
| 13. |
S8000111
|
[4] |
O-RING
|
|
| 14. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 30. |
2181-1126D28
|
[1] |
ADAPTER
|
|
| 31. |
2181-1126D34
|
[2] |
ADAPTER
|
|
| 34. |
547-00001
|
[1] |
SENSOR,PRESSURE
|
|
| 79. |
2184-1062D68
|
[2] |
HOSE PF1/4-870L
|
|
| 8. |
S8000141
|
[4] |
O-RING
|
|
| 80. |
2184-1096D92
|
[1] |
HOSE PF3/8-1150L
|
|
| 81. |
2184-1096D92
|
[1] |
HOSE PF3/8-1150L
|
|
