斗山零件查询PILOT PIPING(3) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
698 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01224
|
[-] |

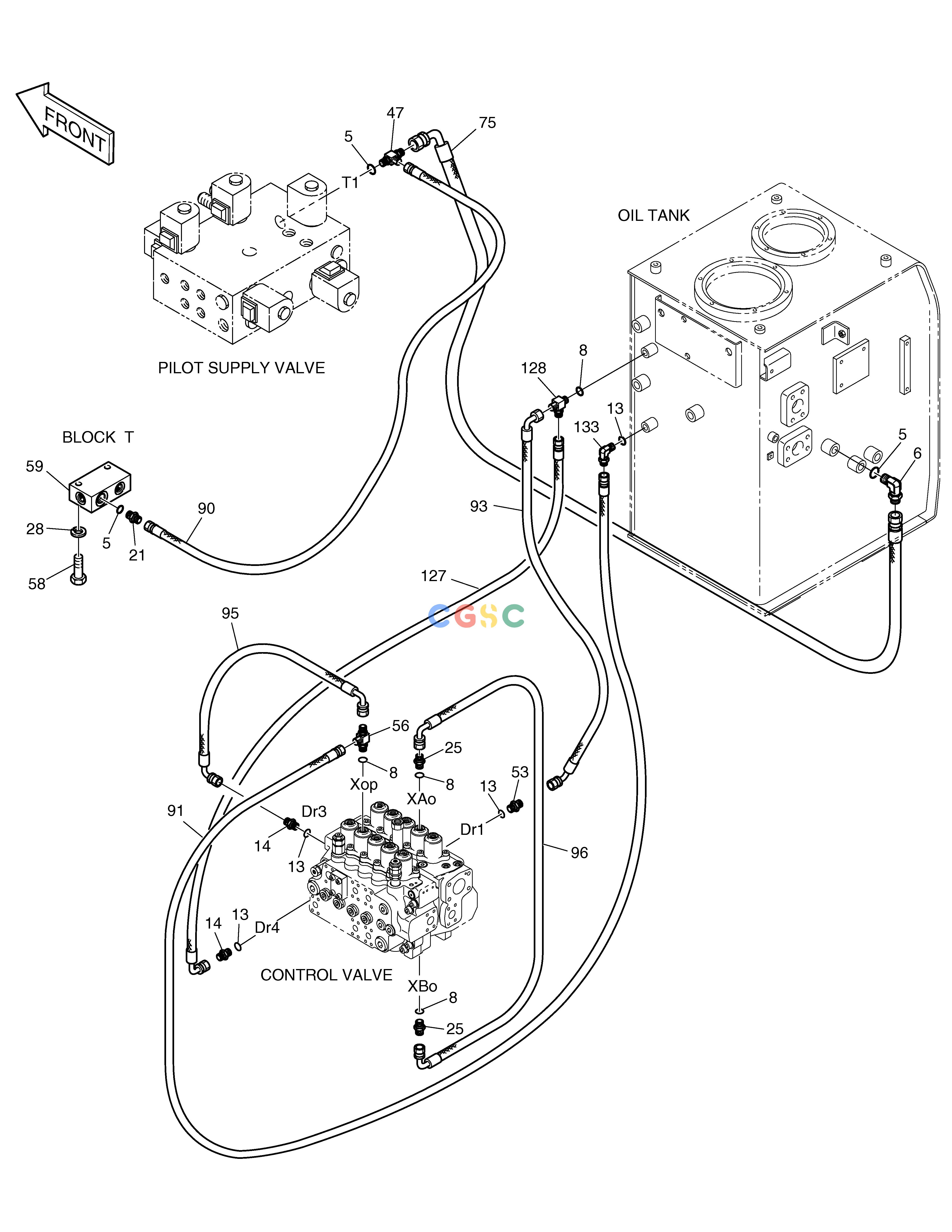

PILOT PIPING
|
|
| -. |
420212-04712A
|
[-] |
|
|
| -. |
420212-04712B
|
[-] |
|
|
| 127. |
2184-1046D147
|
[1] |
HOSE PF1/4-1000L
|
|
| 128. |
2181-1951D6
|
[1] |
TEE
|
|
| 13. |
S8000111
|
[4] |
O-RING
|
|
| 133. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 14. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 21. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 25. |
2181-1126D36
|
[2] |
ADAPTER
|
|
| 28. |
S5102603
|
[2] |
. WASHER
|
|
| 47. |
2181-1951D5
|
[1] |
TEE
|
|
| 5. |
S8000181
|
[3] |
O-RING
|
|
| 53. |
2181-1126D89
|
[1] |
ADAPTER PFO1/4-PF3/8
|
|
| 56. |
2181-1951D7
|
[1] |
TEE
|
|
| 58. |
S0558653
|
[2] |
BOLT M10X1.5X55
|
|
| 59. |
2423-1470
|
[1] |
BLOCK
|
100201-01615A
|
| 59. |
100201-01615A
|
[1] |
|
2423-1470
|
| 59. |
2423-1470
|
[1] |
BLOCK
|
|
| 6. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 75. |
2184-1036D71
|
[1] |
HOSE PF1/2-2100L
|
|
| 8. |
S8000141
|
[4] |
O-RING
|
|
| 90. |
2184-1026D376
|
[1] |
HOSE PF1/2-2500L
|
|
| 91. |
2184-1045D157
|
[1] |
HOSE PF1/4-1500L
|
|
| 93. |
2184-1061D82
|
[1] |
HOSE PF3/8-400L
|
|
| 95. |
2184-1061D253
|
[1] |
HOSE PF1/4-500L
|
|
| 96. |
2184-1061D73
|
[1] |
HOSE PF1/4-900L
|
|
