斗山零件查询PILOT PIPING(4) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
138 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00014A
|
[-] |

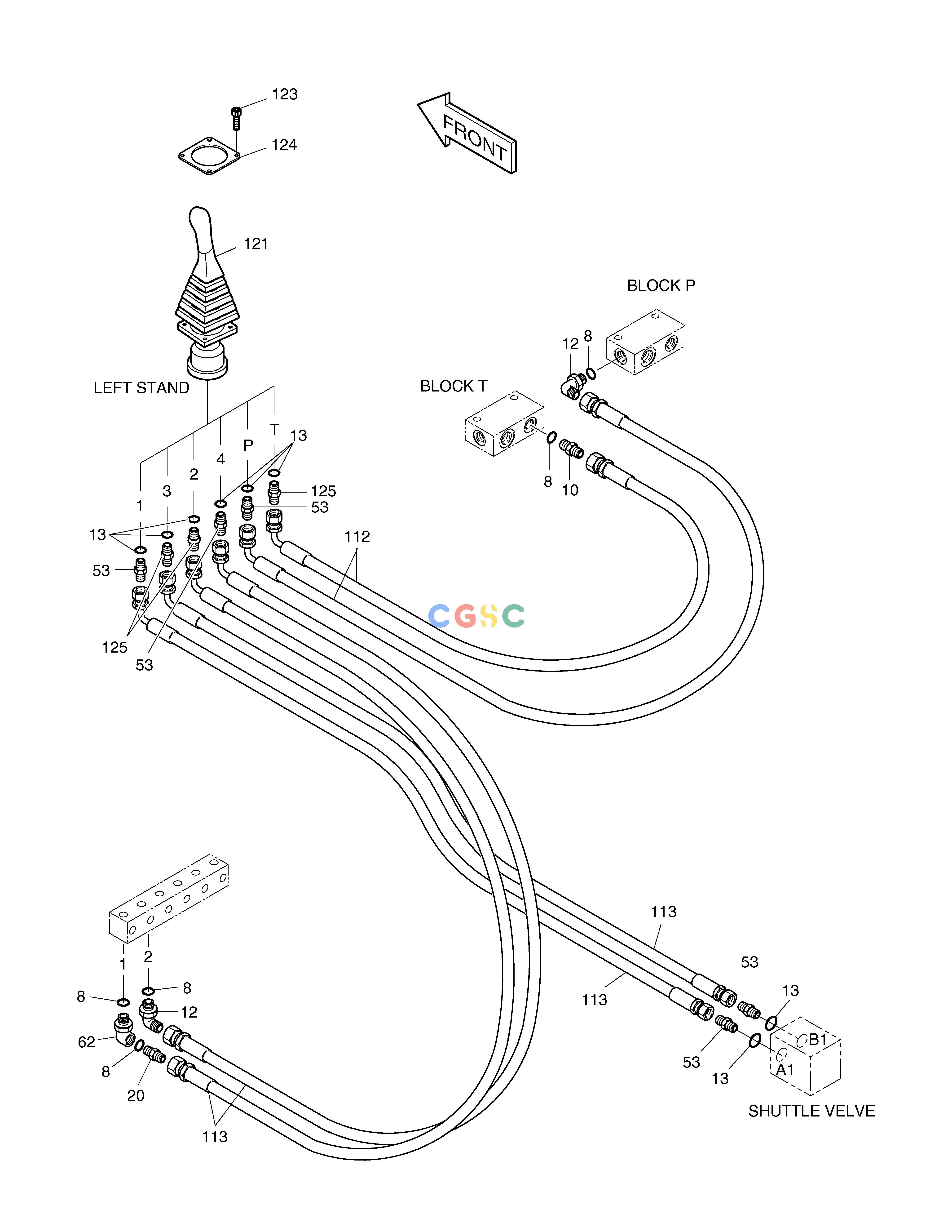

PILOT PIPING
|
|
| -. |
420212-04712A
|
[-] |
|
|
| -. |
420212-04712B
|
[-] |
|
|
| 10. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 112. |
2184-1267D9
|
[2] |
HOSE PF3/8-1950L
|
|
| 113. |
2184-1267D3
|
[4] |
HOSE PF3/8-1700L
|
|
| 12. |
2181-1702D5
|
[2] |
ELBOW
|
|
| 121. |
420-00342B
|
[1] |
REMOTE CONTROL VALVE(L.H)
|
410113-00146
|
| 121. |
410113-00146
|
[1] |
|
410113-00146A
|
| 121. |
410113-00146A
|
[1] |
|
|
| 123. |
S2205066
|
[4] |
BOLT
|
|
| 124. |
2621-2752
|
[1] |
PLATE
|
|
| 125. |
2181-1126D120
|
[3] |
ADAPTER PFO1/4-PF3/8
|
|
| 13. |
S8000111
|
[8] |
O-RING
|
|
| 20. |
181-00144D10
|
[1] |
ADAPTER;ORIFICE
|
|
| 53. |
2181-1126D89
|
[5] |
ADAPTER PFO1/4-PF3/8
|
|
| 62. |
2181-2295D16
|
[1] |
ELBOW 2-PFO3/8
|
|
| 8. |
S8000141
|
[5] |
O-RING
|
|
