纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (03-004[02]) - HYD LINES, BOOM 5.05M (BOOM & ARM SAFETY) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
375 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | YB01V00009F2 | [1] | HYDRAULIC CYLINDER | KOBASSY, BOOM (L.H) |
| 3. | YB01V00010F2 | [1] | HYDRAULIC CYLINDER | KOBCYLINDER ASSY, ARM |
| . . | YB42H00033F1 | [1] | HYD LINES, CYLINDER | |
| A1. | YB42H01067P1 | [1] | RIGID TUBE | KOB |
| A2. | YB42H01066P1 | [1] | RIGID TUBE | KOB |
| A3. | YB42H01096P1 | [1] | RIGID TUBE | KOB |
| A4. | YB42H01021P1 | [1] | ELBOW | KOB |
| A5. | YB42H01027P1 | [1] | TUBE | KOB |
| A6. | YB42H01028P1 | [1] | TUBE | KOB |
| A7. | YB42H01024P1 | [1] | TUBE | KOB |
| A8. | YB42H01025P1 | [1] | TUBE | KOB |
| A9. | YN42H01547P1 | [2] | BLOCK | KOBTAPPED |
| A10. | ZX20H10086 | [2] | FLEXIBLE HOSE | KOB |
| A11. | ZX20H12086 | [2] | FLEXIBLE HOSE | KOB |
| A12. | ZX20H10130 | [1] | HOSE | KOB |
| A13. | 2444Z3499 | [4] | HYD CONNECTOR | KOB |
| A14. | YB28V00005F1 | [1] | VALVE | KOBASSY, HOLDING |
| A15. | YB28V00004F1 | [1] | VALVE | KOBASSY, HOLDING |
| A16. | 2432T2242 | [2] | CLAMP | KOB |
| A17. | ZC36X15009 | [2] | CLAMP | KOB |
| A18. | HG33H12012G1 | [2] | HYD CONNECTOR | KOB |
| A19. | ZA33F15006 | [2] | ELBOW | KOB |
| A20. | ZG23F10008 | [1] | HYD CONNECTOR | KOB |
| A21. | ZA23F15006 | [2] | HYD CONNECTOR | KOB |
| A22. | ZH22Z04000 | [2] | HYD CONNECTOR | KOB |
| A23. | 2444Z2891 | [2] | HYD CONNECTOR | KOB |
| A24. | ZD12P02600 | [4] | O-RING | KOB |
| A25. | ZD12A01800 | [4] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
| A26. | ZD12A01600 | [4] | O-RING | KOB |
| A27. | ZD12P01400 | [4] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| A28. | ZS18C10065 | [2] | SCREW,Hex, M10 x 65mm | KOBCAP |
| A29. | ZS18C08035 | [2] | SCREW,Hex, M8 x 35mm | KOBCAP |
| A30. | ZS28C10065 | [8] | SCREW,Hex Socket Head, M10 x 65mm | KOBCAP |
| A31. | ZS28C10030 | [8] | SCREW,Hex Socket Head, M10 x 30mm | KOBCAP |
| A32. | ZW16H10000 | [2] | WASHER | KOB |
| A33. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| A34. | ZW26X08000 | [2] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| A35. | ZW26K10000 | [16] | LOCK WASHER | KOBLOCK |
| A36. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOBGREASE |
| A37. | PY01P01043D3 | [4] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| A38. | YN42H01657P1 | [2] | U-BRACKET | KOBBLOCK |
| A39. | ZS28C10045 | [8] | SCREW,Hex Socket Head, M10 x 45mm | KOBCAP |
| A40. | ZE72X08000 | [2] | PLUG | KOB |
| A42. | YN42H01602P1 | [1] | TEE | KOB |
| A43. | 2444Z3713 | [1] | HYD CONNECTOR | KOB |
| A44. | YN50S00031F1 | [1] | PRESSURE SWITCH | KOBOIL |
| A45. | 2432T5004 | [1] | CLAMP | KOB |
| A46. | 2432T5003 | [1] | CLAMP | KOB |
| A47. | YB42H01094P1 | [1] | PLATE | KOB |
| A48. | YN42H02187P1 | [1] | U-BRACKET | KOB |
| A49. | HG33H04004G1 | [1] | ELBOW | KOB |
| A50. | HG23F04004G1 | [1] | HYD CONNECTOR | KOB |
| A51. | ZS18C05040 | [2] | CAPSCREW,Hex, M5 x 40mm | KOBSCREW CAP |
| A52. | ZS18C08025 | [2] | SCREW,Hex, M8 x 25mm | KOBCAP |
| A53. | ZS18C12065 | [2] | SCREW,Hex, M12 x 65mm | KOBCAP |
| A54. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| A55. | ZW16H12000 | [2] | WASHER | KOB |
| A56. | ZW26X05000 | [2] | LOCK WASHER | KOBLOCK |
| A57. | YY42H01330P1 | [1] | O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro | KOB |

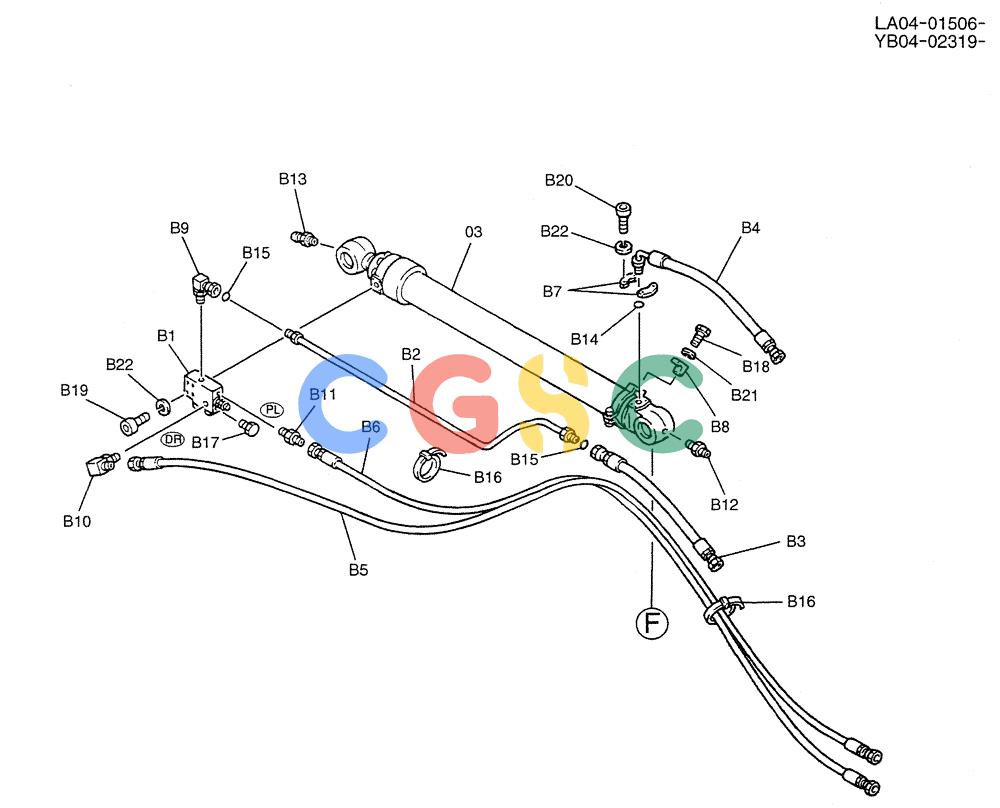

| . . | YB42H00022F1 | [1] | HYD LINES,CYLINDER | |
| B1. | YB28V00003F1 | [1] | VALVE | KOBASSY, HOLDING |
| B2. | YM42H01036P1 | [1] | HYD. TUBE,1386, 207 mm L | KOB |
| B4. | ZX30U12086 | [1] | FLEXIBLE HOSE | KOB |
| B5. | ZX25M06400 | [1] | HOSE | KOB |
| B6. | 2420R537D390 | [1] | HOSE,9.60mm ID x 3900mm L | KOB |
| B7. | ZE13X12000 | [2] | CLAMP | KOBHALF |
| B8. | YN43H01097P1 | [1] | CLAMP | KOB |
| B10. | ZH32X06000 | [1] | 90 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| B11. | ZH22X06000 | [1] | HYD CONNECTOR | KOB |
| B15. | ZD12P01800 | [2] | O-RING | KOB |
| B18. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBCAP |
| B20. | ZS28C10035 | [4] | SCREW,Hex Socket Head, M10 x 35mm | KOBSCREW |
| B21. | ZW26X12000 | [1] | WASHER | KOB |
