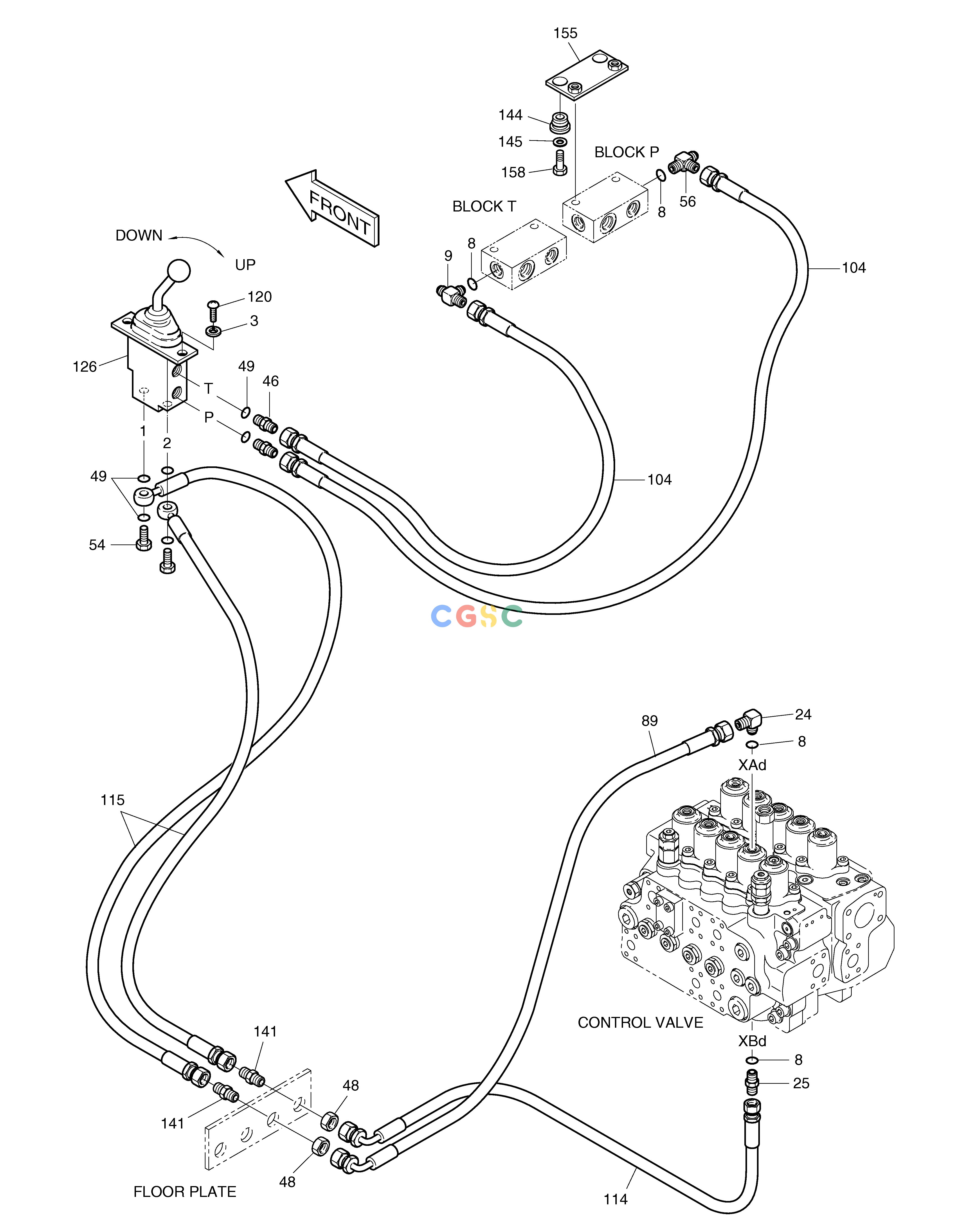

斗山零件查询PILOT PIPING(6) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
626 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01224
|
[-] |
PILOT PIPING
|
|
| -. |
420212-04712A
|
[-] |
|
|
| -. |
420212-04712B
|
[-] |
|
|
| 104. |
2184-1045D125
|
[2] |
HOSE PF1/4-1700L
|
|
| 114. |
2184-1046D221
|
[1] |
HOSE PF1/4-2050L
|
|
| 115. |
2184-9081
|
[2] |
HOSE PF1/4-1400L
|
|
| 120. |
S3450973
|
[2] |
SCREW M6X1.0X16
|
|
| 126. |
420-00377
|
[1] |
REMOTE CONTROL VALVE-DOZER
|
|
| 141. |
2181-2178
|
[2] |
ADAPTER
|
|
| 144. |
198-00016
|
[2] |
RUBBER
|
|
| 145. |
2114-1058D10
|
[2] |
WASHER
|
|
| 155. |
621-02151
|
[1] |
PLATE
|
|
| 158. |
S0512253
|
[2] |
BOLT M10X1.5X30
|
|
| 24. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 25. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 3. |
S5102303
|
[2] |
. WASHER
|
|
| 46. |
2181-1917D4
|
[2] |
ADAPTER
|
|
| 48. |
121-00006
|
[2] |
NUT
|
|
| 49. |
S8180211
|
[6] |
SEAL;RING
|
|
| 54. |
2120-1475
|
[2] |
BOLT;HOLLOW
|
|
| 56. |
2181-1951D7
|
[1] |
TEE
|
|
| 8. |
S8000141
|
[4] |
O-RING
|
|
| 89. |
2184-1046D73
|
[1] |
HOSE PF1/4-1900L
|
|
| 9. |
2181-2281D4
|
[1] |
TEE
|
|
