斗山零件查询PILOT PIPING(7) SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
294 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01224
|
[-] |

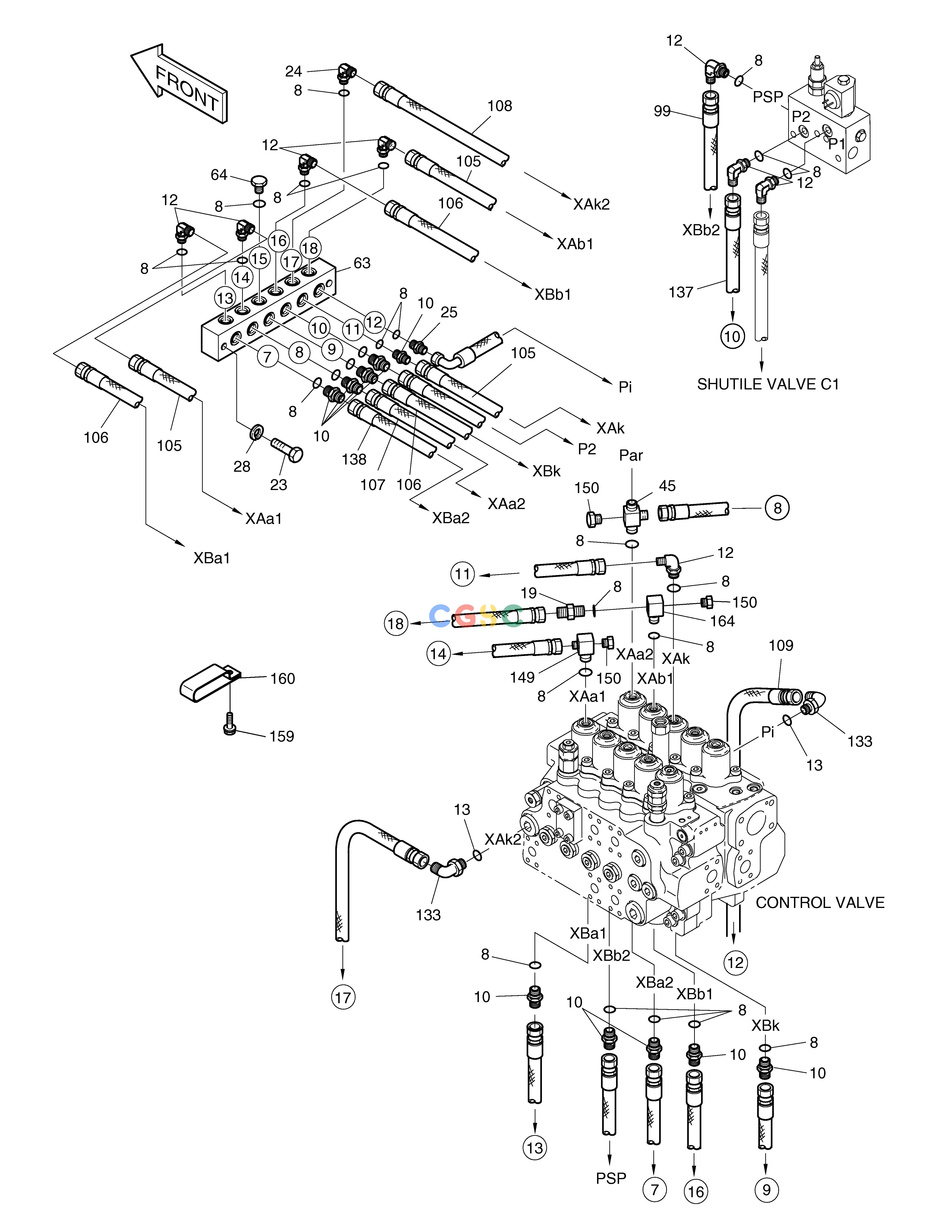

PILOT PIPING
|
|
| -. |
420212-04712A
|
[-] |
|
|
| -. |
420212-04712B
|
[-] |
|
|
| 10. |
2181-1126D7
|
[10] |
ADAPTER
|
|
| 105. |
2184-1045D214
|
[3] |
HOSE PF3/8-2300L
|
|
| 106. |
2184-1045D215
|
[3] |
HOSE PF3/8-2100L
|
|
| 107. |
DS2053749
|
[1] |
HOSE PF3/8-2400L
|
|
| 108. |
2184-1045D152
|
[1] |
HOSE PF1/4-2000L
|
|
| 109. |
2184-1046D146
|
[1] |
HOSE PF1/4-2250L
|
|
| 12. |
2181-1702D5
|
[8] |
ELBOW
|
|
| 13. |
S8000111
|
[2] |
O-RING
|
|
| 133. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 137. |
2184-1026D222
|
[1] |
HOSE PF3/8-3000L
|
|
| 138. |
2184-1045D238
|
[1] |
HOSE PF3/8-2150L
|
|
| 149. |
2181-2590D2
|
[1] |
ELBOW
|
|
| 150. |
2181-2047
|
[3] |
PLUG
|
|
| 159. |
120-00276
|
[2] |
BOLT M8X1.25X12
|
|
| 160. |
124-00208D8
|
[2] |
CLIP
|
|
| 164. |
DS2459002
|
[1] |
ELBOW PFO3/8-PF3/8
|
|
| 19. |
181-00144D4
|
[1] |
ADAPTER;ORIFICE
|
|
| 23. |
S0512953
|
[2] |
BOLT M10X1.5X65
|
|
| 24. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 25. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 28. |
S5102603
|
[2] |
. WASHER
|
|
| 45. |
DS2462002
|
[1] |
TEE PFO3/8-PF3/8-PF1/4
|
|
| 63. |
2423-1550
|
[1] |
BLOCK
|
|
| 64. |
2181-1950D2
|
[1] |
PLUG
|
|
| 8. |
S8000141
|
[25] |
O-RING
|
|
| 99. |
2184-1045D250
|
[1] |
HOSE PF3/8-1350L
|
|
