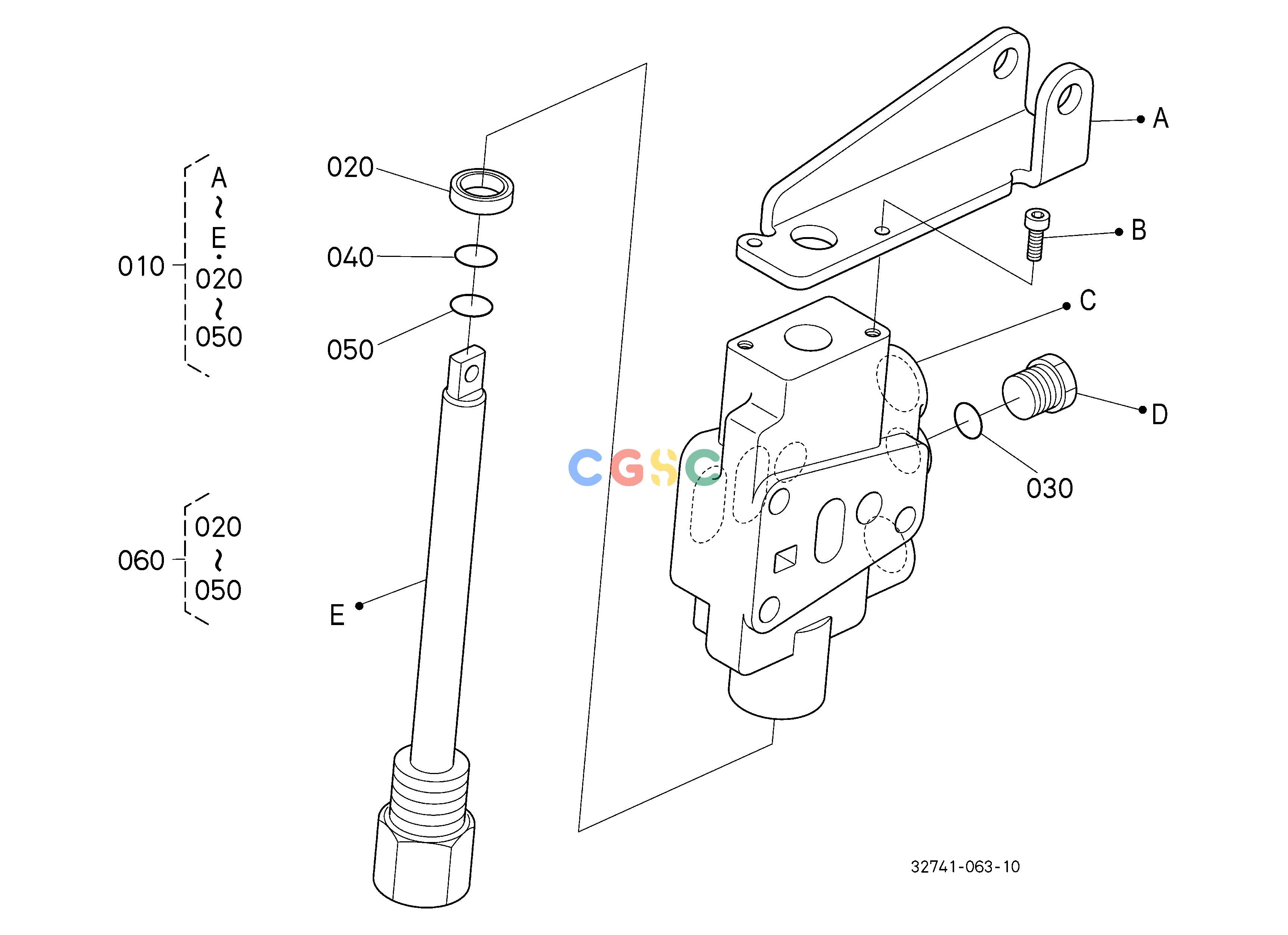

久保田零件查询U94101 AUXILIARY CONTROL VALVE [COMP.PARTS] (W/G No.B8028) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
181 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YW37800100
|
[1] |
ASSY VALVE,AUX.CON.
|
4.0480(lbs); 1.840
|
| 010. |
YW37800102
|
[1] |
ASSY VALVE,AUX.CON.
|
4.0480(lbs); 1.840
|
| 020. |
YW07700610
|
[1] |
SEAL,DUST
|
0.0022(lbs); 0.001
|
| 030. |
0481700100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
3407666250
|
[1] |
RING,BACK UP
|
0.0022(lbs); 0.001
|
| 050. |
0481700140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
YW37891110
|
[1] |
KIT SEAL
|
0.0044(lbs); 0.002
|
