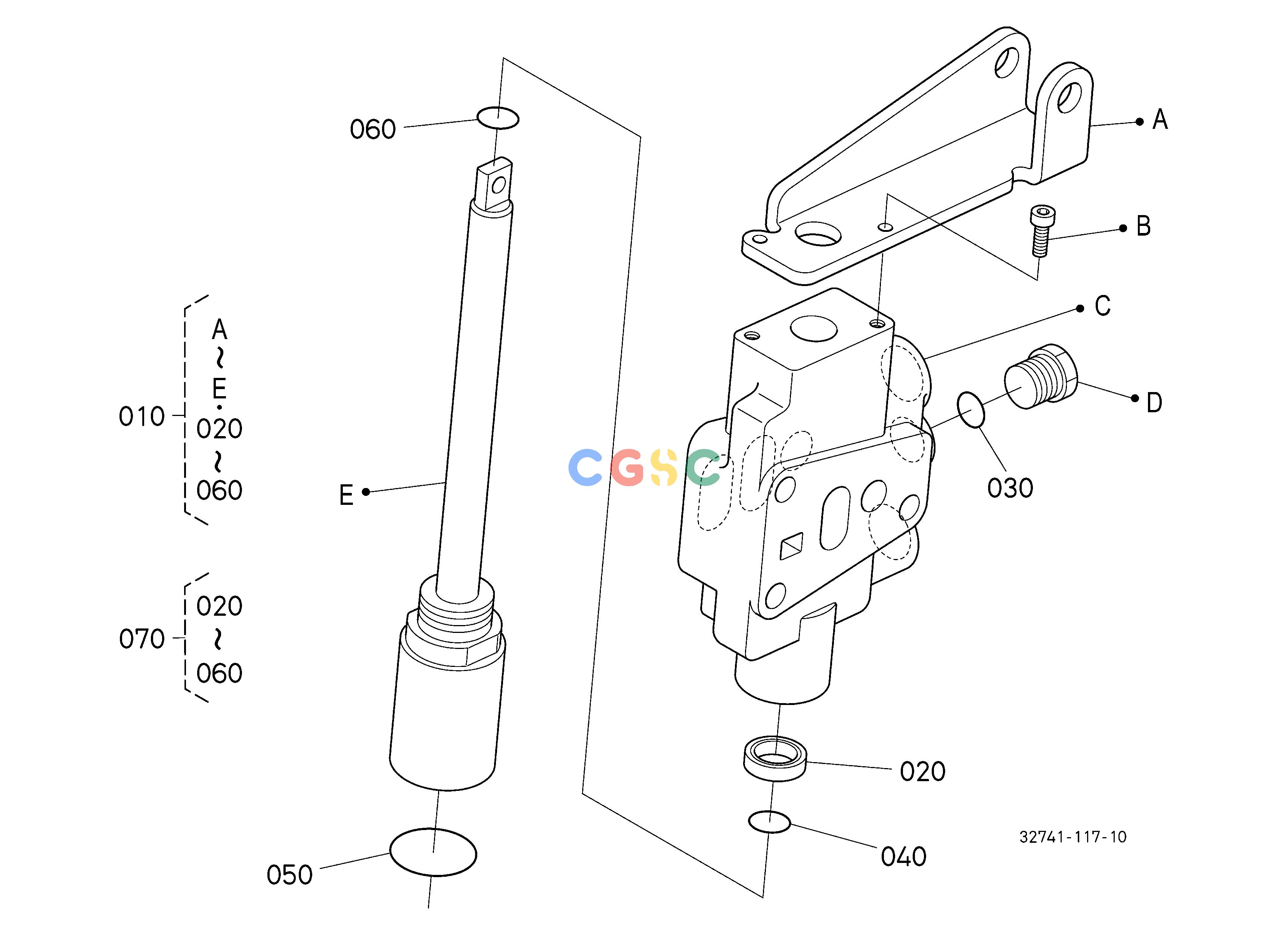

久保田零件查询U94102 AUX. CONTROL VALVE (FLOATING) [COMP. PARTS] (W/G No.B8029) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
416 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YW37700100
|
[1] |
ASSY VALVE,AUX.CON.
|
4.5760(lbs); 2.080
|
| 010. |
YW37700102
|
[1] |
ASSY VALVE,AUX.CON.
|
4.5760(lbs); 2.080
|
| 010. |
YW37700103
|
[1] |
ASSY VALVE,AUX.CON.
|
4.5760(lbs); 2.080
|
| 020. |
YW07700610
|
[1] |
SEAL,DUST
|
0.0022(lbs); 0.001
|
| 030. |
0481700100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0481700140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481706250
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
3407666250
|
[1] |
RING,BACK UP
|
0.0022(lbs); 0.001
|
| 070. |
YW37791110
|
[1] |
KIT,SEAL
|
0.0660(lbs); 0.030
|
