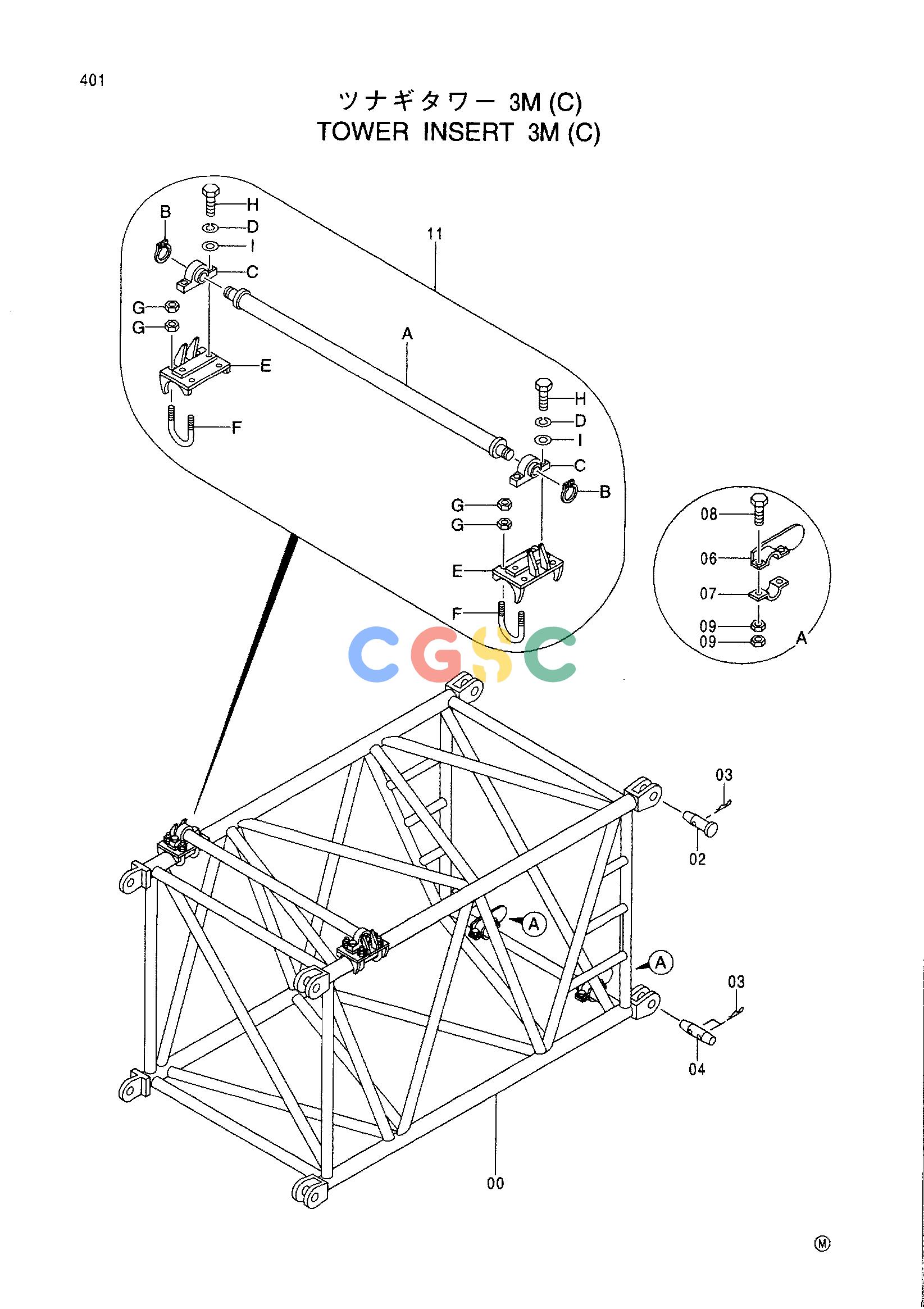

日立零件查询（CX1000）TOWER INSERT 3M (C) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
482 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9162878 | [1] | TOWER INSERT 3M(C) | |
| 00. | 6016712 | [1] | BOOM;INSERT | |
| 02. | 4046619 | [2] | PIN | |
| 03. | 4043750 | [6] | PIN;LOCK | |
| 04. | 4112797 | [2] | PIN | |
| 06. | 9748475 | [2] | STOPPER | |
| 07. | 4386982 | [2] | CLAMP;PIPE | |
| 08. | J901030 | [4] | BOLT | |
| 09. | J950010 | [8] | NUT | |
| 11. | 9152747 | [1] | ROLLER;GUIDE | |
| 11A. | 9749356 | [1] | ROLLER | |
| 11B. | 991342 | [2] | RING;RETAINING | |
| 11C. | 4420385 | [2] | BRG.;UNIT | |
| 11D. | A590914 | [4] | WASHER;SPRING | |
| 11E. | 8071630 | [2] | BRACKET | |
| 11F. | 4170580 | [4] | BOLT;U | |
| 11G. | J950012 | [16] | NUT | |
| 11H. | J901440 | [4] | BOLT | |
| 11I. | A590114 | [4] | WASHER;PLANE | |
