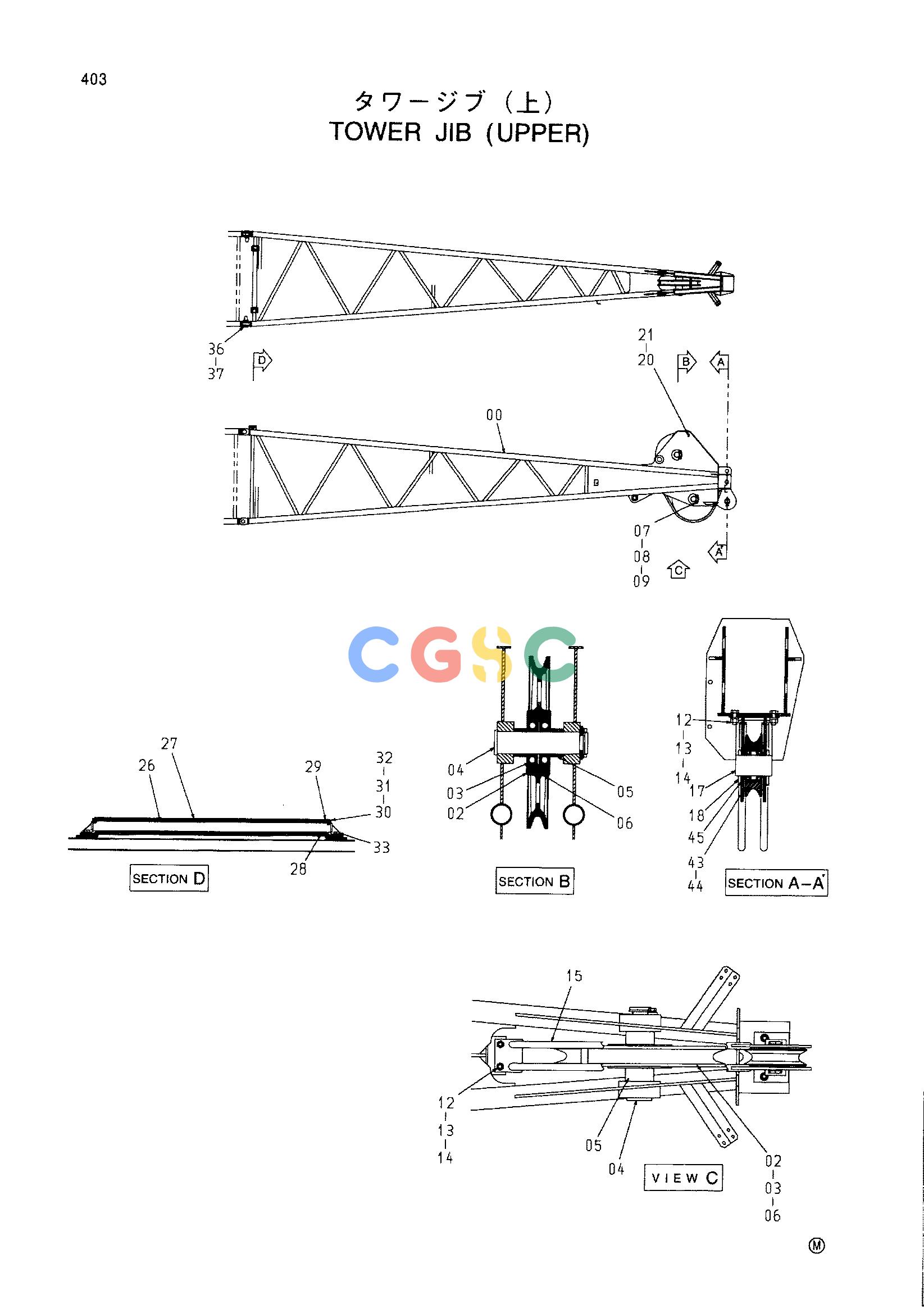

日立零件查询（CX1000）TOWER JIB (UPPER) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
1013 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 5005557 | [1] | JIB;UPPER | |
| 02. | 3081859 | [2] | SHEAVE | |
| 03. | 4129305 | [4] | BRG.;BALL | |
| 04. | 4118743 | [2] | PIN | |
| 05. | 4118744 | [4] | SPACER | |
| 06. | J75481 | [2] | FITTING;GREASE | |
| 07. | X4247 | [2] | PLATE;LOCK | |
| 08. | J901625 | [4] | BOLT | |
| 09. | A590916 | [4] | WASHER;SPRING | |
| 12. | J901640 | [4] | BOLT | |
| 13. | A590916 | [4] | WASHER;SPRING | |
| 14. | J950016 | [4] | NUT | |
| 15. | 8069885 | [1] | GUIDE;ROPE | |
| 17. | 4191660 | [1] | PIN | |
| 18. | A761000 | [2] | PIN;SPLIT | |
| 20. | 4191662 | [1] | PIN | |
| 21. | A765028 | [2] | PIN;SPLIT | |
| 26. | 4091744 | [1] | AXLE | |
| 27. | 4066775 | [1] | ROLLER | |
| 28. | 4080992 | [2] | BRG.;NEEDLE | |
| 29. | 8014797 | [2] | BRACKET | |
| 30. | X280071 | [2] | PLATE;LOCK | |
| 31. | J900814 | [4] | BOLT | |
| 32. | A590908 | [4] | WASHER;SPRING | |
| 33. | J011225 | [4] | BOLT;SEMS | |
| 36. | 4020735 | [2] | PIN | |
| 37. | 3002554 | [2] | PIN;LOCK | |
| 43. | 4389313 | [1] | ROLLER | |
| 44. | 4163030 | [2] | BRG.;BALL | |
| 45. | 4400015 | [2] | SPACER | |
