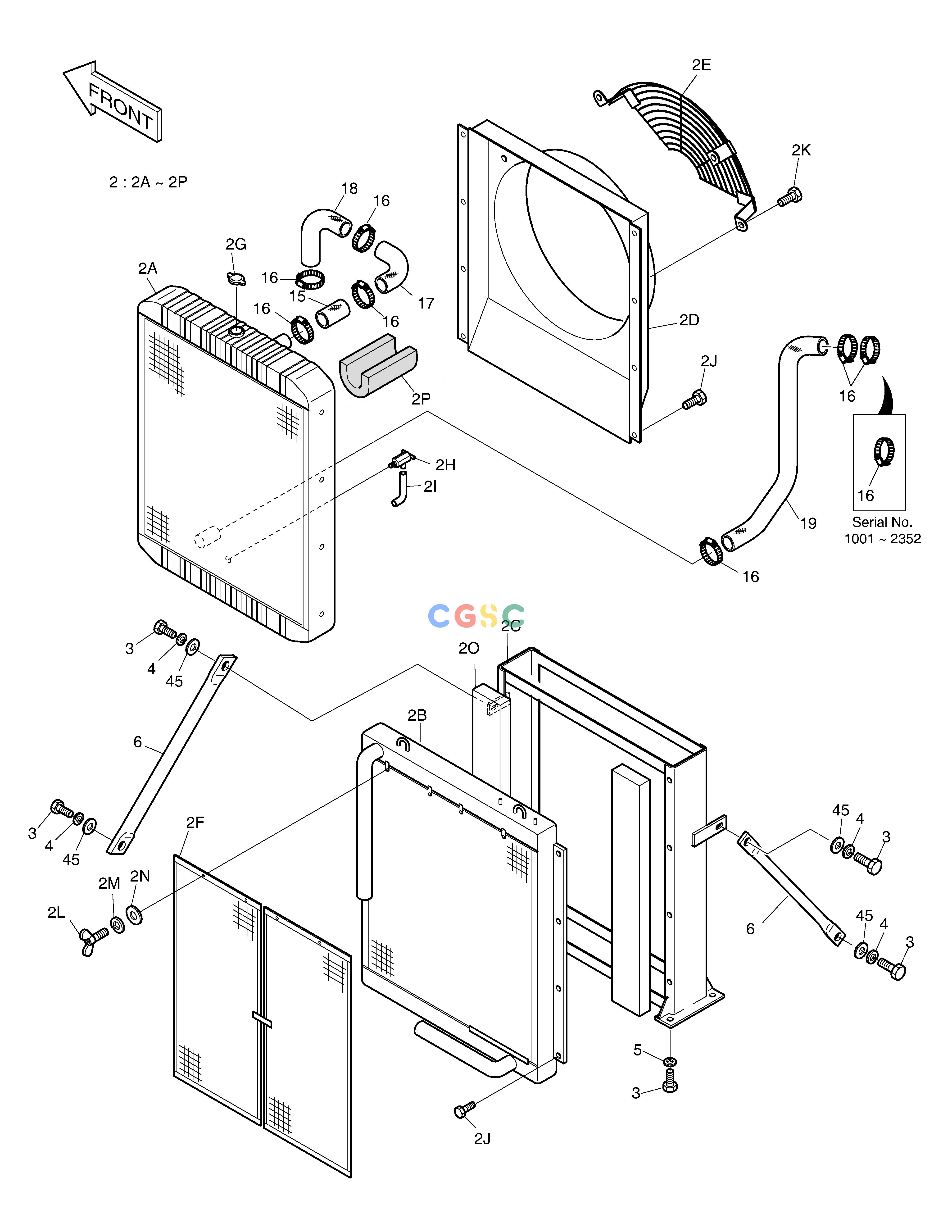

斗山零件查询RADIATOR SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
577 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00628
|
[-] |
|
|
| -. |
201-00168A
|
[-] |
ENGINE ASS'Y
|
|
| 15. |
2185-1316
|
[1] |
HOSE;WATER
|
|
| 16. |
S8450053
|
[6] |
CLAMP;HOSE
|
|
| 16. |
S8500079
|
[7] |
CLAMP
|
|
| 17. |
2182-1574
|
[1] |
PIPE;WATER
|
|
| 18. |
2185-1717
|
[1] |
HOSE;WATER
|
|
| 19. |
2185-1718A
|
[1] |
HOSE;WATER
|
|
| 2. |
2202-9082C
|
[1] |
RADIATOR ASS'Y
|
|
| 2A. |
13B81000A
|
[1] |
RADIATOR ASS'Y
|
|
| 2B. |
13B82000
|
[1] |
OIL COOLER ASS'Y
|
|
| 2C. |
13G83000
|
[1] |
FRAME ASS'Y
|
|
| 2D. |
13G84000
|
[1] |
SHROUD
|
|
| 2E. |
13B85000A
|
[1] |
FAN GUARD
|
|
| 2F. |
13B86000
|
[2] |
NET;WIRE
|
|
| 2G. |
P06
|
[1] |
CAP
|
|
| 2H. |
P04
|
[1] |
DRAIN COCK ASS'Y
|
|
| 2I. |
P03
|
[1] |
HOSE;DRAIN
|
|
| 2J. |
P1110
|
[26] |
BOLT M10X1.25X25
|
|
| 2K. |
P1108
|
[3] |
BOLT M8X1.25X20
|
|
| 2L. |
P1106
|
[4] |
BOLT;WING M6X1.0X15
|
|
| 2M. |
P1306
|
[4] |
WASHER;PLAIN
|
|
| 2N. |
P1406
|
[4] |
WASHER;SPRING
|
|
| 2O. |
P22A
|
[2] |
SPONGE-A
|
|
| 2P. |
P22B
|
[1] |
SPONGE-B
|
|
| 3. |
S0565066
|
[8] |
BOLT M16X2.0X40
|
|
| 4. |
S5102903
|
[4] |
WASHER
|
|
| 45. |
S5010913
|
[4] |
WASHER
|
|
| 5. |
2114-1816A
|
[4] |
WASHER
|
|
| 6. |
2145-1244A
|
[2] |
STAY
|
|
