| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

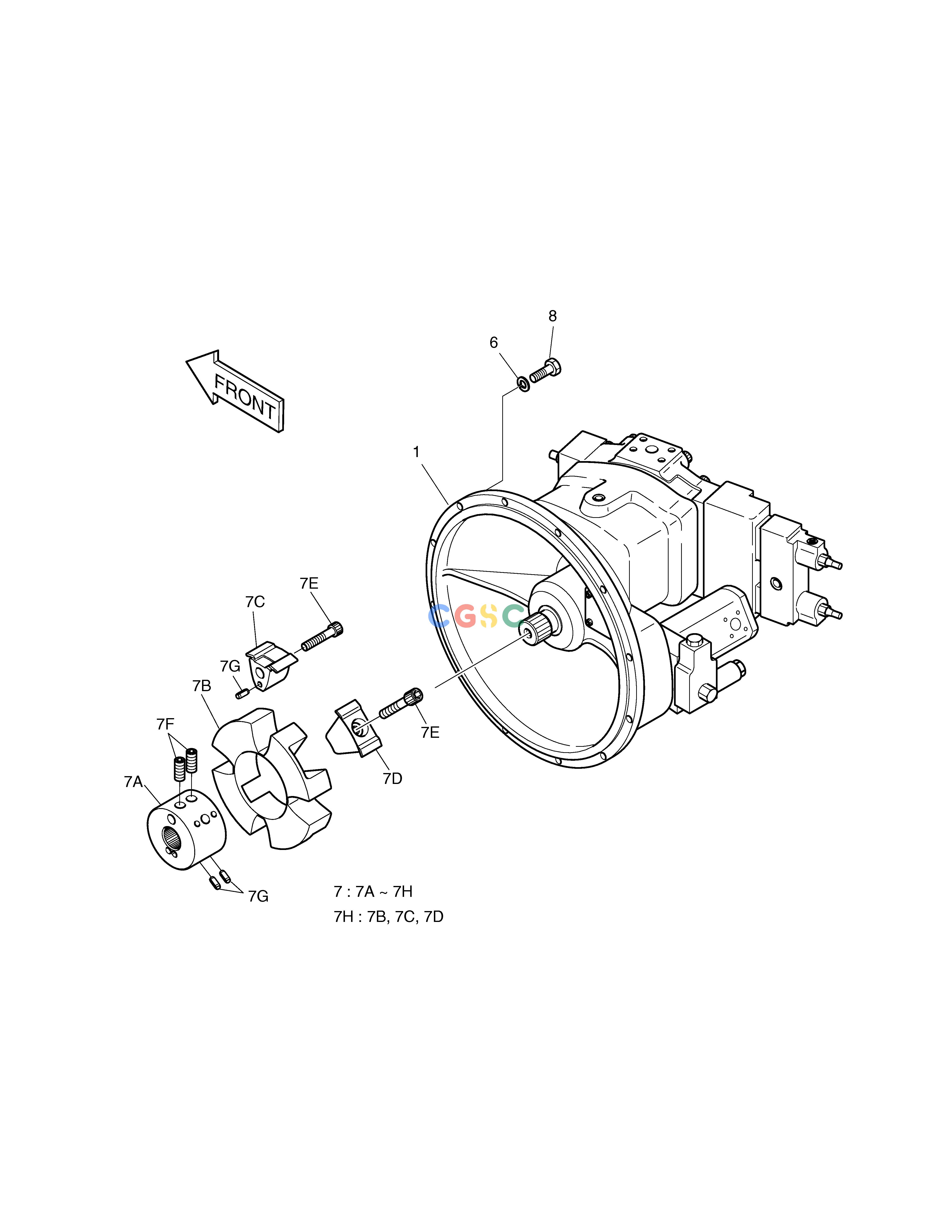

| -. | 401-00388 | [-] | PUMP INSTALLATION | |
| 1. | 401-00379 | [1] | PUMP | |
| 6. | S5102603 | [12] | . WASHER | |
| 7. | 414-00047 | [1] | COUPLING | |
| 7A. | NA00546 | [1] | HUB | |
| 7B. | 2474-7009 | [1] | ELEMENT | |
| 7C. | NA00559 | [4] | . INSERT | |
| 7D. | NA00561 | [4] | . INSERT | |
| 7E. | K9000422 | [1] | SOCKET BOLT SET(8EA) | |
| 7F. | NA00140 | [2] | ||
| 7G. | NA00781 | [12] | ||
| 7H. | 2474-7009K | [1] | ELEMENT KIT | |
| 8. | S0558153 | [12] | BOLT |
