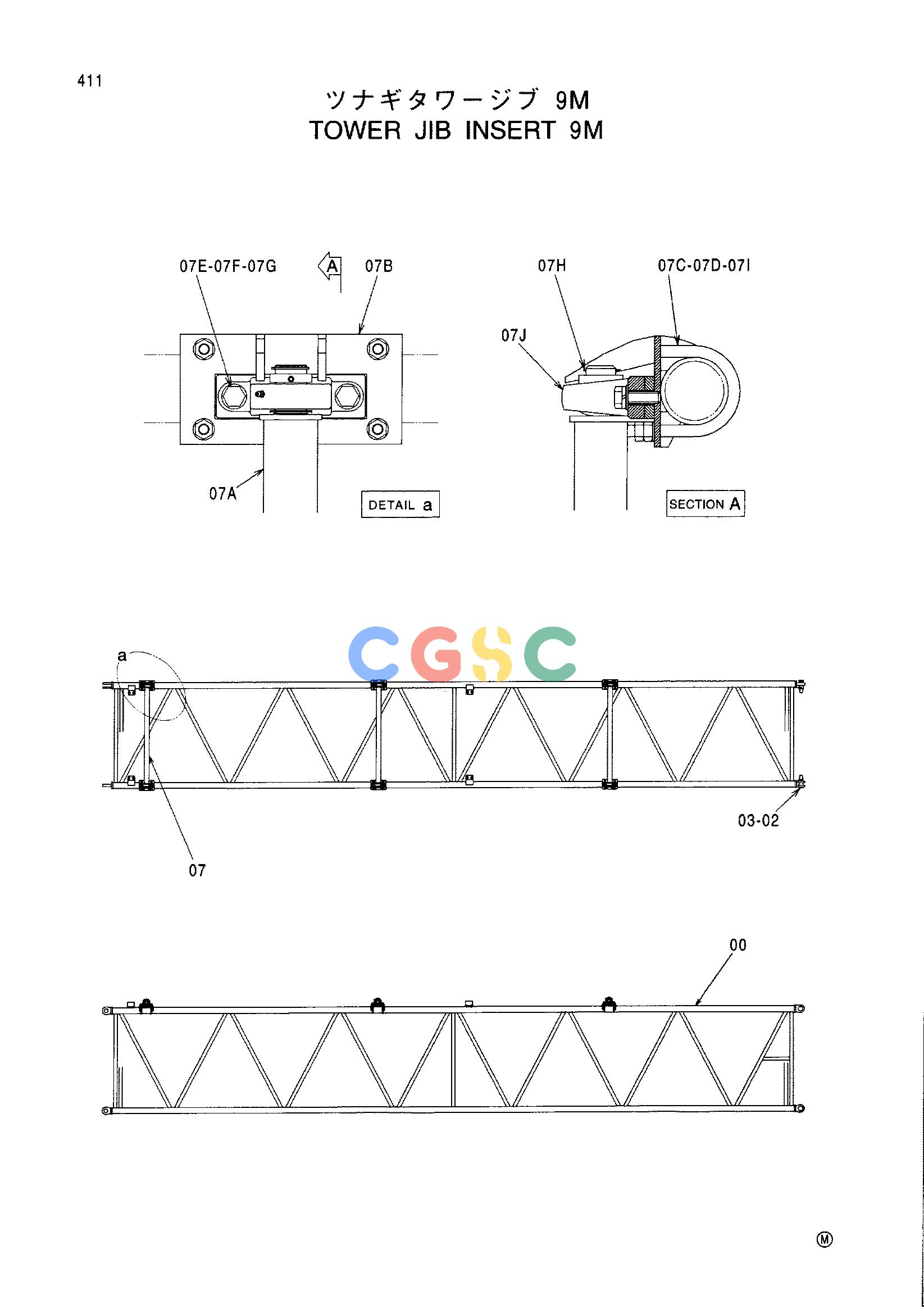

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9166616 | [1] | TOWER JIB INSERT ASS'Y | |
| 00. | 6016906 | [1] | BOOM;INSERT | |
| 02. | 4020735 | [4] | PIN | |
| 03. | 3002554 | [4] | PIN;LOCK | |
| 07. | 9177274 | [3] | GUIDE ROLLER | |
| 07A. | 9750392 | [1] | ROLLER | |
| 07B. | 8072476 | [2] | BRACKET | |
| 07C. | 4213163 | [4] | BOLT;U | |
| 07D. | J950012 | [16] | NUT | |
| 07E. | J901440 | [4] | BOLT | |
| 07F. | A590914 | [4] | WASHER;SPRING | |
| 07G. | A590114 | [4] | WASHER;PLANE | |
| 07H. | 991342 | [2] | RING;RETAINING | |
| 07I. | A590112 | [8] | WASHER;PLANE | |
| 07J. | 4420385 | [2] | BRG. ;UNIT | |
