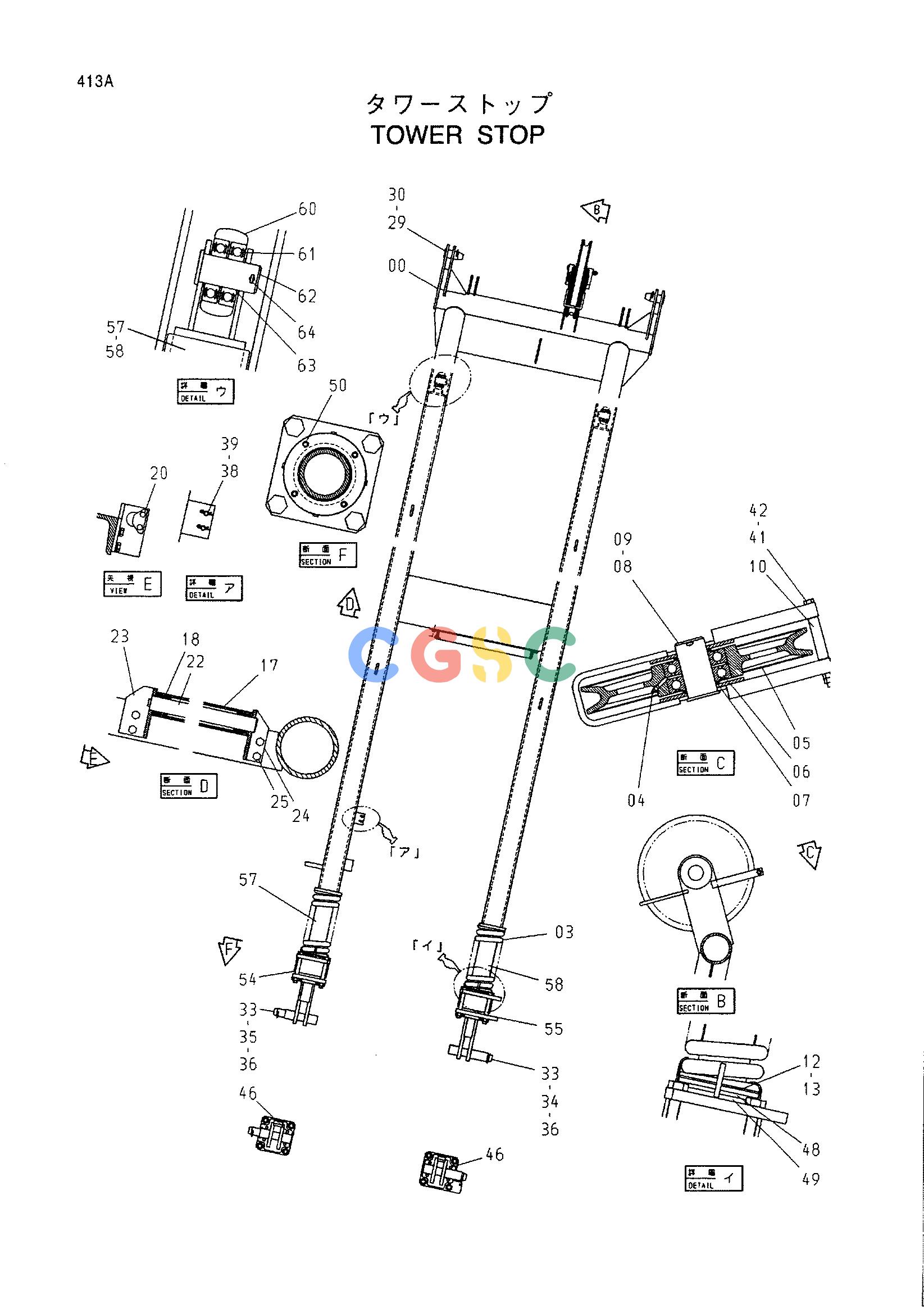

日立零件查询（CX1000）TOWER STOP Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
397 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 6016412 | [1] | STOPPER;OUTER | |
| 03. | 4387984 | [2] | SPRING | |
| 04. | J75481 | [1] | FITTING;GREASE | |
| 05. | 3081859 | [1] | SHEAVE | |
| 06. | 4129305 | [2] | BRG. ;BALL | |
| 07. | 4026536 | [2] | SPACER | |
| 08. | 4239827 | [1] | PIN | |
| 09. | A761002 | [1] | PIN;SPLIT | |
| 10. | 4118821 | [1] | SPACER | |
| 12. | 4387958 | [12] | SHIM 4.5 | |
| 13. | 4387959 | [12] | SHIM 12 | |
| 14. | 4387968 | [8] | PLATE | |
| 17. | 4163260 | [1] | ROLLER | |
| 18. | 4142688 | [2] | BUSHING | |
| 20. | J010814 | [2] | BOLT;SEMS | |
| 22. | 9720896 | [1] | PIN | |
| 23. | 4192492 | [1] | BRACKET | |
| 24. | 4192493 | [1] | BRACKET | |
| 25. | J011225 | [4] | BOLT;SEMS | |
| 29. | 4062839 | [2] | PIN | |
| 30. | 4043750 | [2] | PIN;LOCK | |
| 33. | 4387183 | [2] | PIN | |
| 34. | 4387187 | [1] | SPACER | |
| 35. | 4387186 | [1] | SPACER | |
| 36. | 3002554 | [2] | PIN;LOCK | |
| 38. | 4387960 | [2] | PIN | |
| 39. | 4022698 | [4] | PIN;LOCK | |
| 41. | J901618 | [1] | BOLT | |
| 42. | J950016 | [2] | NUT | |
| 46. | J011250 | [8] | BOLT;SEMS | |
| 48. | 4383720 | [2] | SPACER | |
| 49. | 9748494 | [2] | SPACER | |
| 50. | J010625 | [8] | BOLT;SEMS | |
| 54. | 4400092 | [1] | SPRING (L) | |
| 55. | 4400101 | [1] | SPRING (R) | |
| 57. | 7041275 | [1] | STOPPER;INNER (L) | |
| 58. | 7041309 | [1] | STOPPER;INNER (R) | |
| 60. | 4427847 | [2] | ROLLER | |
| 61. | 4099848 | [4] | BRG. ;BALL | |
| 62. | 4427593 | [2] | PIN | |
| 63. | 4427842 | [4] | SPACER | |
| 64. | A768071 | [2] | PIN;SPLIT | |
