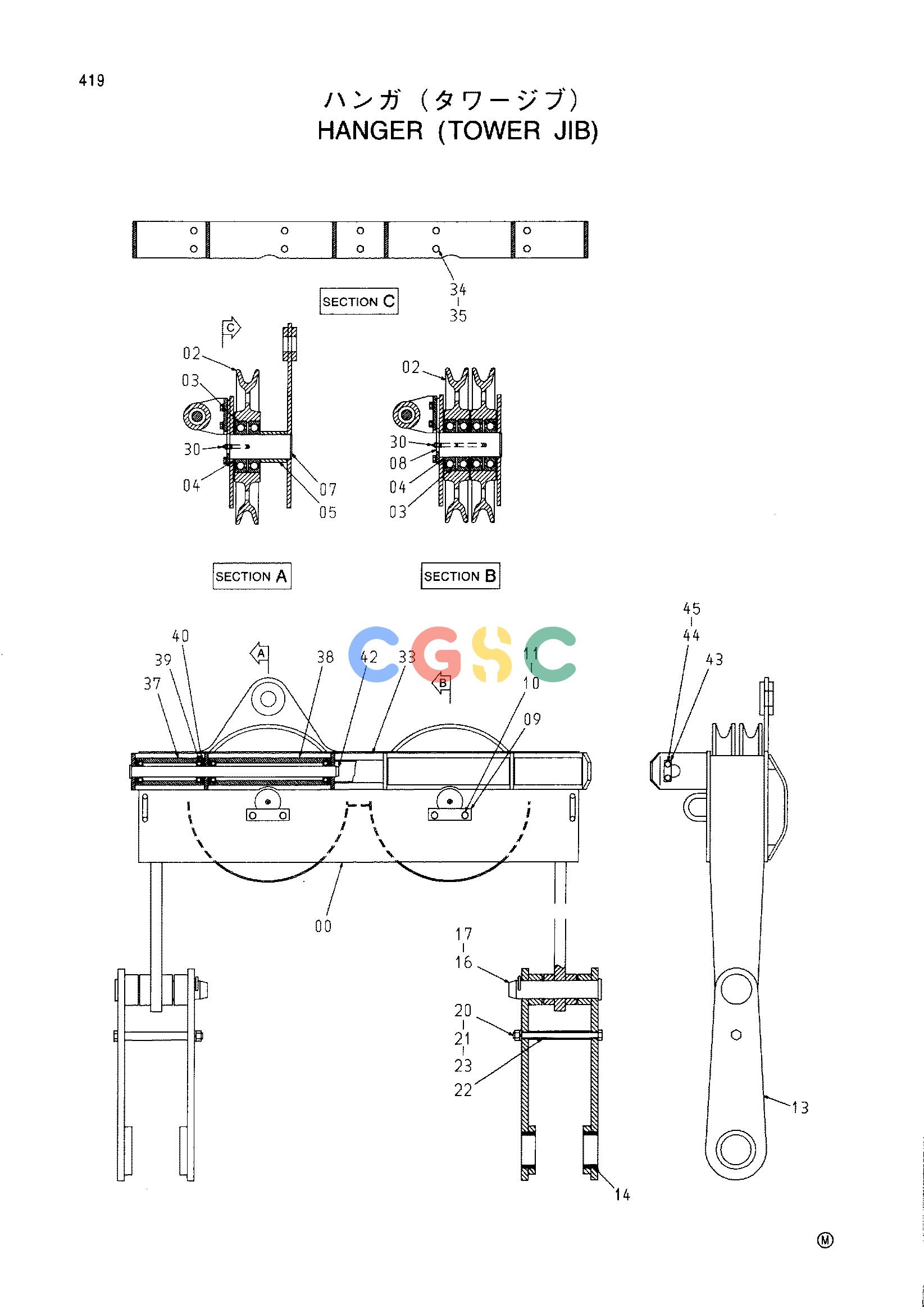

日立零件查询（CX1000）HANGER (TOWER JIB) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
208 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9207792 | [1] | HANGER ASS'Y | |
| 00. | 6016411 | [1] | HANGER | |
| 02. | 3081262 | [3] | SHEAVE | |
| 03. | 4129305 | [6] | BRG.;BALL | |
| 04. | 4132633 | [4] | SPACER | |
| 05. | 4132632 | [1] | SPACER | |
| 07. | 4239420 | [1] | PIN | |
| 08. | 4239421 | [1] | PIN | |
| 09. | 4135186 | [2] | PLATE | |
| 10. | J901225 | [4] | BOLT | |
| 11. | A590912 | [4] | WASHER;SPRING | |
| 13. | 9748493 | [4] | LINK | |
| 14. | 4387181 | [4] | BUSHING | |
| 16. | 4387182 | [2] | PIN | |
| 17. | 4104868 | [2] | PIN;LOCK | |
| 20. | J932023 | [2] | BOLT | |
| 21. | A590920 | [2] | WASHER;SPRING | |
| 22. | 4387185 | [2] | SPACER | |
| 23. | J951020 | [2] | NUT | |
| 30. | J75482 | [2] | FITTING;GREASE | |
| 33. | 8038271 | [1] | BRACKET | |
| 34. | J901235 | [10] | BOLT | |
| 35. | A590912 | [10] | WASHER;SPRING | |
| 37. | 4053736 | [2] | ROLLER;GUIDE | |
| 38. | 4201775 | [2] | ROLLER | |
| 39. | 971195 | [8] | BRG.;BALL | |
| 40. | 940144 | [8] | RING;RETAINING | |
| 42. | 4201776 | [2] | PIN | |
| 43. | X4245 | [2] | PLATE;LOCK | |
| 44. | J901016 | [4] | BOLT | |
| 45. | A590910 | [4] | WASHER;SPRING | |
