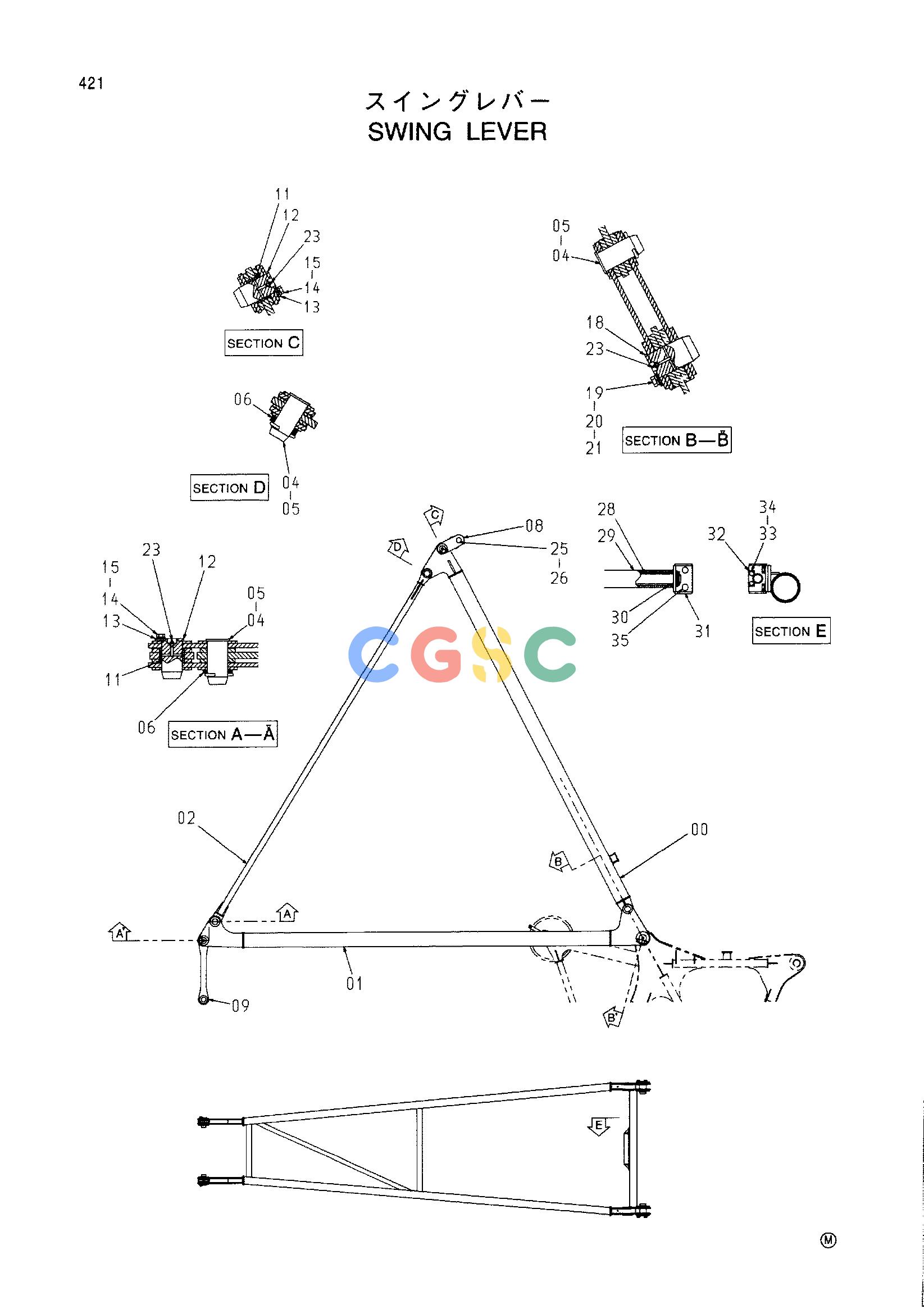

日立零件查询（CX1000）SWING LEVER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
831 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 6016406 | [1] | LEVER | |
| 01. | 6020092 | [1] | LEVER | |
| 02. | 8069393 | [2] | STAY | |
| 04. | 4239491 | [6] | PIN | |
| 05. | A761000 | [6] | PIN;SPLIT | |
| 06. | 4239492 | [6] | SPACER | |
| 08. | 8069391 | [2] | LINK | |
| 09. | 8069392 | [2] | LINK | |
| 11. | 4239495 | [4] | BUSHING | |
| 12. | 4239496 | [4] | PIN | |
| 13. | X4247 | [4] | PLATE;LOCK | |
| 14. | J901630 | [8] | BOLT | |
| 15. | A590916 | [8] | WASHER;SPRING | |
| 18. | 4239498 | [2] | PIN | |
| 19. | X4248 | [2] | PLATE;LOCK | |
| 20. | J932035 | [4] | BOLT | |
| 21. | A590920 | [4] | WASHER;SPRING | |
| 23. | J75481 | [6] | FITTING;GREASE | |
| 25. | 4062839 | [2] | PIN | |
| 26. | A761000 | [2] | PIN;SPLIT | |
| 28. | 4388220 | [1] | AXLE | |
| 29. | 4388222 | [1] | ROLLER | |
| 30. | 4080992 | [2] | BRG.;NEEDLE | |
| 31. | 8014797 | [2] | BRACKET | |
| 32. | X280071 | [2] | PLATE;LOCK | |
| 33. | J900814 | [4] | BOLT | |
| 34. | A590908 | [4] | WASHER;SPRING | |
| 35. | J011225 | [4] | BOLT;SEMS | |
