斗山零件查询STEERING PIPING SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
281 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

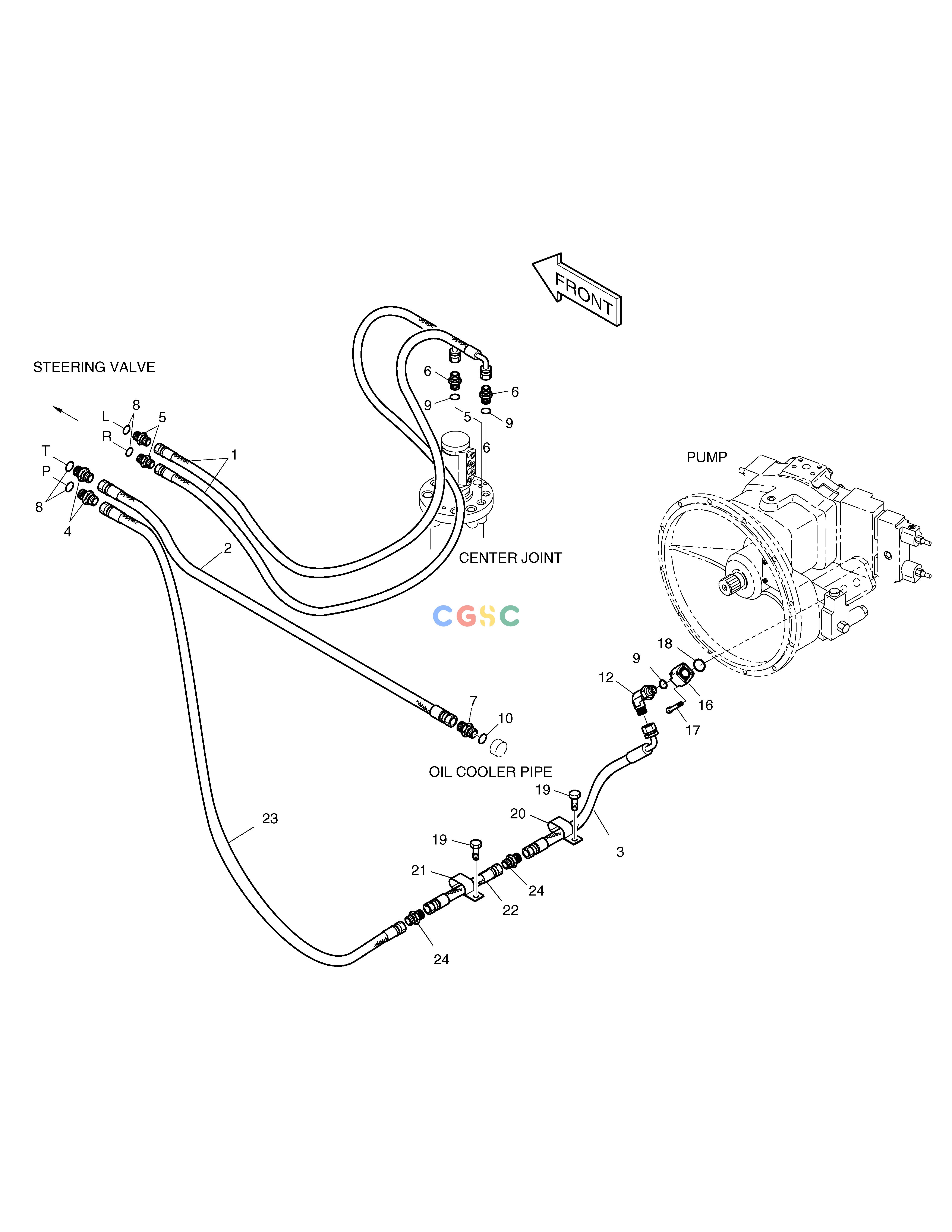

400-01225
|
[-] |
STEERING PIPING
|
|
| 1. |
2184-1036D223
|
[2] |
HOSE PF3/8-1900L
|
|
| 10. |
S8000181
|
[1] |
O-RING
|
|
| 12. |
2181-1702D13
|
[1] |
ELBOW
|
|
| 16. |
423-00168
|
[1] |
BLOCK
|
|
| 17. |
S2205066
|
[4] |
BOLT
|
|
| 18. |
S8030121
|
[1] |
O-RING
|
|
| 19. |
120-00276
|
[2] |
BOLT M8X1.25X12
|
|
| 2. |
2184-1026D368
|
[1] |
HOSE PF1/2-2000L
|
|
| 20. |
124-00208D4
|
[1] |
CLIP
|
|
| 21. |
124-00208D7
|
[1] |
CLIP
|
|
| 22. |
DS2053780
|
[1] |
HOSE 300L
|
|
| 23. |
2184-1026D259
|
[1] |
HOSE PF1/2-2580L
|
|
| 24. |
DS2410008
|
[2] |
ADAPTER
|
|
| 3. |
DS2055333
|
[1] |
HOSE PF1/2-1100L
|
|
| 4. |
2181-1126D92
|
[2] |
ADAPTER
|
|
| 5. |
2181-1126D8
|
[2] |
ADAPTER
|
|
| 6. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 7. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 8. |
2180-1026D13
|
[4] |
O-RING
|
|
| 9. |
S8000141
|
[3] |
O-RING
|
|
