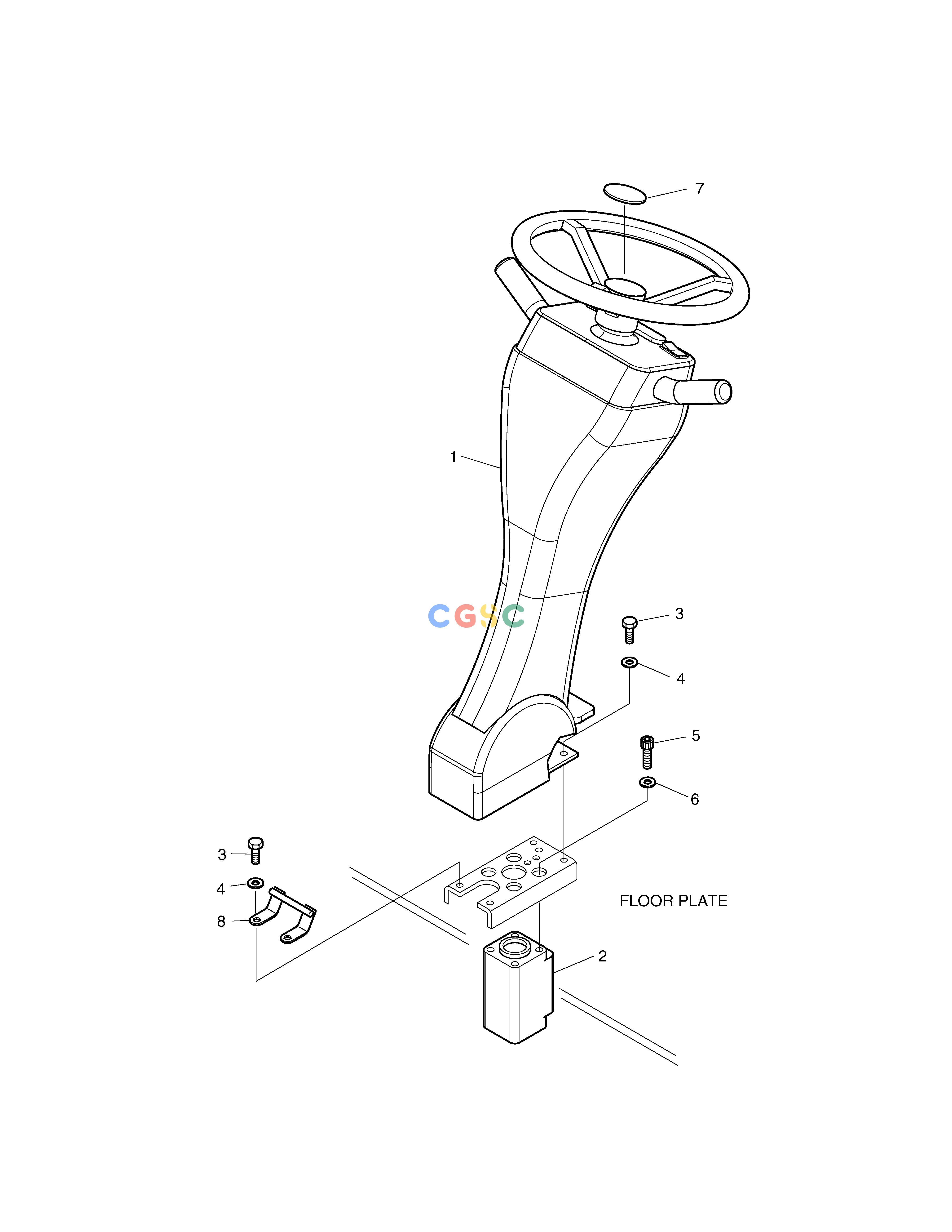

斗山零件查询STEERING WHEEL ASS'Y SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
903 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300-00019
|
[-] |
STEERING WHEEL ASS'Y
|
|
| -. |
190109-00018
|
[-] |
|
|
| -. |
190109-00018A
|
[-] |
|
|
| 1. |
303-00010
|
[1] |
COLUMN ASS'Y
|
190108-00008
|
| 1. |
190108-00008
|
[1] |
|
190108-00008A
|
| 1. |
190108-00008A
|
[1] |
|
|
| 2. |
422-00021A
|
[1] |
VALVE;STEER
|
|
| 3. |
S0512053
|
[4] |
BOLT
|
|
| 4. |
S5010613
|
[4] |
WASHER
|
|
| 5. |
S2212066
|
[4] |
BOLT
|
|
| 6. |
S5110603
|
[4] |
WASHER
|
|
| 7. |
190-00138
|
[1] |
PLATE;NAME
|
K1011741
|
| 7. |
K1011741
|
[1] |
PLATE;NAME
|
|
| 8. |
195-02627
|
[1] |
BRACKET
|
|
