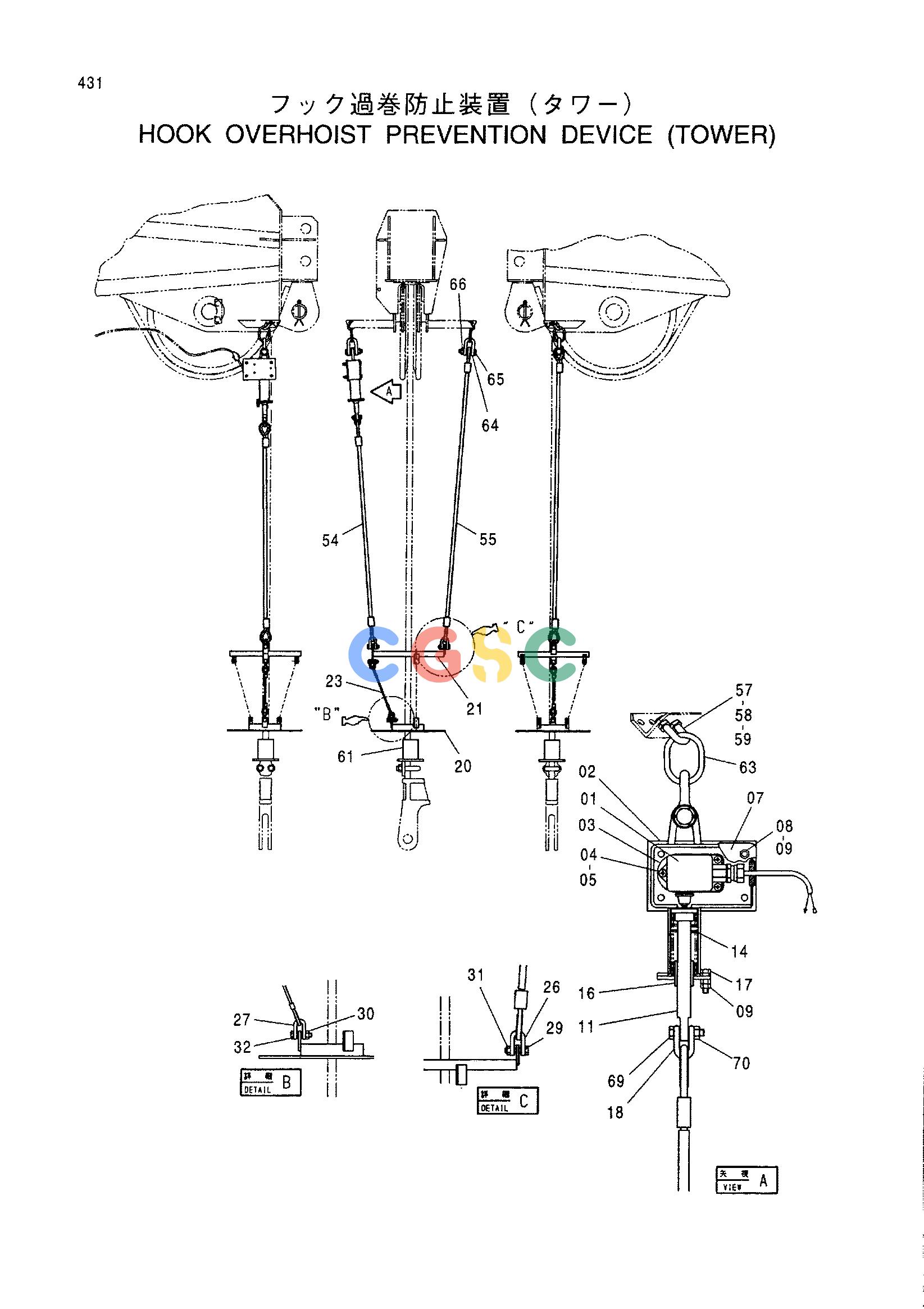

日立零件查询（CX1000）HOOK OVERHOIST PREVENTION DEVICE (TOWER) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
576 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9165788 | [1] | HOOK LIMITER ASS'Y | |
| 01-1. | 9170951 | [1] | SWITCH ASS'Y | |
| 01. | 4250376 | [1] | SWITCH;LIMIT | |
| 02. | 8072520 | [1] | BOX;SWITCH | |
| 03. | 4205194 | [1] | PLATE | |
| 04. | M430640 | [3] | SCREW | |
| 05. | A590906 | [3] | WASHER;SPRING | |
| 07. | 4336527 | [1] | COVER | |
| 08. | J900890 | [4] | BOLT | |
| 09. | M500807 | [14] | NUT | |
| 11. | 4323210 | [1] | STRIKER | |
| 14. | 4240874 | [1] | SPRING | |
| 16. | 9750389 | [1] | COVER | |
| 17. | J900830 | [3] | BOLT | |
| 18. | 4048478 | [1] | SHACKLE | |
| 20-3. | 9160282 | [1] | WEIGHT ASS'Y | |
| 20. | 8068677 | [1] | WEIGHT | |
| 21. | 8068676 | [1] | WEIGHT | |
| 23. | 9743352 | [3] | ROPE;PENDANT | |
| 26. | 4048479 | [2] | SHACKLE | |
| 27. | 4048478 | [6] | SHACKLE | |
| 29. | J901250 | [2] | BOLT | |
| 30. | M660010 | [6] | NUT;U | |
| 31. | M660012 | [2] | NUT;U | |
| 32. | J901045 | [6] | BOLT | |
| 54. | 9748206 | [1] | ROPE;PENDANT | |
| 55. | 9748207 | [1] | ROPE;PENDANT | |
| 57. | 4157548 | [2] | BOLT;U | |
| 58. | M660010 | [4] | NUT;U | |
| 59. | J950010 | [4] | NUT | |
| 61. | 9748976 | [1] | STRIKER | |
| 63. | 4291458 | [2] | LINK | |
| 64. | 4048481 | [2] | SHACKLE | |
| 65. | J901675 | [2] | BOLT | |
| 66. | M660016 | [2] | NUT;U | |
| 69. | J901045 | [1] | BOLT | |
| 70. | M660010 | [1] | NUT;U | |
