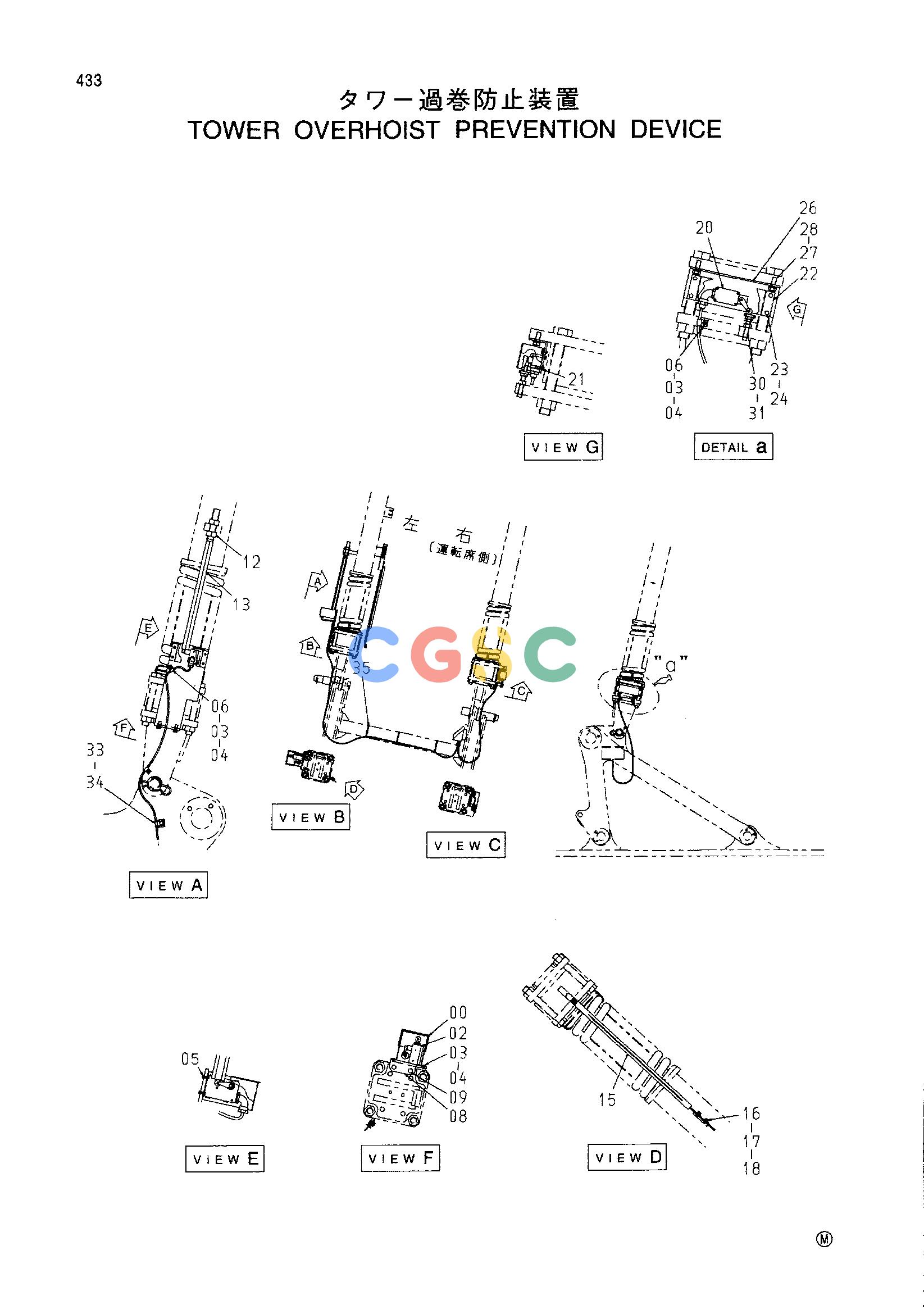

日立零件查询（CX1000）TOWER OVERHOIST PREVENTION DEVICE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
688 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 9722655 | [1] | COVER | |
| 02. | 4388747 | [1] | SWITCH;LIMIT | |
| 03. | M430613 | [8] | SCREW | |
| 04. | A590906 | [8] | WASHER;SPRING | |
| 05. | J450516 | [2] | SCREW;SEMS | |
| 06. | 4000855 | [4] | CLIP;PIPE | |
| 08. | 4407148 | [1] | BRACKET | |
| 09. | J011228 | [2] | BOLT;SEMS | |
| 12. | 4165434 | [1] | ROD | |
| 13. | J953030 | [2] | NUT | |
| 15. | 9747465 | [1] | INDICATOR | |
| 16. | J901018 | [2] | BOLT | |
| 17. | A590910 | [2] | WASHER;SPRING | |
| 18. | A590110 | [2] | WASHER;PLANE | |
| 20. | 4388750 | [1] | SWITCH;LIMIT | |
| 21. | J450620 | [4] | SCREW;SEMS | |
| 22. | 4383694 | [1] | COVER | |
| 23. | J900612 | [4] | BOLT | |
| 24. | A590906 | [4] | WASHER;SPRING | |
| 26. | 4388711 | [1] | BRACKET | |
| 27. | J901230 | [2] | BOLT | |
| 28. | A590912 | [2] | WASHER;SPRING | |
| 30. | 9748495 | [1] | STRIKER | |
| 31. | J950012 | [1] | NUT | |
| 33. | 4190271 | [1] | CLIP | |
| 34. | J011020 | [1] | BOLT;SEMS | |
| 35. | 4121859 | [3] | CLIP;BAND | |
