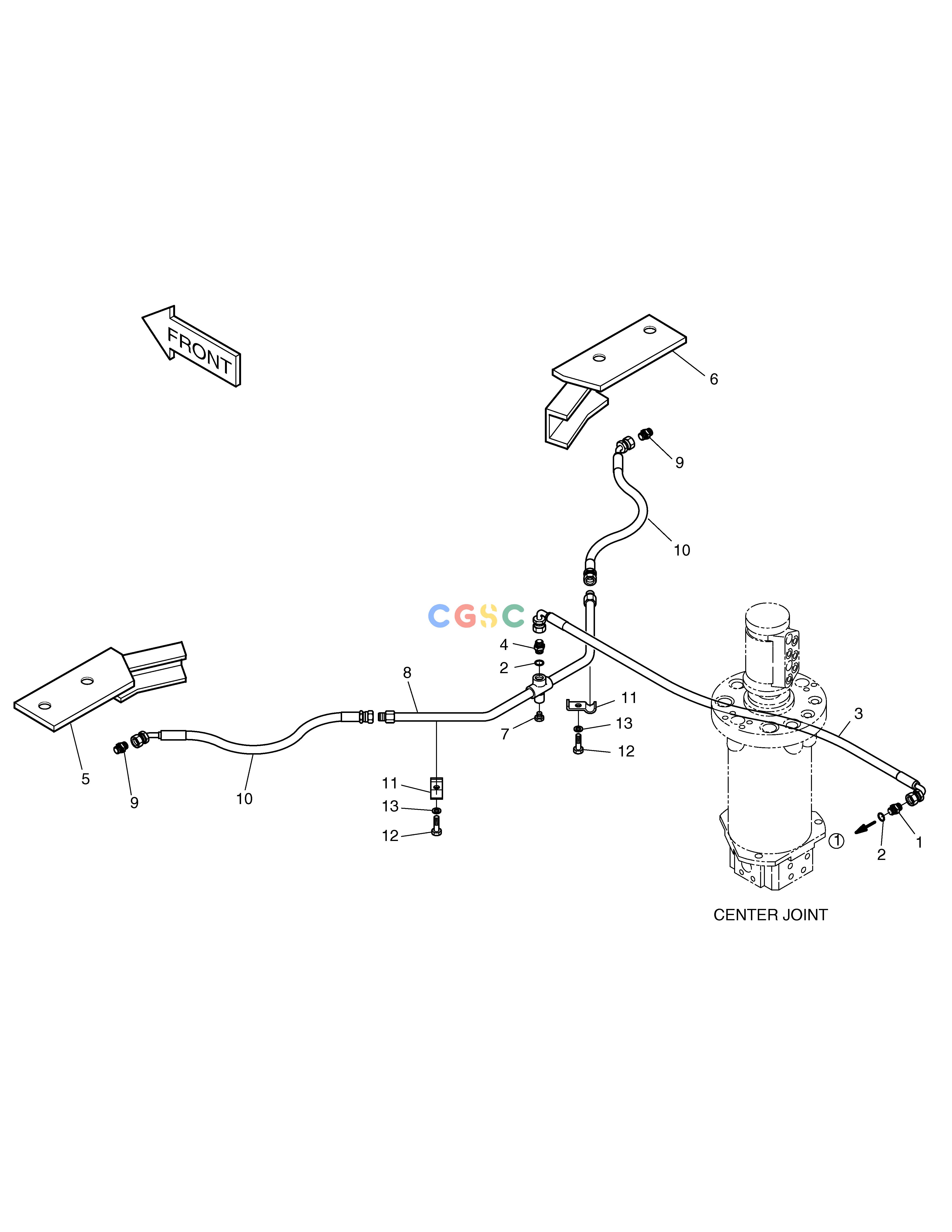

斗山零件查询BRAKE PIPING(1)-FRONT SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
769 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2099A
|
[-] |
BRAKE PIPING;FRONT
|
|
| 1. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 10. |
2184-1070D34
|
[2] |
HOSE PF3/8-560L
|
|
| 11. |
2124-1224D10
|
[2] |
CLAMP;PIPE
|
|
| 12. |
S0512353
|
[2] |
BOLT M10X1.5X35
|
|
| 13. |
S5102603
|
[2] |
. WASHER
|
|
| 2. |
S8000141
|
[2] |
O-RING
|
|
| 3. |
2184-1061D290
|
[1] |
HOSE PF3/8-1200L
|
|
| 4. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 5. |
213-00004
|
[1] |
COVER
|
|
| 6. |
213-00005
|
[1] |
COVER
|
|
| 7. |
2181-2047
|
[1] |
PLUG
|
|
| 8. |
140-00021A
|
[1] |
PIPE
|
|
| 9. |
DS2207009
|
[2] |
ADAPTER M14X1.5 PF3/8
|
|
