斗山零件查询BRAKE PIPING(2)-REAR SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
295 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

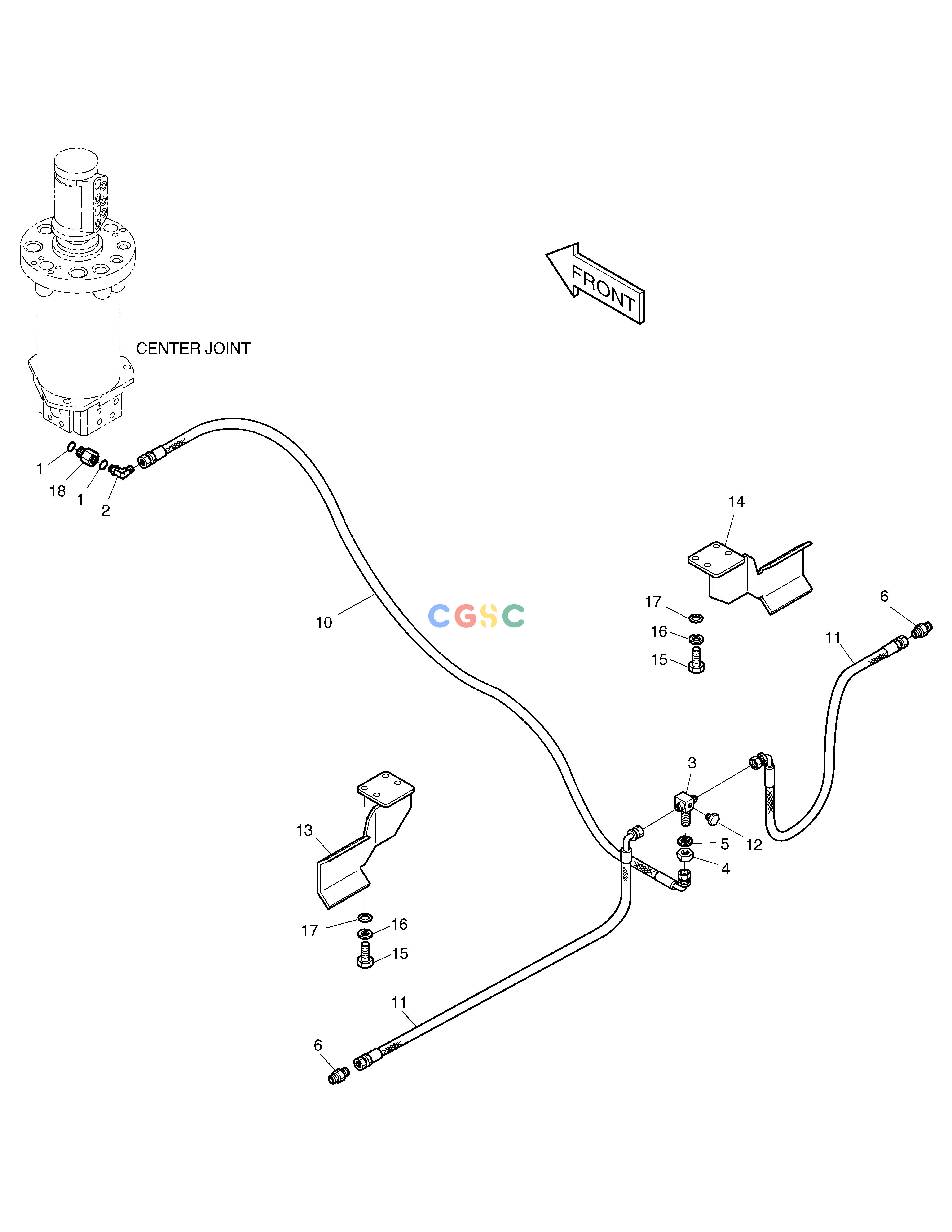

2400-2100A
|
[-] |
BRAKE PIPING;REAR
|
|
| 1. |
S8000141
|
[2] |
O-RING
|
|
| 10. |
2184-1036D134
|
[1] |
HOSE PF3/8-900L
|
|
| 11. |
2184-1036D181
|
[2] |
HOSE PF3/8-1200L
|
|
| 12. |
2181-2047
|
[1] |
PLUG
|
|
| 13. |
621-01089A
|
[1] |
COVER(L)
|
|
| 14. |
621-01088A
|
[1] |
COVER(R)
|
|
| 15. |
S0515361
|
[8] |
BOLT M12X1.75X35
|
|
| 16. |
S5102703
|
[8] |
WASHER
|
|
| 17. |
S5010713
|
[8] |
WASHER;PLAIN
|
|
| 18. |
DS2242015
|
[1] |
REDUCER
|
|
| 2. |
2181-1702D40
|
[1] |
ELBOW PFO3/8XPF3/8
|
|
| 3. |
2181-2300
|
[1] |
TEE 3-PF3/8
|
|
| 4. |
2121-1284
|
[1] |
NUT
|
|
| 5. |
S5103001
|
[1] |
WASHER;SPRING M18
|
|
| 6. |
2181-1914D6
|
[2] |
ADAPTER M14X1.5-PF3/8
|
|
