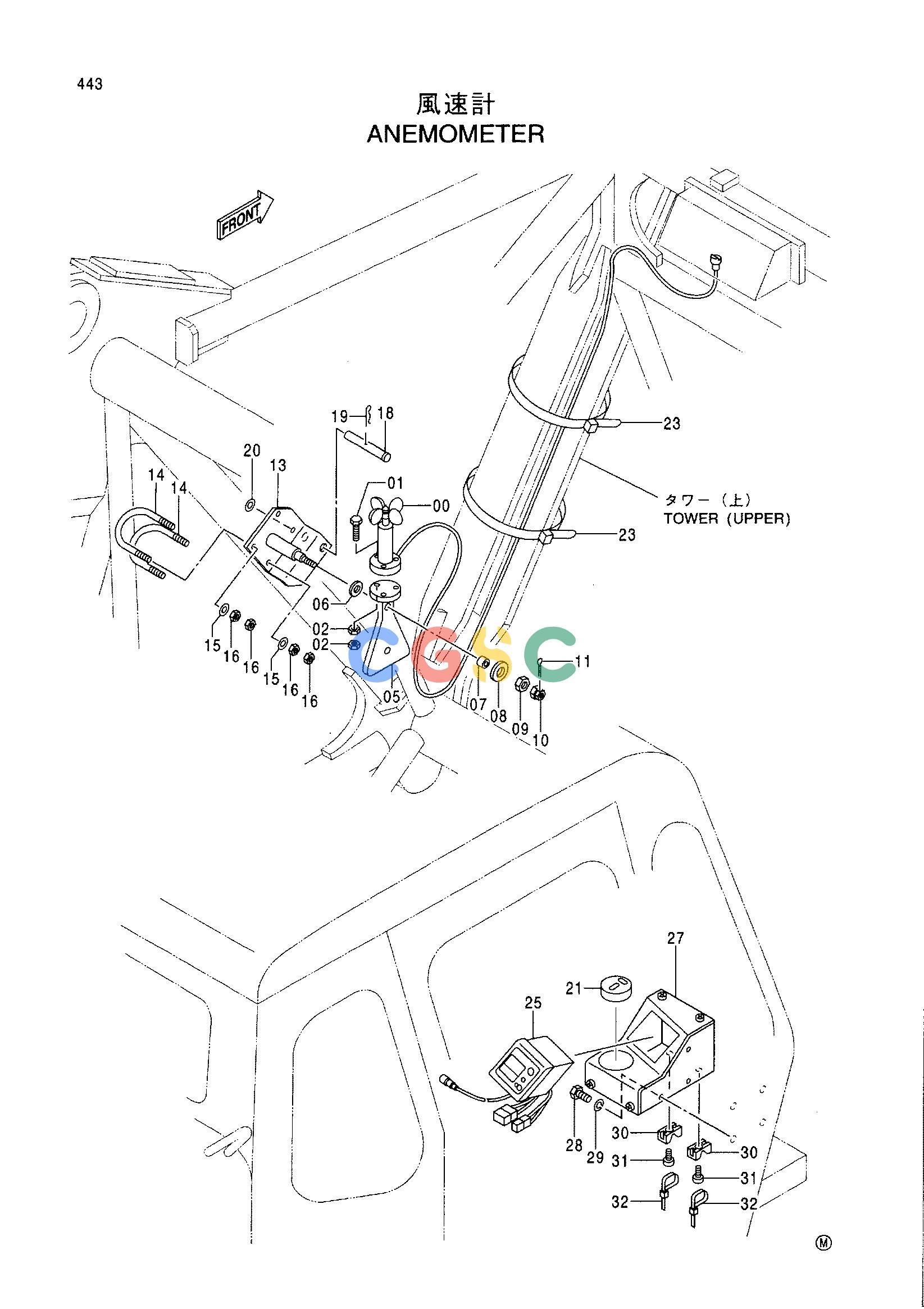

日立零件查询（CX1000）ANEMOMETER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
905 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4338692 | [1] | SENSOR | |
| 01. | J900840 | [3] | BOLT | |
| 02. | J950008 | [6] | NUT | |
| 05. | 9749547 | [1] | WEIGHT | |
| 06. | 4087197 | [1] | WASHER | |
| 07. | 4080993 | [1] | BUSHING | |
| 08. | 4249532 | [1] | SPACER | |
| 09. | J952014 | [1] | NUT | |
| 10. | M631416 | [1] | NUT;CASTLE | |
| 11. | A763028 | [1] | PIN;SPLIT | |
| 13. | 8070945 | [1] | BRACKET | |
| 14. | 4389905 | [2] | BOLT;U | |
| 15. | A590110 | [4] | WASHER;PLANE | |
| 16. | J950010 | [8] | NUT | |
| 18. | 4401672 | [1] | PIN | |
| 19. | 4022701 | [1] | PIN;LOCK | |
| 20. | A590116 | [1] | WASHER;PLANE | |
| 21. | 4091871 | [1] | LEVEL | |
| 23. | 4055312 | [5] | CLIP;BAND | |
| 25. | 4338694 | [1] | INDICATOR | |
| 27. | 7030395 | [1] | BOX | |
| 28. | J900814 | [3] | BOLT | |
| 29. | A590908 | [3] | WASHER;SPRING | |
| 30. | 4196829 | [2] | GUIDE;BAND | |
| 31. | M430610 | [2] | SCREW | |
| 32. | 4055311 | [2] | CLIP;BAND | |
