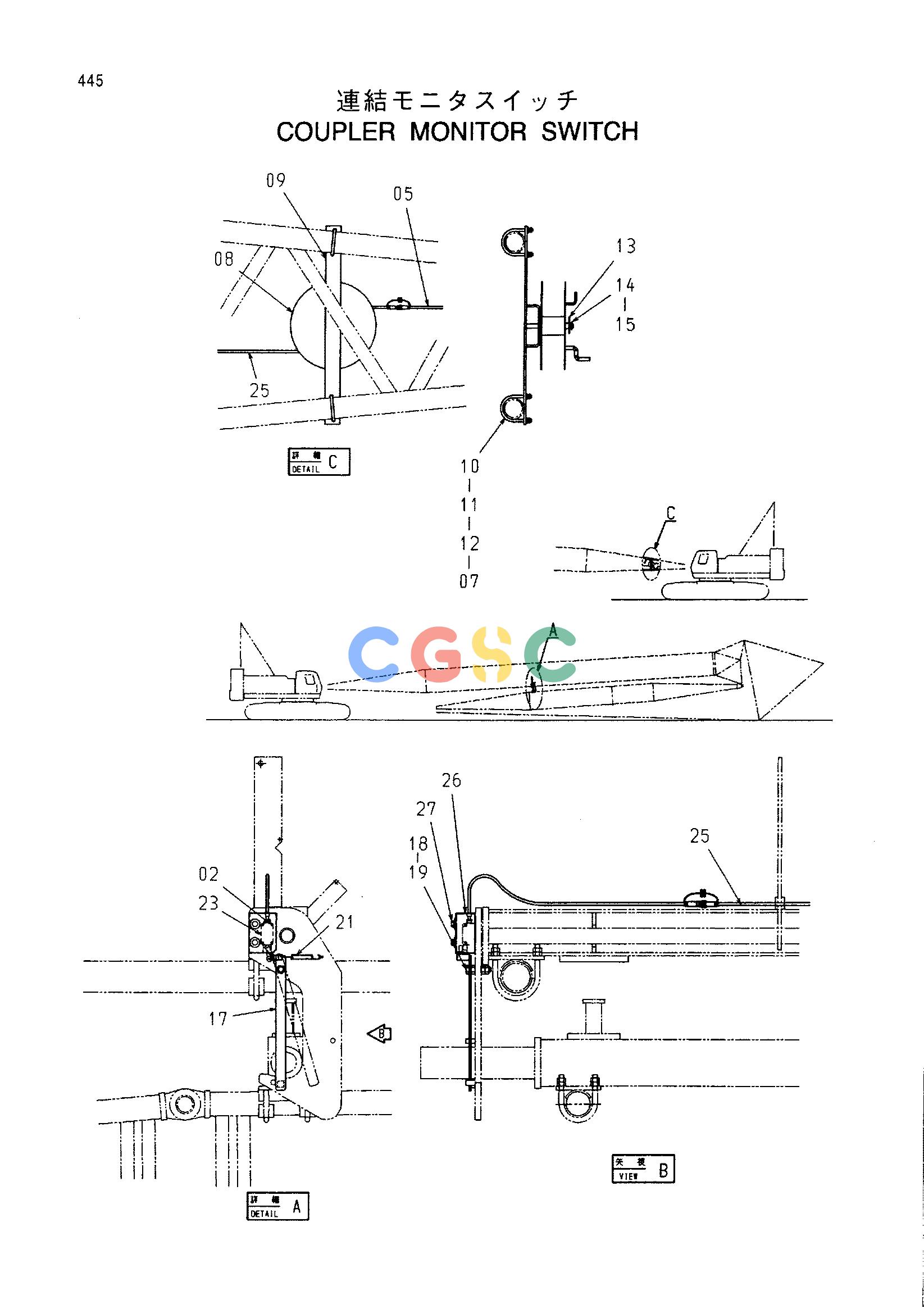

日立零件查询（CX1000）COUPLER MONITOR SWITCH Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
961 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | J450540 | [4] | SCREW;SEMS | |
| 05. | 4388760 | [1] | HARNESS;WIRE | |
| 07. | 449490 | [4] | WASHER | |
| 08. | 7007190 | [1] | REEL;CABLE | |
| 09. | 9731440 | [1] | BRACKET | |
| 10. | 4170580 | [2] | BOLT;U | |
| 11. | A590112 | [4] | WASHER;SPRING | |
| 12. | J950012 | [8] | NUT | |
| 13. | 487041 | [1] | PIN;LOCK | |
| 14. | A590120 | [1] | WASHER;PLANE | |
| 15. | 959500 | [1] | RING;RETAINING | |
| 17. | 9754598 | [1] | LEVER | |
| 18. | M261671 | [1] | BOLT | |
| 19. | J950016 | [3] | NUT | |
| 21. | 443067 | [1] | SPRING;TENSION | |
| 23. | 4435022 | [1] | SWITCH;LIMIT | |
| 25. | 4398363 | [1] | HARNESS;WIRE | |
| 26. | 8079673 | [1] | COVER | |
| 27. | J031085 | [2] | BOLT;SEMS | |
