斗山零件查询CHASSIS COMPONENTS SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
801 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2230-1054A
|
[-] |

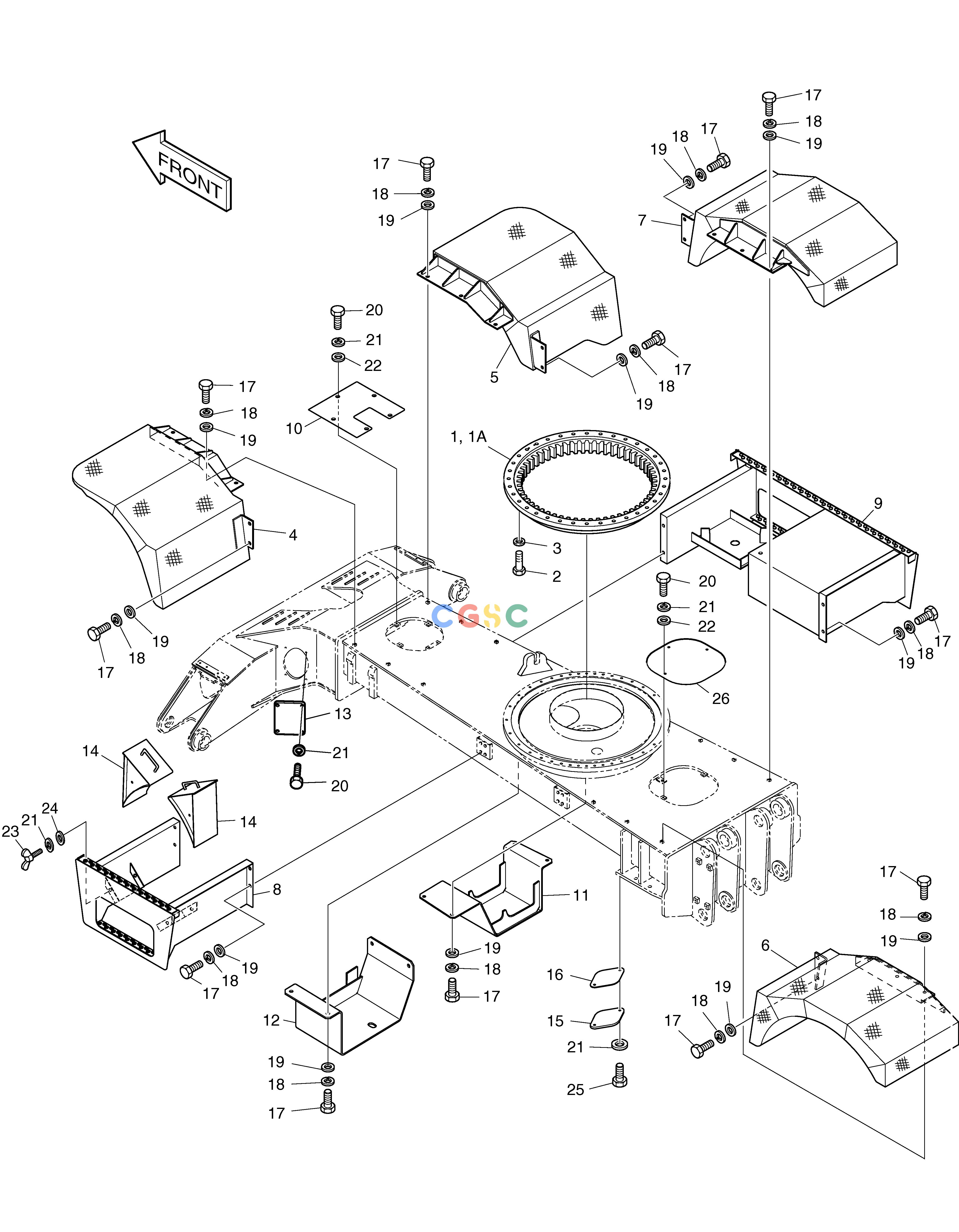

CHASSIS COMPONENTS
|
|
| 1. |
140109-00058
|
[1] |
|
|
| 1. |
109-00028C
|
[1] |
BEARING;SWING
|
140109-00058
|
| 10. |
621-02250A
|
[1] |
COVER
|
|
| 11. |
2627-1795C
|
[1] |
COVER;MOTOR
|
|
| 12. |
621-00239B
|
[1] |
COVER;T/M
|
|
| 13. |
2213-4026
|
[2] |
COVER
|
|
| 14. |
2542-1002A
|
[2] |
CHOCK;WHEEL
|
|
| 15. |
2403-1002
|
[1] |
COVER
|
|
| 16. |
2180-1017A
|
[1] |
PACKING
|
|
| 17. |
S0521456
|
[36] |
BOLT M16X2.0X40
|
|
| 18. |
S5102901
|
[36] |
. WASHER;SPRING
|
|
| 19. |
2114-1058D2
|
[36] |
WAHSER
|
|
| 1A. |
401107-00751
|
[2] |
. SEAL,SWING BEARING
|
|
| 1A. |
180-00297D3
|
[1] |
SEAL
|
|
| 2. |
S0770066
|
[36] |
BOLT
|
|
| 20. |
S0511853
|
[15] |
BOLT
|
|
| 21. |
S5102603
|
[19] |
. WASHER
|
|
| 22. |
S5010613
|
[7] |
WASHER
|
|
| 23. |
S3056253
|
[2] |
BOLT;WING
|
|
| 24. |
2114-1058D1
|
[2] |
WASHER
|
|
| 25. |
S0512053
|
[2] |
BOLT
|
|
| 26. |
621-02270
|
[1] |
COVER
|
|
| 3. |
2114-9012
|
[36] |
WASHER;HARDEN
|
|
| 4. |
2627-1014C
|
[1] |
FENDER;FRONT(L.H.)
|
|
| 5. |
2627-1015C
|
[1] |
FENDER;FRONT(R.H.)
|
|
| 6. |
2627-1016B
|
[1] |
FENDER;REAR(L.H.)
|
|
| 7. |
2627-1017B
|
[1] |
FENDER;REAR(R.H.)
|
|
| 8. |
2625-1236A
|
[1] |
STEP(L.H.)
|
|
| 9. |
2625-1237C
|
[1] |
STEP(R.H.)
|
|
