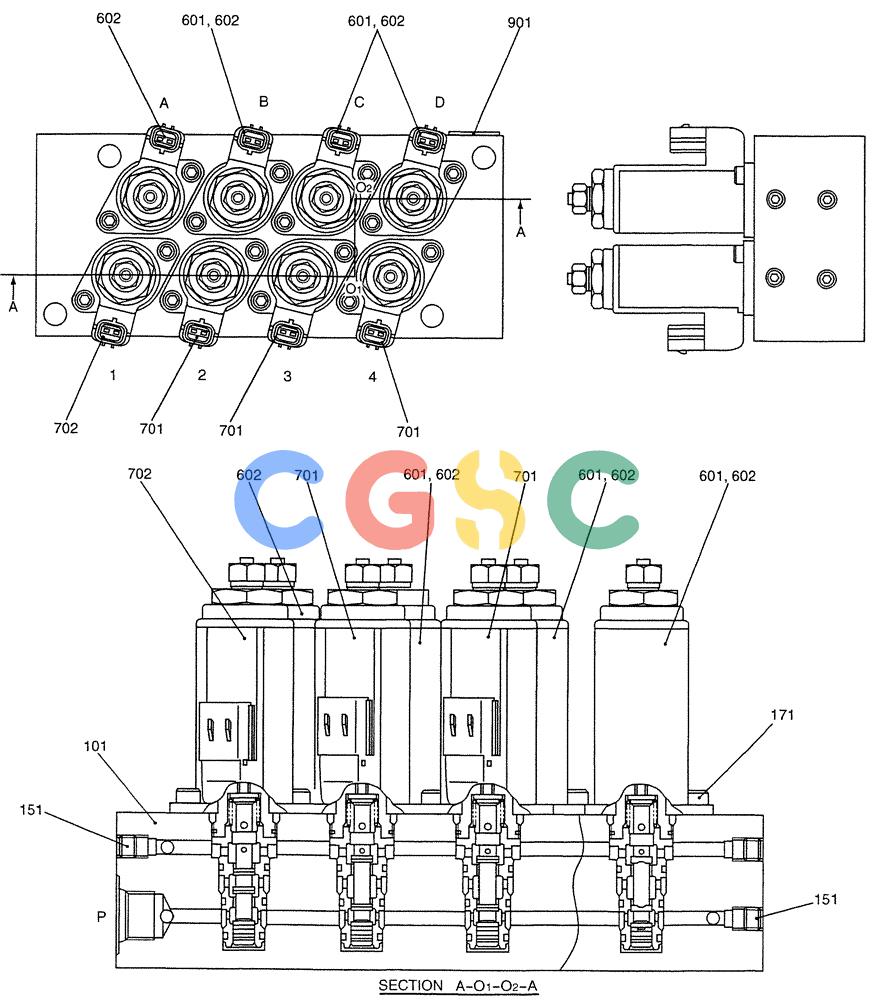

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (07-019) - VALVE ASSY, SOLENOID New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
820 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB35V00002F2 | [1] | VALVE | KOBASSY, SOLENOID |
| 101. | YB35V00001S101 | [1] | BLOCK | KOB |
| 151. | 2441U722S490 | [10] | PLUG | KOB |
| 171. | YX35V00002S171 | [16] | SCREW,Hex Socket Head, M5 x 12mm | KOBCAP Superseded by part number: ZS23C05012 |
| 601. | YT35V00012F1 | [3] | SOLENOID VALVE | KOBASSY, FOR F1 ONLY |
| 602. | YB35V00005F1 | [1] | SOLENOID VALVE | KOBASSY, SOLENOID, SEE FIG. 07-021, FOR F1 ONLY Superseded by part number: YN35V00048F1 |
| 701. | YT35V00013F1 | [3] | SOLENOID VALVE | KOBASSY, SOLENOID, SEE FIG. 07-045 Superseded by part number: YN35V00050F1 |
| 702. | YB35V00006F1 | [1] | SOLENOID VALVE | KOBASSY, SOLENOID, SEE FIG. 07-022 Superseded by part number: YN35V00051F1 |
| 901. | YA35V00001S901 | [1] | PLATE | KOBNAME |
