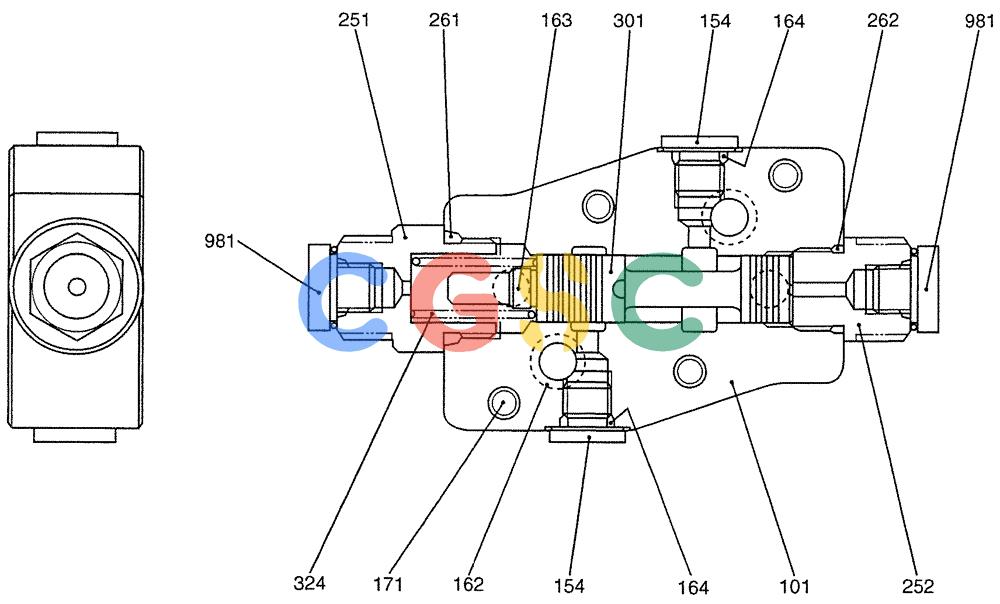

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (07-018) - VALVE ASSY, BYPASS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
1007 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB30V00014F1 | [1] | BY-PASS VALVE | KOBASSY |
| 101. | NSS | [1] | NOT SERVICED SEPARATELY | CONCASE |
| 154. | YW30V00001S157 | [2] | PLUG | KOB |
| 162. | ZD12P01200 | [2] | O-RING | KOB |
| 163. | ZD12P00600 | [2] | O-RING | KOB |
| 164. | ZD12P01100 | [2] | O-RING | KOB |
| 171. | ZS23C08090 | [4] | SCREW,Hex Socket Head, M8 x 90mm | KOBCAP |
| 251. | YB30V00014S251 | [1] | PLUG | KOB |
| 252. | YB30V00014S252 | [1] | PLUG | KOB |
| 261. | ZD12P02400 | [1] | O-RING | KOB |
| 262. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 324. | YB30V00014S324 | [1] | SPRING | |
| 981. | LQ15V00001S982 | [2] | PLUG | KOB |
| . . | YB30V00014R100 | [1] | REPAIR KIT CONSISTS OF Ref. 101(1), 301(1) | |
