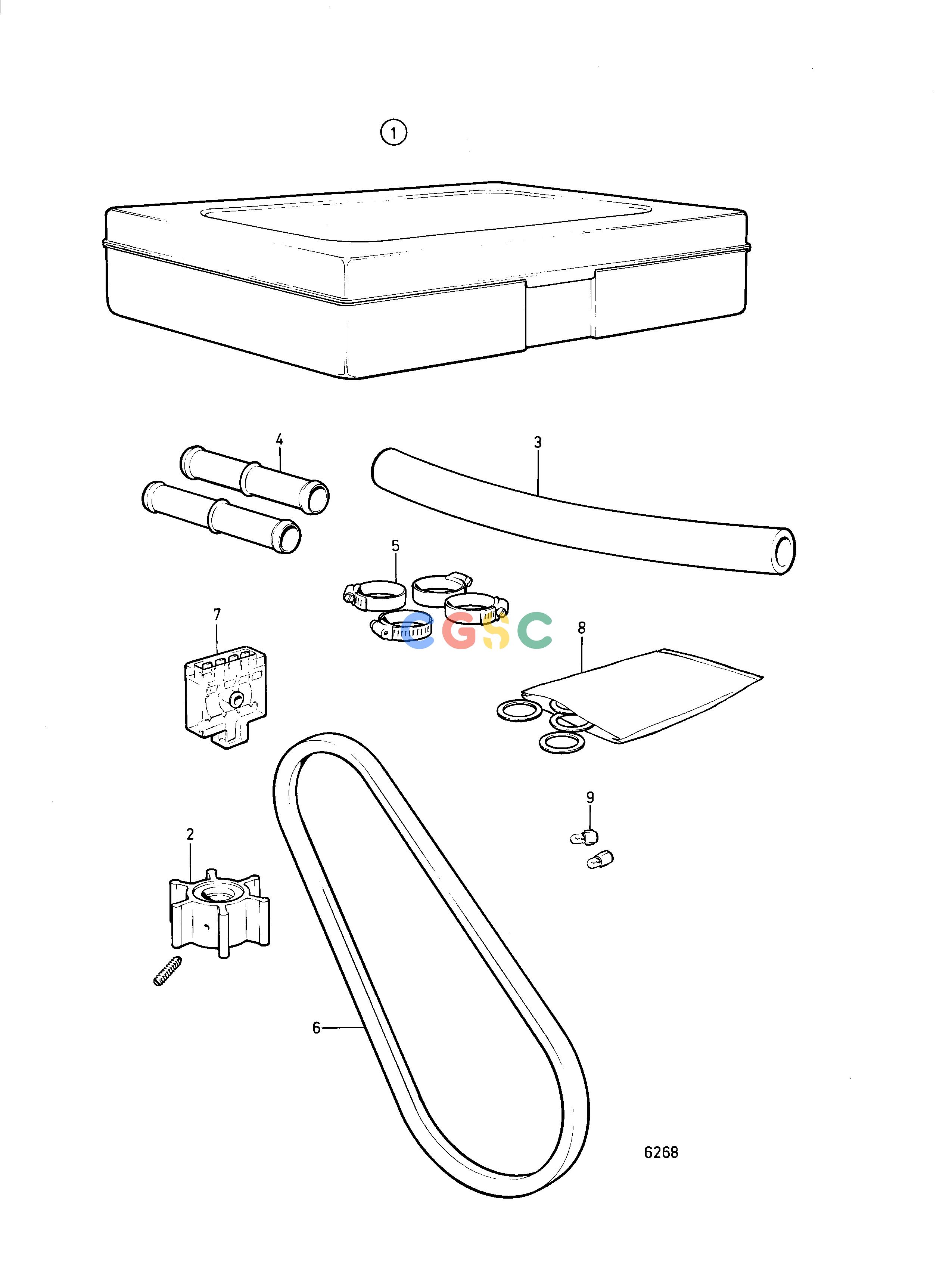

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BMiscellaneous EquipmentOn Board Kit: 875640EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
502 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
875640
|
[1] |
Onboard kit
|
For engine with starter., MD2B
|
| 2. |
875807
|
[1] |
Impeller kit
|
Replaced by 3586494
|
| 2. |
3586494
|
[1] |
Impeller kit
|
|
| 3. |
952969
|
[1] |
Hose
|
L=250mm
|
| 4. |
831752
|
[2] |
Connecting pipe
|
|
| 5. |
961665
|
[4] |
Hose clamp
|
|
| 6. |
958306
|
[1] |
V-belt
|
L=900mm
|
| 7. |
824823
|
[1] |
Fuse box
|
|
| 8. |
11991
|
[1] |
Gasket
|
|
| 8. |
11994
|
[2] |
Gasket
|
|
| 8. |
957171
|
[6] |
Gasket
|
|
| 8. |
957176
|
[2] |
Gasket
|
|
| 8. |
957178
|
[6] |
Gasket
|
|
| 8. |
15521
|
[1] |
Gasket
|
|
| 8. |
18838
|
[1] |
Gasket
|
|
| 8. |
25534
|
[1] |
Gasket
|
|
| 9. |
19923
|
[2] |
Bulb
|
|
