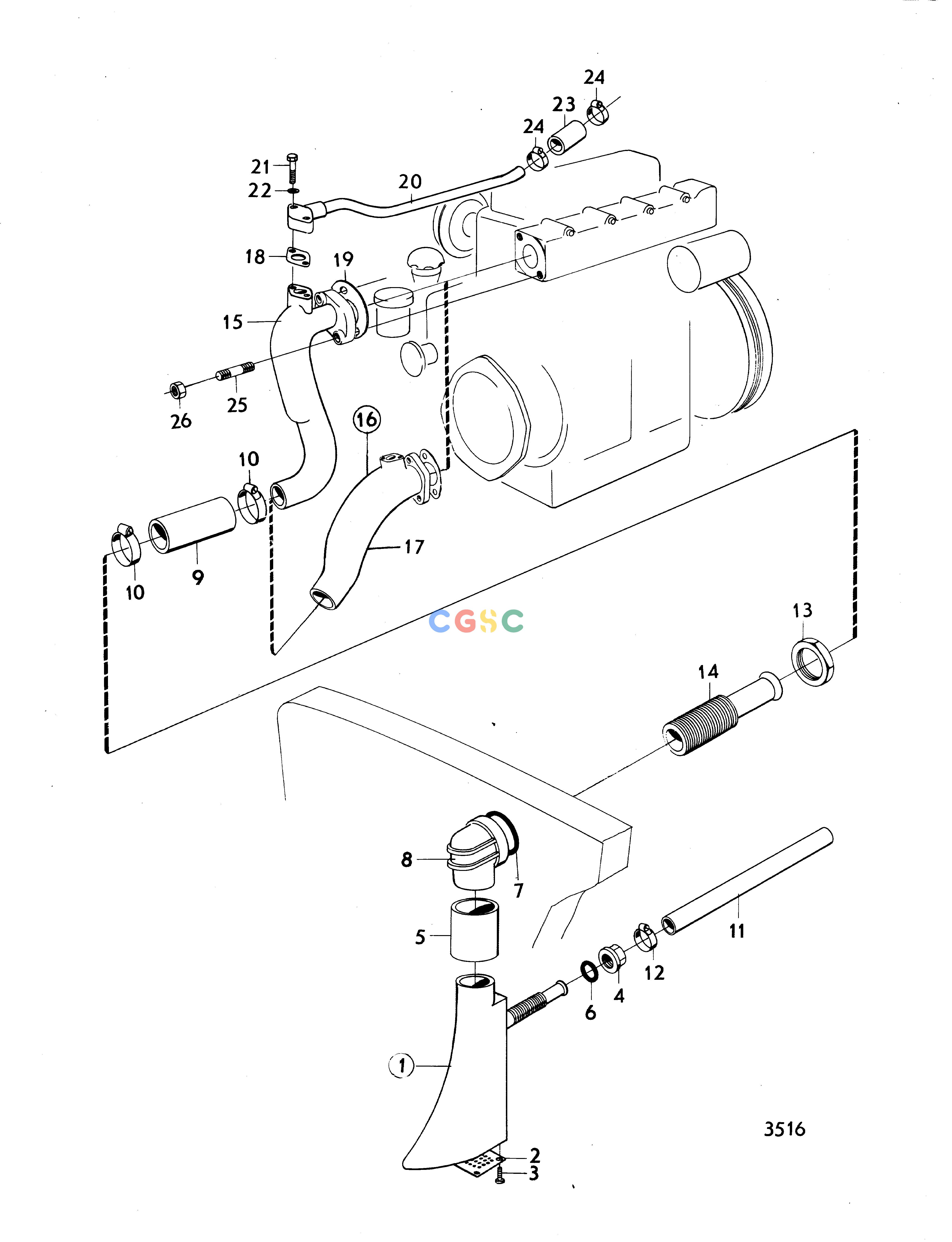

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BMiscellaneous EquipmentOuter Exhaust LineEPC Volvo Penta Parts catalog

广数供应链运营团队, 15 02月, 2025，浏览： 906 次

Pos.	Part No	Qty	Parts name	Comments
1.	839017	[1]	Exhaust outlet	AQD2B., MD2B, MD2B/HY, MD11, MD11/HY., MD17
2.	813995	[1]	Strainer
3.	804269	[4]	Drive screw
4.	814035	[1]	Nut
5.	952980	[1]	Hose	MD2B, MD2B/HY, MD11, MD11/HY., MD17.
6.	125334	[1]	O-ring	AQD2B., MD2B, MD2B/HY, MD11, MD11/HY., MD17.
7.	925073	[1]	O-ring	AQD2B., MD2B, MD2B/HY, MD11, MD11/HY., MD17.
8.	818468	[1]	Exhaust pipe elbow	AQD2B., MD2B, MD2B/HY, MD11, MD11/HY., MD17.
9.	952977	[1]	Radiator hose	AQD2B., L=150mm
9.	833755	[1]	Rubber hose	MD2B, MD2B/HY, MD11, MD11/HY., MD17.
10.	943478	[2]	Hose clamp	AQD2B.
10.	961672	[2]	Hose clamp	MD2B, MD2B/HY, MD11, MD11/HY., MD17.
11.	944217	[1]	Hose	MD2B, MD2B/HY, MD11, MD11/HY., MD17.
12.	961665	[2]	Hose clamp	AQD2B., MD2B, MD2B/HY, MD11, MD11/HY., MD17.
13.	814051	[1]	Nut	AQD2B., MD2B, MD2B/HY, MD11, MD11/HY., MD17.
14.	827732	[1]	Exhaust grommet	AQD2B., MD2B, MD2B/HY, MD11, MD11/HY., MD17.
15.	827731	[1]	Exhaust pipe elbow	AQD2B.
16.	833585	[1]	Pipe elbow	MD2B, MD2B/HY, MD11, MD11/HY.
16.	833586	[1]	Exhaust bellows	MD17.
17.	833583	[1]	Exhaust pipe elbow	Included in 833585, 833586.
18.	800326	[1]	Gasket	AQD2B.
19.	803374	[1]	Gasket	AQD2B.
20.	807181	[1]	Coolant pipe	AQD2B.
21.	955275	[2]	Hexagon screw	AQD2B.
22.	941906	[2]	Spring washer	AQD2B.
23.	952969	[1]	Hose	AQD2B., L=60mm
24.	943473	[2]	Hose clamp	AQD2B.
25.	924081	[2]	Stud	AQD2B.
25.	924079	[2]	Stud	MD17., L=45mm
26.	955783	[2]	Hexagon nut	AQD2B.
