| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

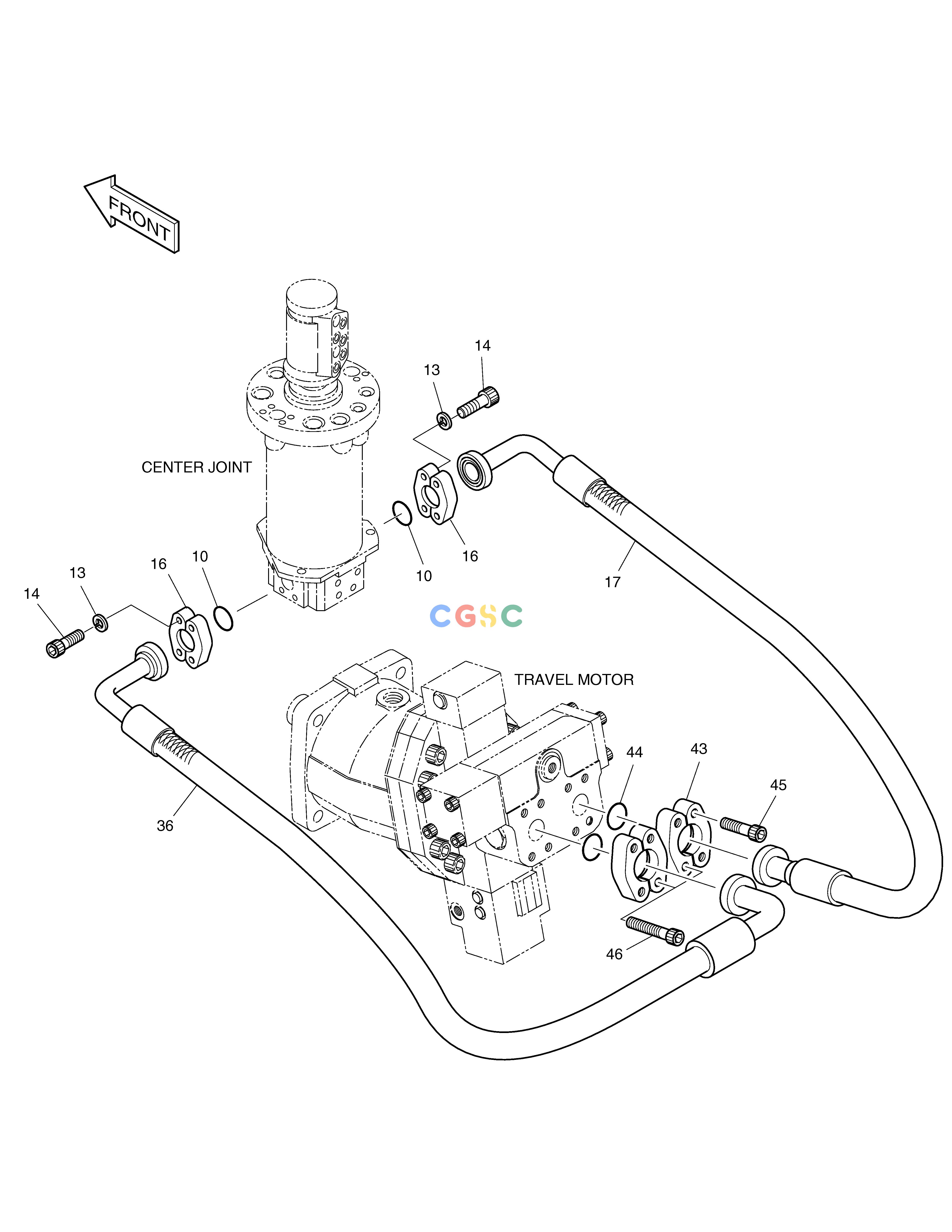

| -. | 400-01250 | [-] | PROPELLING PIPING | |
| 10. | 2180-1026D19 | [2] | O-RING | |
| 13. | S5110703 | [8] | WASHER | |
| 14. | S2215466 | [8] | BOLT | |
| 16. | 2181-9081 | [4] | FLANGE;SPLIT | |
| 17. | DS2040363 | [1] | HOSE PF1-1400L | |
| 36. | DS2045319 | [1] | HOSE PF1-750L | |
| 43. | 2181-9086 | [4] | FLANGE;SPLIT | |
| 44. | 2180-1026D23 | [2] | O-RING | |
| 45. | S2218566 | [2] | BOLT;SOCKET | |
| 46. | S2220266 | [6] | BOLT;SOCKET M14X2.0X130 |
