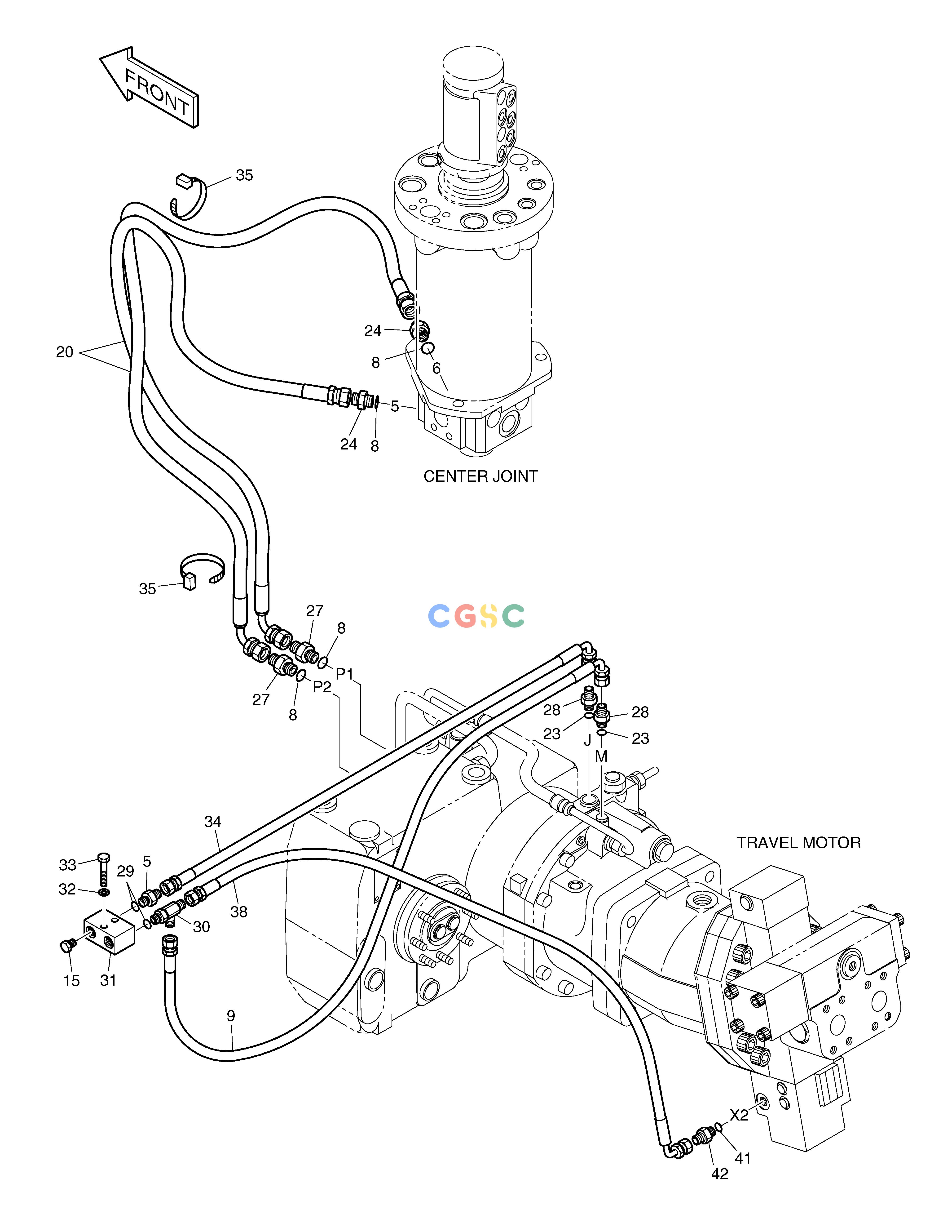

斗山零件查询PROPELLING PIPING(2)-GEAR SHIFT&TEST PORT SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
727 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01250
|
[-] |
PROPELLING PIPING
|
|
| 15. |
2181-2047
|
[2] |
PLUG
|
|
| 20. |
2184-1036D291
|
[2] |
HOSE PF3/8-1100L
|
|
| 23. |
S8000121
|
[2] |
O-RING
|
|
| 24. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 27. |
2181-1126D56
|
[2] |
ADAPTER
|
|
| 28. |
2181-1126D128
|
[2] |
ADAPTER M14X1.5-PF1/4
|
|
| 29. |
S8000111
|
[2] |
O-RING
|
|
| 30. |
2181-1951D1
|
[1] |
TEE
|
|
| 31. |
2423-1503
|
[1] |
BLOCK
|
|
| 32. |
S5102503
|
[2] |
. WASHER
|
|
| 33. |
S0556253
|
[2] |
BOLT M8X1.25X45
|
|
| 34. |
2184-1046D132
|
[1] |
HOSE PF1/4-590L
|
|
| 35. |
2124-1084D3
|
[2] |
CLIP;BAND
|
|
| 38. |
2184-1046D142
|
[1] |
HOSE PF1/4-900L
|
|
| 41. |
S8180211
|
[1] |
SEAL;RING
|
|
| 42. |
2181-1917D5
|
[1] |
ADAPTER
|
|
| 5. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 8. |
S8000141
|
[4] |
O-RING
|
|
| 9. |
DS2059443
|
[1] |
HOSE PF1/4-600L
|
|
