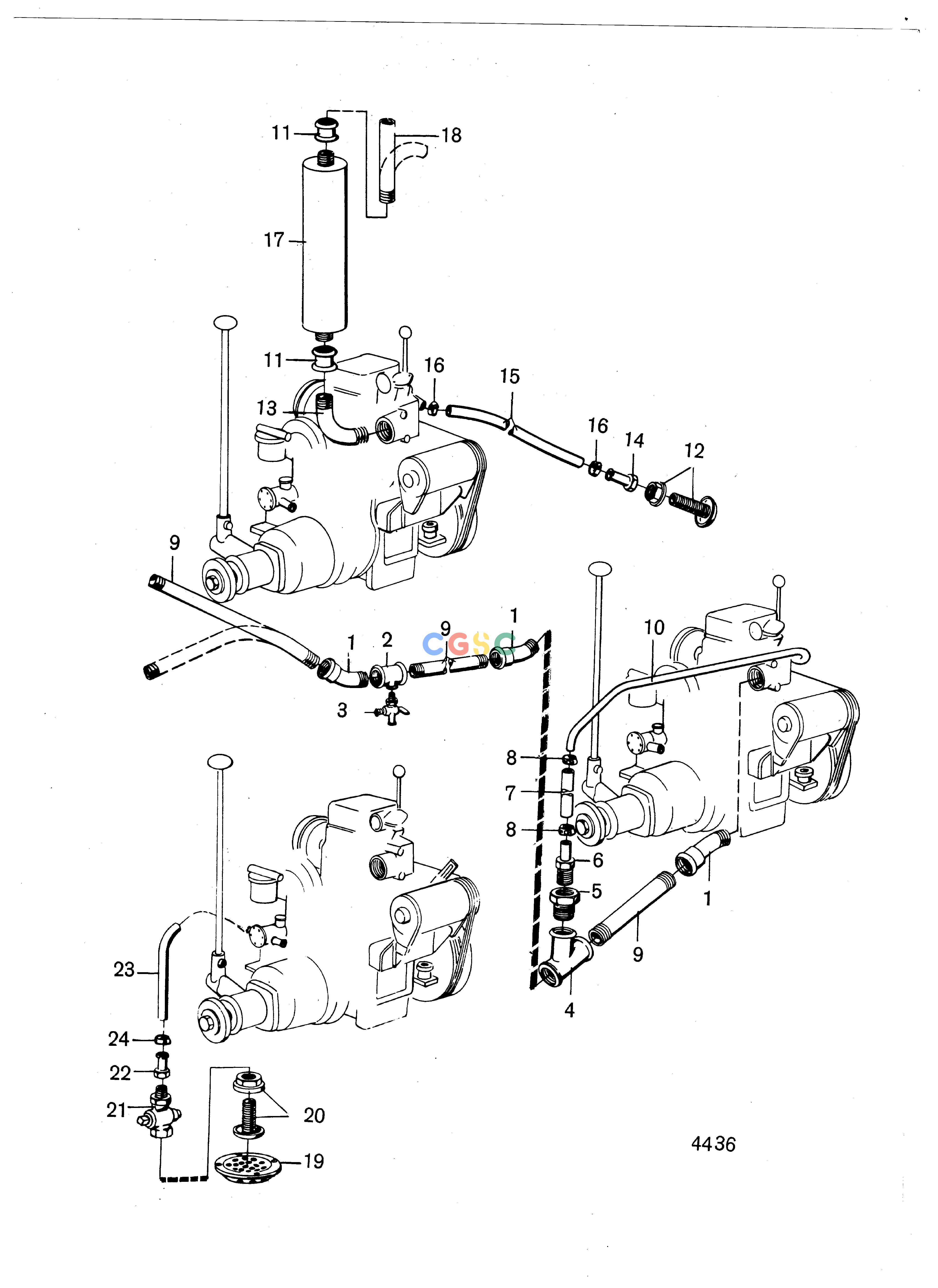

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BMiscellaneous EquipmentOuter Exhaust Line and Water StrainerEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
521 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
810362
|
[3] |
Elbow pipe
|
|
| 2. |
810365
|
[1] |
T-pipe
|
|
| 3. |
810368
|
[1] |
Cock
|
|
| 4. |
803680
|
[1] |
T-pipe
|
|
| 5. |
803679
|
[1] |
Nipple
|
|
| 6. |
803376
|
[1] |
Hose attachment
|
|
| 7. |
943416
|
[1] |
Rubber hose
|
|
| 8. |
943472
|
[4] |
Hose clamp
|
|
| 9. |
803918
|
[3] |
Tube
|
L=900mm
|
| 10. |
19772
|
[1] |
Copper tube
|
L=800mm
|
| 11. |
807770
|
[2] |
Nipple
|
|
| 12. |
810669
|
[1] |
Table fitting
|
|
| 13. |
803947
|
[1] |
Elbow pipe
|
|
| 14. |
810616
|
[1] |
Hose attachment
|
|
| 15. |
943416
|
[1] |
Rubber hose
|
|
| 16. |
943472
|
[2] |
Hose clamp
|
|
| 17. |
810671
|
[1] |
Silencer
|
|
| 18. |
803918
|
[1] |
Tube
|
|
| 19. |
|
|
|
Replaced by 828242.
|
| 20. |
|
|
|
Replaced by 828242.
|
| 21. |
|
|
|
Replaced by 828242.
|
| 22. |
|
|
|
Replaced by 828242.
|
| 23. |
|
|
|
Replaced by 828242.
|
| 24. |
|
|
|
Replaced by 828242.
|
