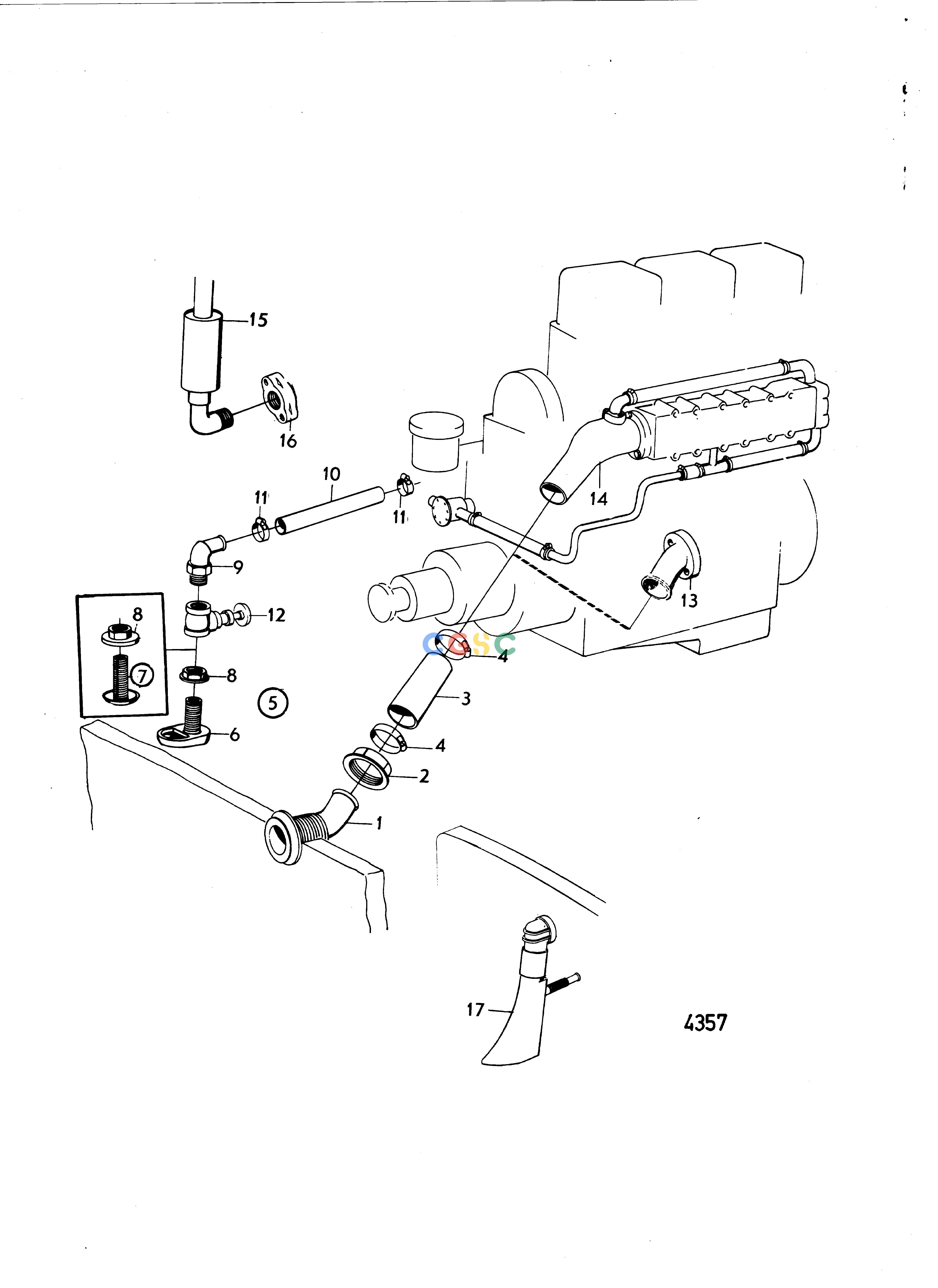

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BMiscellaneous EquipmentOuter Exhaust Line and Exhaust BendEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
900 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
827874
|
[1] |
Hull fitting
|
|
| 2. |
827877
|
[1] |
Nut
|
|
| 3. |
833755
|
[1] |
Rubber hose
|
|
| 4. |
961672
|
[2] |
Hose clamp
|
|
| 5. |
828242
|
[1] |
Coolant inlet
|
836900, 828106replaced by 828242.
|
| 5. |
828241
|
[1] |
Coolant inlet
|
Repl by 828242
|
| 6. |
836874
|
[1] |
Strainer
|
Included in 828242.
|
| 7. |
810381
|
[1] |
Table fitting
|
Included in 828241., Repl by 836874
|
| 8. |
807595
|
[1] |
Nut
|
Included in 828242., Included in 828241.
|
| 9. |
804429
|
[1] |
Hose attachment
|
Included in 828242., Included in 828241.
|
| 10. |
952969
|
[1] |
Hose
|
Included in 828242., L=1000mm
|
| 10. |
943368
|
[1] |
Rubber hose
|
Included in 828241., L=1000mm
|
| 11. |
961666
|
[2] |
Hose clamp
|
Included in 828242., Included in 828241.
|
| 12. |
828238
|
[1] |
Sliding valve
|
Included in 828242., Included in 828241.
|
| 13. |
834292
|
[1] |
Exhaust pipe elbow
|
|
| 14. |
833490
|
[1] |
Exhaust bellows
|
MD1B, early type
|
| 14. |
807193
|
[1] |
Exhaust pipe elbow
|
MD2B, early type
|
| 14. |
833423
|
[1] |
Exhaust bellows
|
MD3B, early type
|
| 14. |
|
|
|
MD1B, late type
|
| 14. |
833585
|
[1] |
Pipe elbow
|
MD2Blate production. MD11/110S.
|
| 14. |
833586
|
[1] |
Exhaust bellows
|
MD3Blate production. MD17early production. MD17C/110S.
|
| 15. |
7742090_084
|
|
MD1B, MD2B, MD3B
|
|
| 15. |
|
|
|
|
| 16. |
807050
|
[1] |
Exhaust pipe flange
|
See group 2B
|
| 17. |
7742090_085
|
|
outer exhaust line MD2B, AQD2B, MD2B/HY MD3B
|
|
| 17. |
|
|
|
|
