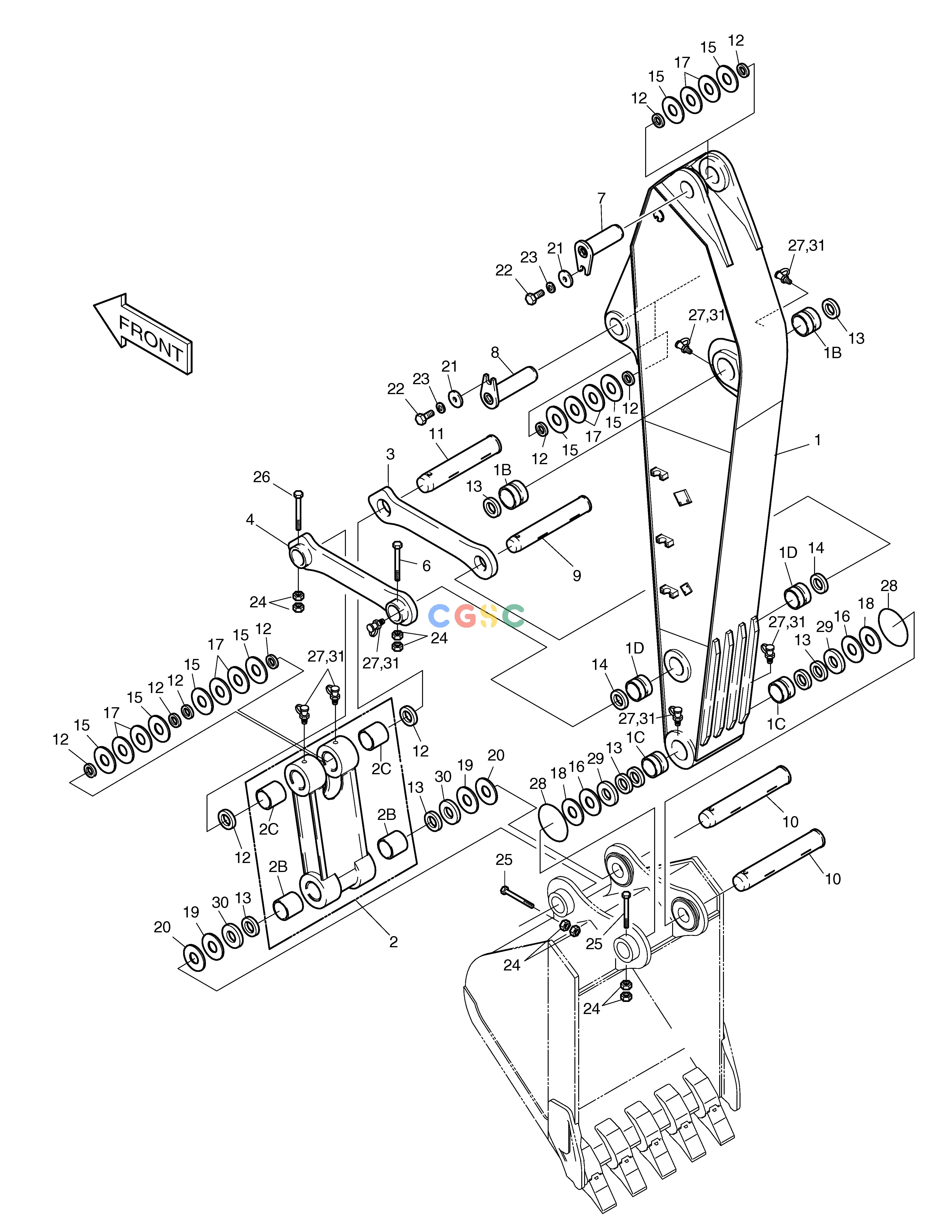

斗山零件查询ARM-2.6m SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
598 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2701-1692A
|
[-] |
ARM ASS'Y-2.6m
|
|
| -. |
230201-00390
|
[-] |
|
|
| 1. |
2701-1693H
|
[1] |
ARM SUB ASS'Y-2.6m
|
|
| 10. |
2123-2192C
|
[2] |
PIN
|
120501-01052
|
| 10. |
120501-01052
|
[2] |
|
|
| 11. |
2123-2018A
|
[1] |
PIN
|
120501-01060
|
| 11. |
120501-01060
|
[1] |
|
|
| 12. |
2180-1106BD4
|
[10] |
SEAL;DUST
|
|
| 13. |
2180-1106BD24
|
[6] |
SEAL;DUST
|
|
| 14. |
2180-1106BD3
|
[2] |
SEAL;DUST
|
|
| 15. |
2114-1059D129
|
[8] |
SHIM
|
|
| 16. |
2114-1059D100
|
[2] |
SHIM
|
|
| 17. |
2114-1059D127
|
[8] |
SHIM
|
|
| 18. |
2114-1059D98
|
[2] |
SHIM
|
|
| 19. |
2114-1059D175
|
[2] |
SHIM
|
|
| 1B. |
2110-1317A
|
[2] |
BUSHING
|
|
| 1C. |
110-00064
|
[2] |
. BUSHING
|
|
| 1D. |
2110-1224A
|
[2] |
BUSHING
|
|
| 2. |
2155-1378A
|
[1] |
LINK ASS'Y
|
|
| 20. |
2114-1059D174
|
[2] |
SHIM
|
|
| 21. |
2116-1060D6
|
[2] |
STOPPER
|
|
| 22. |
S0521366
|
[2] |
BOLT
|
|
| 23. |
S5102903
|
[2] |
WASHER
|
|
| 24. |
S4012933
|
[8] |
NUT
|
|
| 25. |
S0566966
|
[2] |
BOLT
|
|
| 26. |
S0566866
|
[1] |
BOLT
|
|
| 27. |
S6710041
|
[9] |
NIPPLE,GREASE
|
|
| 28. |
180-00077D5
|
[2] |
O-RING
|
|
| 29. |
2114-1997B
|
[2] |
SPACER
|
|
| 2B. |
2110-1228B
|
[2] |
BUSHING
|
|
| 2C. |
2110-1394A
|
[2] |
BUSHING
|
|
| 3. |
2155-4019A
|
[1] |
LINK(R.H)
|
|
| 30. |
2114-1998B
|
[2] |
SPACER
|
|
| 31. |
160-00020
|
[9] |
CAP
|
|
| 4. |
2155-4020B
|
[1] |
LINK(L.H)
|
|
| 6. |
S0566766
|
[1] |
BOLT
|
|
| 7. |
2123-2443
|
[1] |
PIN
|
120501-01050
|
| 7. |
120501-01050
|
[1] |
|
|
| 8. |
2123-2441
|
[1] |
PIN
|
120501-01049
|
| 8. |
120501-01049
|
[1] |
|
|
| 9. |
2123-2009A
|
[1] |
PIN
|
120501-01059
|
| 9. |
120501-01059
|
[1] |
|
|
