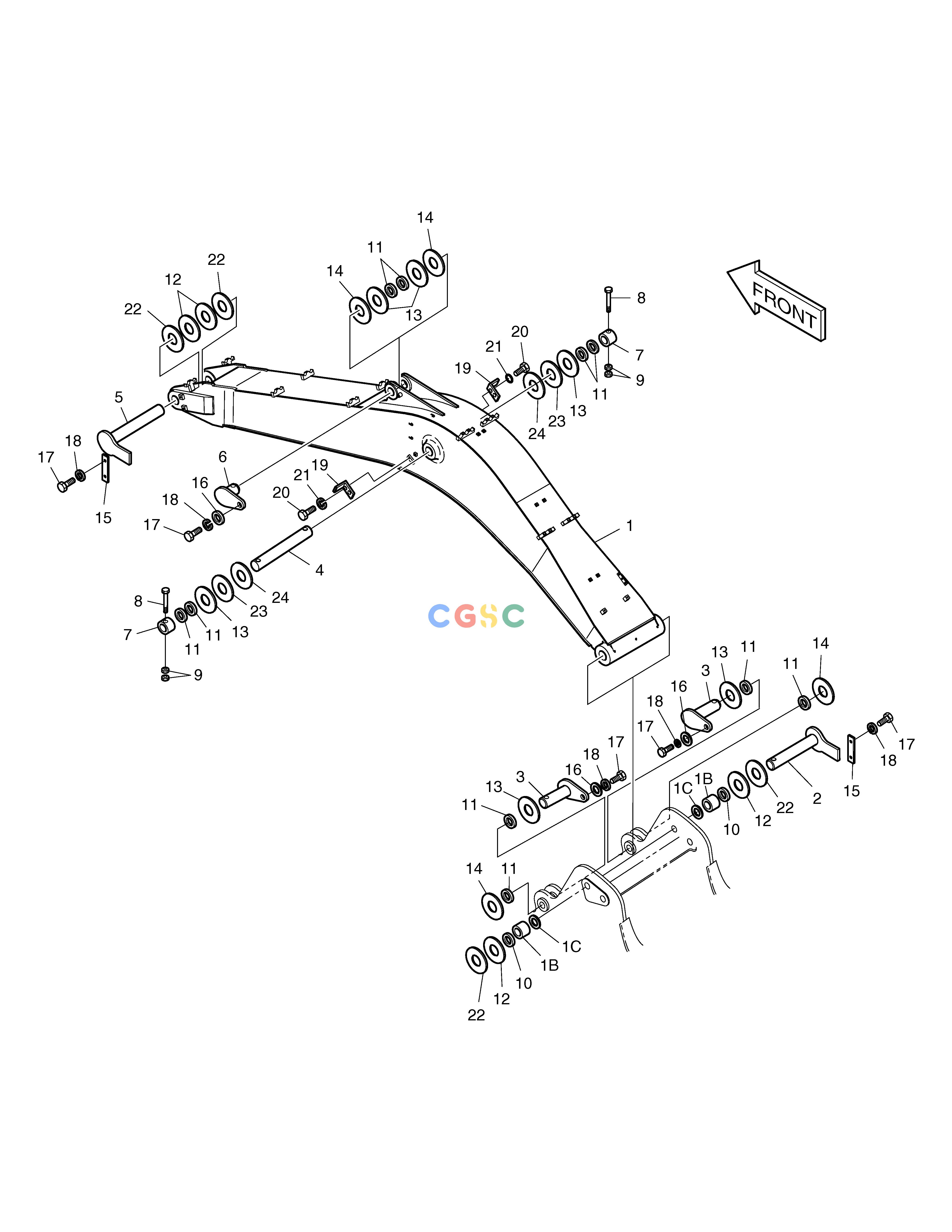

斗山零件查询BOOM-5.15m SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
842 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230207-00126
|
[-] |
|
|
| -. |
2701-1688
|
[-] |
BOOM ASS'Y-5.15m
|
|
| 1. |
2701-1689
|
[1] |
BOOM SUB ASS'Y-5.15m
|
|
| 10. |
2180-1106BD24
|
[2] |
SEAL;DUST
|
|
| 11. |
2180-1106BD4
|
[10] |
SEAL;DUST
|
|
| 12. |
DS7701389
|
[4] |
SHIM
|
|
| 13. |
2114-1059D127
|
[8] |
SHIM
|
|
| 14. |
2114-1059D129
|
[6] |
SHIM
|
|
| 15. |
2191-2205D10
|
[2] |
PLATE;STOPPER
|
|
| 16. |
2116-1060D6
|
[3] |
STOPPER
|
|
| 17. |
S0521356
|
[7] |
BOLT M16X2.0X35
|
|
| 18. |
S5102903
|
[7] |
WASHER
|
|
| 19. |
2195-2394B
|
[2] |
BRACKET
|
|
| 1B. |
2110-1434
|
[2] |
BUSHING
|
|
| 1C. |
2180-1106BD24
|
[2] |
SEAL;DUST
|
|
| 2. |
2123-2017E
|
[1] |
PIN
|
|
| 20. |
S0515053
|
[4] |
BOLT M12X1.75X25
|
|
| 21. |
S5102703
|
[4] |
WASHER
|
|
| 22. |
DS7701390
|
[4] |
SHIM
|
|
| 23. |
2114-1059D253
|
[2] |
SHIM
|
|
| 24. |
2114-1059D254
|
[2] |
SHIM
|
|
| 3. |
120501-01055
|
[2] |
|
|
| 3. |
2123-2015C
|
[2] |
PIN
|
120501-01055
|
| 4. |
120501-01056
|
[1] |
|
|
| 4. |
2123-2013A
|
[1] |
PIN
|
120501-01056
|
| 5. |
2123-2012G
|
[1] |
PIN
|
|
| 6. |
120501-01049
|
[1] |
|
|
| 6. |
2123-2441
|
[1] |
PIN
|
120501-01049
|
| 7. |
2116-1532A
|
[2] |
STOPPER
|
|
| 8. |
S0566966
|
[2] |
BOLT
|
|
| 9. |
S4012933
|
[4] |
NUT
|
|
