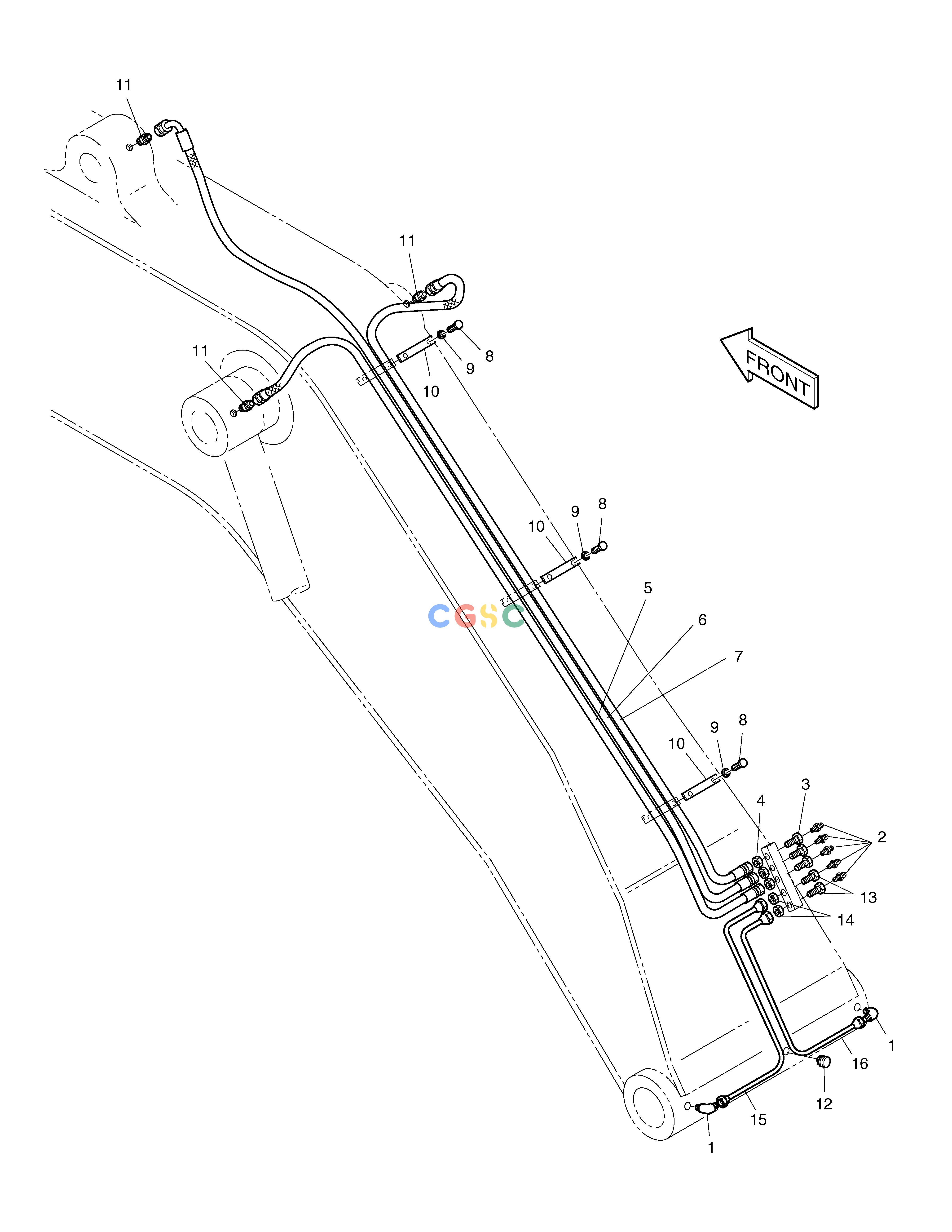

斗山零件查询FRONT LUBRICATION PIPING SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
793 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2104A
|
[-] |
FRONT LUBRICATOR
|
|
| 1. |
2181-1925
|
[2] |
ELBOW
|
|
| 10. |
124-00014
|
[3] |
CLAMP
|
|
| 11. |
2181-1110D30
|
[3] |
ADAPTER
|
|
| 12. |
S3524403
|
[1] |
PLUG
|
|
| 13. |
181-00525
|
[2] |
REDUCER
|
|
| 14. |
S4032833
|
[2] |
NUT
|
|
| 15. |
140-00657
|
[1] |
PIPE
|
|
| 16. |
140-00658
|
[1] |
PIPE
|
|
| 2. |
S6710041
|
[5] |
NIPPLE,GREASE
|
|
| 3. |
181-00103
|
[3] |
REDUCER
|
|
| 4. |
121-00006
|
[3] |
NUT
|
|
| 5. |
2184-1045D131
|
[1] |
HOSE PF1/4-2700L
|
|
| 6. |
2184-1046D194
|
[1] |
HOSE PF1/4-2800L
|
|
| 7. |
2184-1045D127
|
[1] |
HOSE PF1/4-2600L
|
|
| 8. |
S0511553
|
[6] |
BOLT M10X1.5X14
|
|
| 9. |
S5102603
|
[6] |
. WASHER
|
|
