斗山零件查询FRONT PIPING SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
461 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

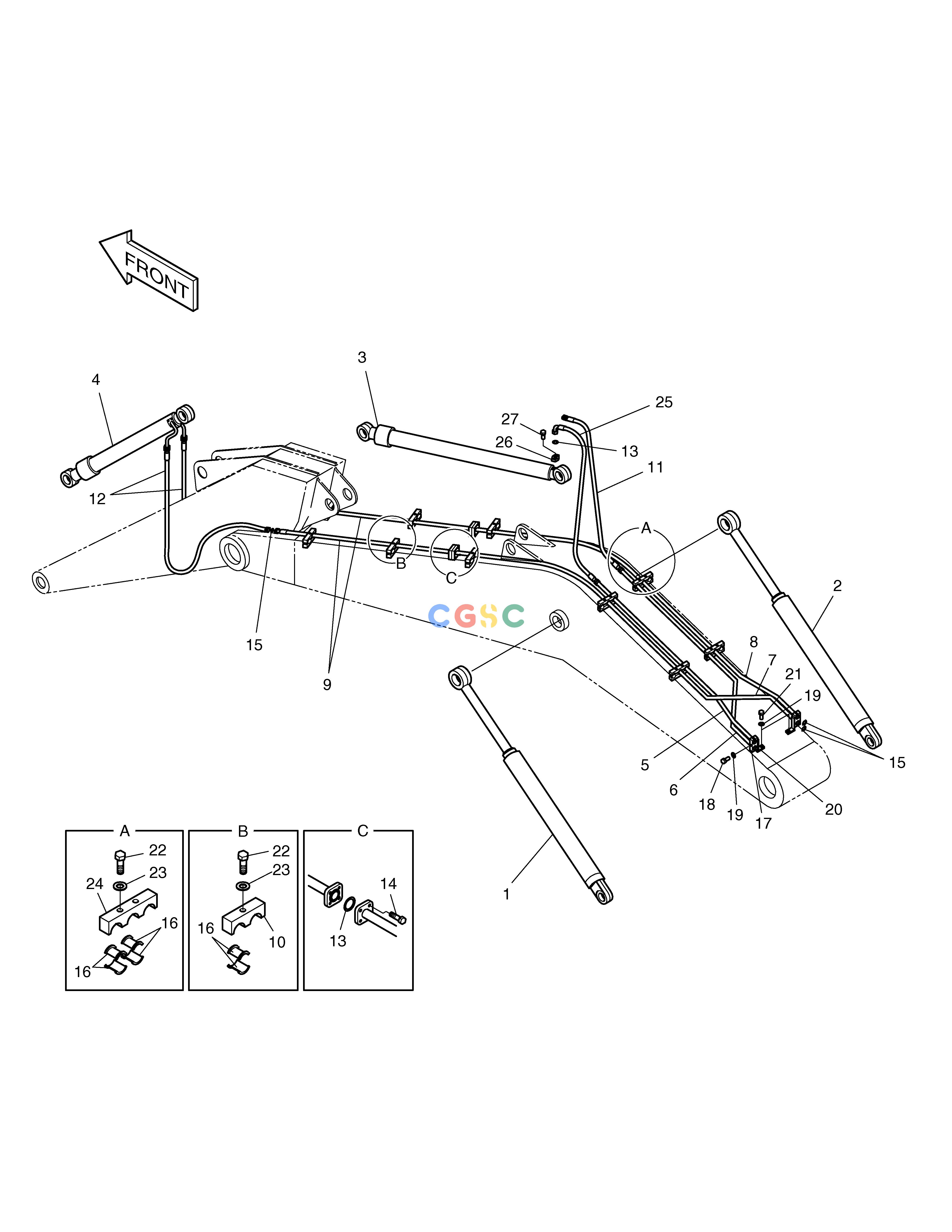

2400-2103A
|
[-] |
FRONT PIPING
|
|
| 1. |
2440-9344A
|
[1] |
CYLINDER;BOOM(L.H.)
|
|
| 10. |
124-00011
|
[6] |
CLAMP;PIPE
|
|
| 11. |
2184-1196D112
|
[1] |
HOSE 3/4-950L
|
|
| 12. |
2184-1196D156
|
[2] |
HOSE 3/4-1500L
|
|
| 13. |
2180-1026D2
|
[3] |
O-RING
|
|
| 14. |
S2212466
|
[8] |
BOLT
|
|
| 15. |
S8030121
|
[11] |
O-RING
|
|
| 16. |
2161-2250A
|
[36] |
RUBBER
|
|
| 17. |
2124-1599
|
[2] |
CLAMP
|
|
| 18. |
S0560853
|
[2] |
BOLT M12X1.75X55
|
|
| 19. |
S5102703
|
[4] |
WASHER
|
|
| 2. |
2440-9345A
|
[1] |
CYLINDER;BOOM(R.H)
|
|
| 20. |
195-00178
|
[2] |
BRACKET
|
|
| 21. |
S0515253
|
[2] |
. BOLT
|
|
| 22. |
S0565466
|
[14] |
BOLT
|
|
| 23. |
S5102903
|
[14] |
WASHER
|
|
| 24. |
124-00012
|
[4] |
CLAMP;PIPE
|
|
| 25. |
2184-1200D11
|
[1] |
HOSE 3/4-950L
|
|
| 26. |
2181-9079
|
[2] |
FLANGE
|
|
| 27. |
S2212066
|
[4] |
BOLT
|
|
| 3. |
440-00020A
|
[1] |
CYLINDER;ARM
|
|
| 4. |
440-00021A
|
[1] |
CYLINDER;BUCKET
|
|
| 5. |
140-00130
|
[1] |
PIPE;ARM CROWD
|
|
| 6. |
140-00131A
|
[1] |
PIPE;ARM DUMP
|
|
| 7. |
140-00132A
|
[1] |
PIPE;BUCKET CROWD
|
|
| 8. |
140-00133
|
[1] |
PIPE;BUCKET DUMP
|
|
| 9. |
140-00134A
|
[2] |
PIPE;BUCKET
|
|
