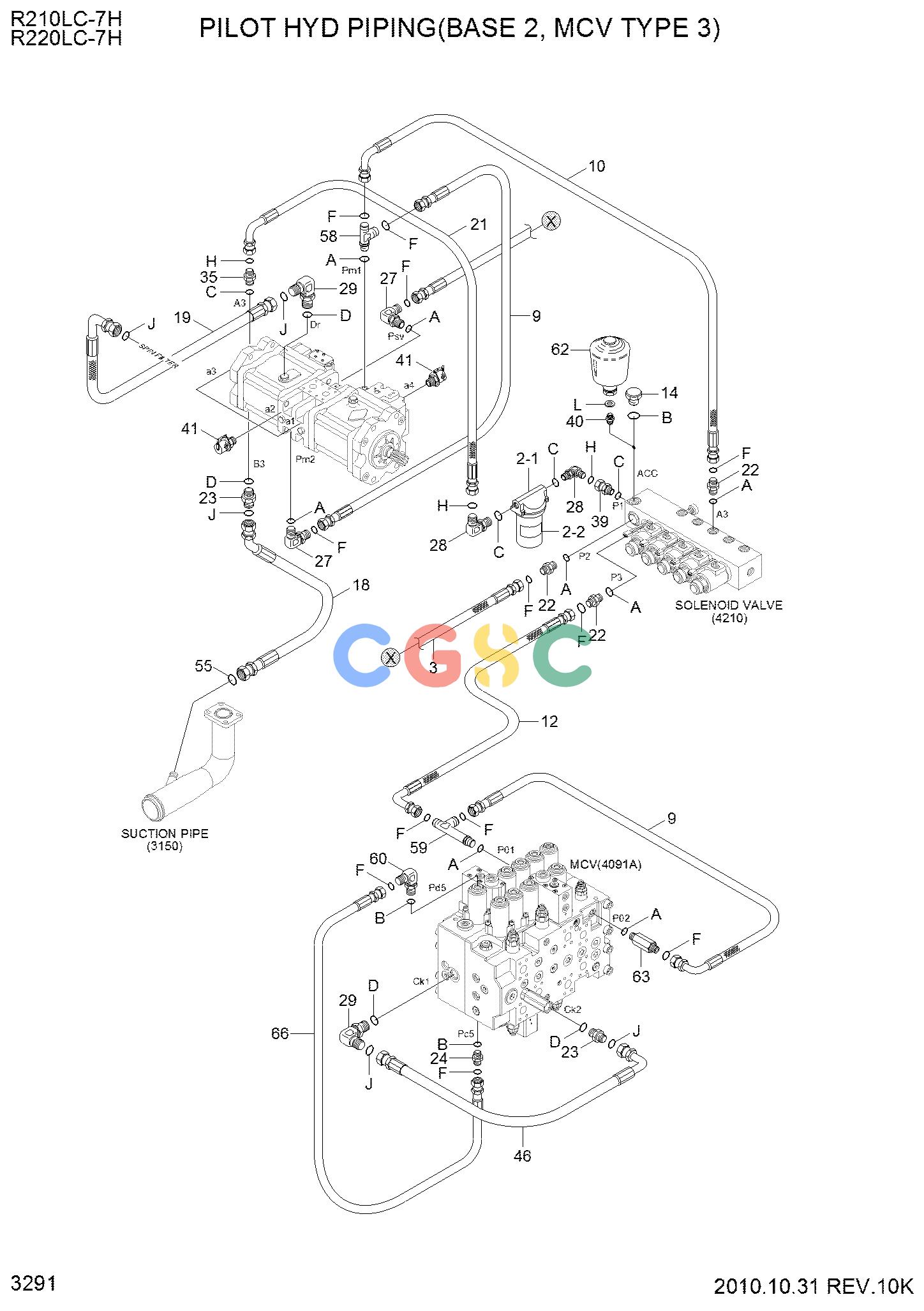

现代零件查询R210/220LC-7H PILOT HYD PIPING(BASE 2, MCV TYPE 3)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
31E3-0017
|
[1] |
FILTER-LINE
|
|
| 2-1. |
31E3-0044
|
[1] |
BODY
|
|
| 2-2. |
31E3-0018
|
[1] |
ELEMENT-LINE FILTER
|
|
| 3. |
P910-042008
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 3. |
X400-042008
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 9. |
P930-042012
|
[2] |
HOSE ASSY-ORFS 0X90
|
|
| 9. |
X420-042012
|
[2] |
HOSE ASSY-ORFS 0X90
|
|
| 10. |
P910-042010
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 10. |
X400-042010
|
[1] |
HOSE ASSY-SYNF,ORFS
|
|
| 12. |
P930-042041
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 12. |
X420-042041
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 14. |
P220-110103
|
[1] |
PLUG-HEX
|
|
| 18. |
P920-122009
|
[1] |
HOSE ASSY-ORFS 0X45
|
|
| 19. |
P930-122013
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 21. |
P930-082012
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 22. |
X500-110001
|
[3] |
CONNECTOR-ORFS
|
|
| 23. |
X500-110004
|
[2] |
CONNECTOR-ORFS
|
|
| 24. |
X500-110013
|
[1] |
CONNECTOR-ORFS
|
|
| 27. |
X520-110001
|
[2] |
ELBOW-90,ORFS
|
|
| 28. |
X520-110003
|
[2] |
ELBOW-90,ORFS
|
|
| 29. |
X520-110004
|
[2] |
ELBOW-90,ORFS
|
|
| 35. |
X500-110003
|
[1] |
CONNECTOR-ORFS
|
|
| 39. |
31N6-22400
|
[1] |
ADAPTOR
|
|
| 40. |
31N6-24200
|
[1] |
CONNECTOR
|
|
| 41. |
31EK-11130
|
[1] |
COUPLING-SCREW
|
|
| 41. |
31EK-11130
|
[3] |
COUPLING-SCREW
|
|
| 55. |
S621-018001
|
[1] |
O-RING
|
|
| 58. |
X820-045151
|
[1] |
TEE-R/TYPE,ORFS
|
|
| 59. |
31N4-22150
|
[1] |
TEE-LONG,ORFS
|
|
| 60. |
X520-110012
|
[1] |
ELBOW-90,ORFS
|
|
| 62. |
31E3-3187
|
[1] |
ACCUMULATOR
|
|
| 63. |
X511-104513
|
[1] |
CONNECTOR-LONG,ORFS
|
|
| 66. |
P910-042016
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 66. |
X400-042021
|
[1] |
HOSE ASSY-SYNF,ORFS
|
|
