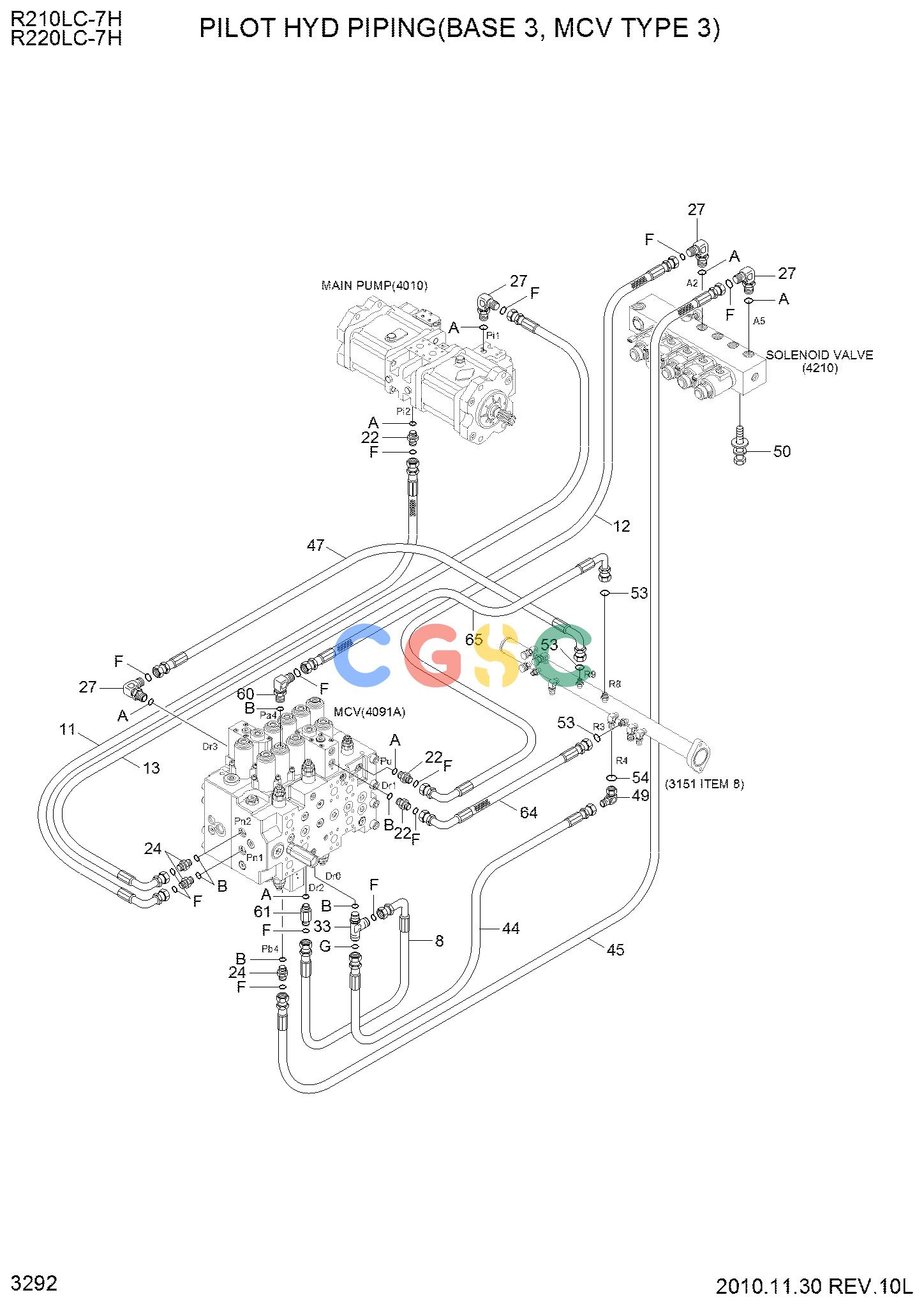

现代零件查询R210/220LC-7H PILOT HYD PIPING(BASE 3, MCV TYPE 3)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
854 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 8. |
P930-042009
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 8. |
X420-042009
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 11. |
P930-043046
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 12. |
P930-042041
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 12. |
X420-042041
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 13. |
P930-043055
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 22. |
X500-110001
|
[3] |
CONNECTOR-ORFS
|
|
| 24. |
X500-110013
|
[3] |
CONNECTOR-ORFS
|
|
| 27. |
X520-110001
|
[4] |
ELBOW-90,ORFS
|
|
| 33. |
X820-065152
|
[1] |
TEE-R/TYPE,ORFS
|
|
| 44. |
P910-062016
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 44. |
X400-062016
|
[1] |
HOSE ASSY-SYNF,ORFS
|
|
| 44. |
P910-062016
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 45. |
P910-042039
|
[1] |
HOSE ASSY-ORFS 0X0
|
|
| 45. |
X400-042039
|
[1] |
HOSE ASSY-SYNF,ORFS
|
|
| 47. |
P930-042010
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 47. |
X420-042010
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 49. |
X850-525200
|
[1] |
ELBOW-90,SWIVEL,ORFS
|
|
| 50. |
S035-082526
|
[1] |
BOLT-W/WASHER
|
|
| 53. |
S621-011001
|
[3] |
O-RING
|
|
| 54. |
S621-012001
|
[1] |
O-RING
|
|
| 60. |
X520-110012
|
[1] |
ELBOW-90,ORFS
|
|
| 61. |
31N8-40100
|
[1] |
CONNECTOR-LONG,ORFS
|
|
| 64. |
P930-042005
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 64. |
X420-042005
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 64. |
P930-042005
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 65. |
P930-042008
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 65. |
X420-042008
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
