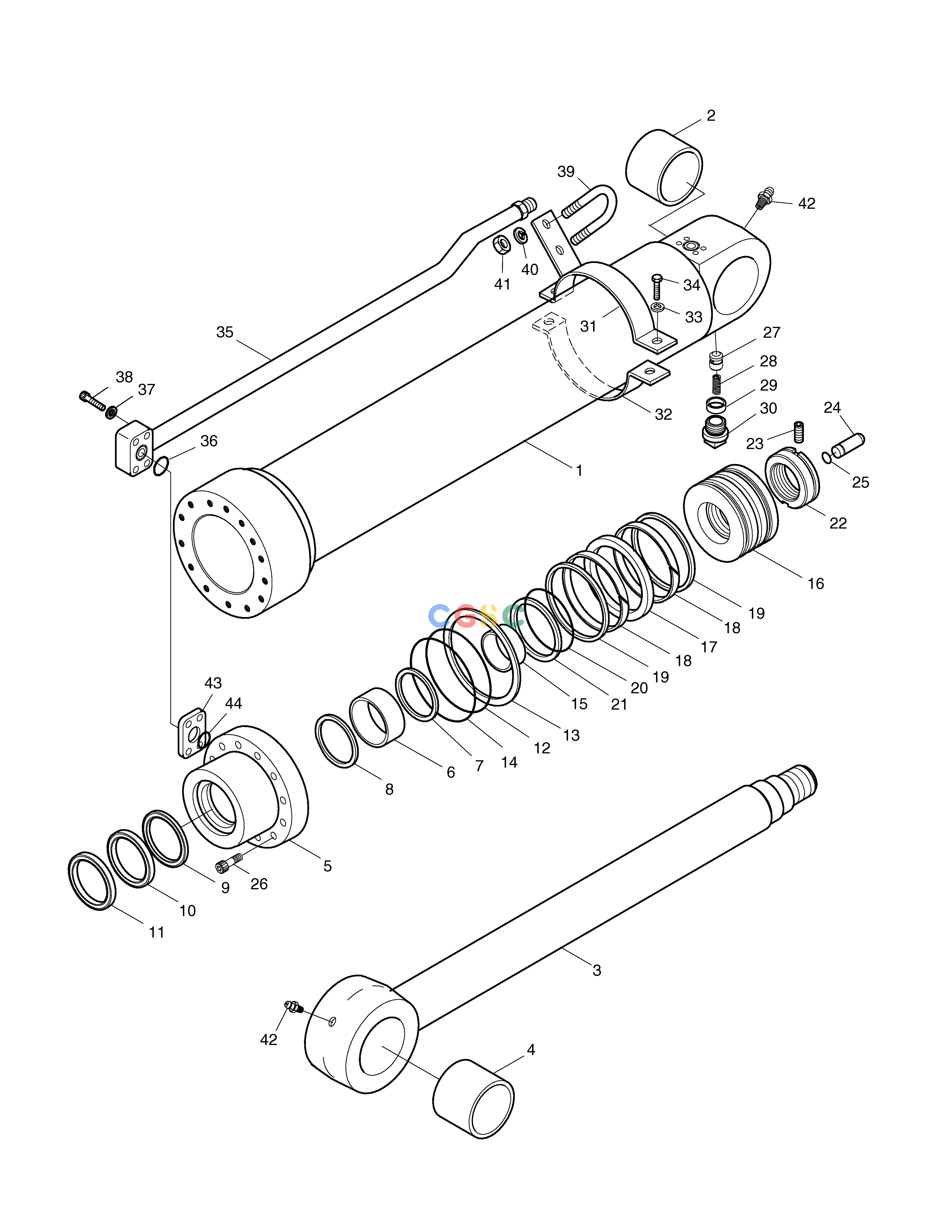

斗山零件查询ARM CYLINDER SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
155 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
440-00020AKT
|
[1] |
SEAL KIT
|
|
| -. |
440-00020A
|
[1] |
CYLINDER;ARM
|
|
| 1. |
53A579-0
|
[1] |
TUBE ASS'Y
|
|
| 10. |
E6020300
|
[1] |
WIPER;DUST
|
|
| 11. |
00M315-0
|
[1] |
RING;RETAINING
|
|
| 12. |
E6311641
|
[1] |
O-RING
|
|
| 13. |
80B499-0
|
[1] |
RING;BACK UP
|
|
| 14. |
E6311661
|
[1] |
O-RING
|
|
| 15. |
00C306-0
|
[1] |
RING;CUSHION
|
|
| 16. |
53A583-0
|
[1] |
PISTON
|
|
| 17. |
E5130280
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
00Z106-0
|
[2] |
RING;WEAR
|
|
| 19. |
00R098-0
|
[2] |
RING;SLYD
|
|
| 2. |
53A580-0
|
[1] |
BUSH;STEEL
|
|
| 20. |
E6311341
|
[1] |
O-RING
|
|
| 21. |
53U252-0
|
[2] |
RING;BACK UP
|
|
| 22. |
53U374-1
|
[1] |
NUT;PISTON
|
|
| 23. |
E1330544
|
[1] |
SCREW;SET
|
|
| 24. |
03A545-0
|
[1] |
PLUNGER;CUSHION
|
|
| 25. |
03A714-0
|
[1] |
RING;STOP
|
|
| 26. |
E0502129
|
[10] |
BOLT;SOCKET
|
|
| 27. |
03A727-0
|
[1] |
VALVE;CHECK
|
|
| 28. |
03A729-0
|
[1] |
SPRING
|
|
| 29. |
03A728-0
|
[1] |
SUPPORT;SPRING
|
|
| 3. |
53A581-0
|
[1] |
ROD ASS'Y
|
|
| 30. |
E1500030
|
[1] |
PLUG
|
|
| 31. |
53A584-0
|
[1] |
PIPE BAND ASS'Y
|
|
| 32. |
03U781-0
|
[1] |
BAND;PIPE
|
|
| 33. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 34. |
E0020673
|
[2] |
BOLT;HEX
|
|
| 35. |
53A585-0
|
[1] |
PIPE ASS'Y
|
|
| 36. |
E6300621
|
[1] |
O-RING
|
|
| 37. |
E3110102
|
[4] |
WASHER;SPRING
|
|
| 38. |
E0501246
|
[4] |
BOLT;SOCKET
|
|
| 39. |
03A577-0
|
[1] |
U-BOLT
|
|
| 4. |
03A476-1
|
[1] |
BUSH;STEEL
|
|
| 40. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 41. |
E2022033
|
[2] |
NUT;HEX
|
|
| 42. |
E8841022
|
[1] |
NIPPLE;GREASE
|
|
| 43. |
53A595-0
|
[1] |
SPACER
|
|
| 44. |
E6300621
|
[1] |
O-RING
|
|
| 5. |
53A582-0
|
[1] |
COVER;ROD
|
|
| 6. |
E8412281
|
[1] |
BUSH;DD
|
|
| 7. |
00M313-0
|
[1] |
RING;RETAINING
|
|
| 8. |
E5500300
|
[1] |
SEAL;BUFFER
|
|
| 9. |
E5303200
|
[1] |
U-PACKING
|
|
