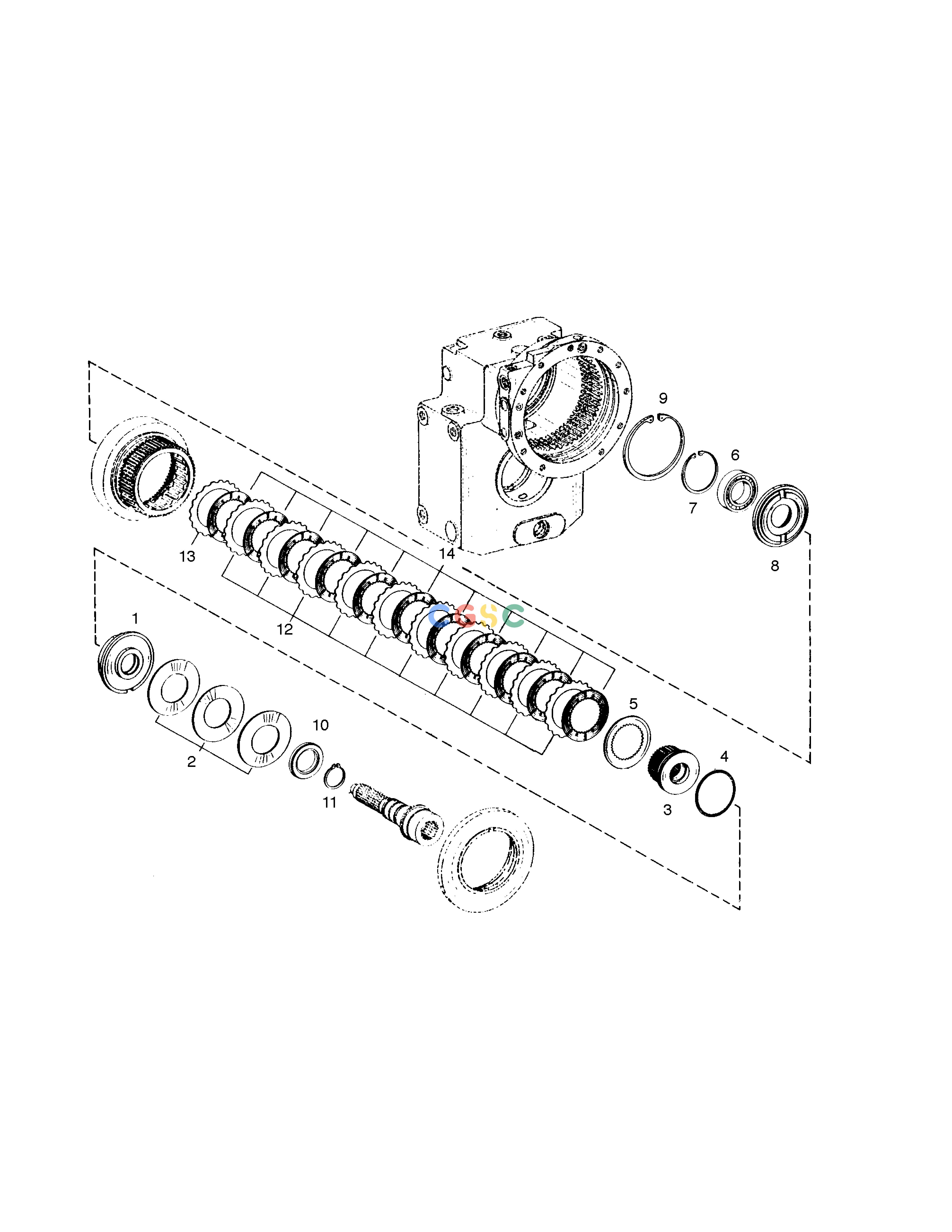

斗山零件查询2nd GEAR CLUTCH-TRANSMISSION SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
352 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
4143 352 010
|
[1] |
PISTON
|
|
| 10. |
4143 352 021
|
[1] |
SHIM;SUPPORT
|
|
| 11. |
0730 501 439
|
[1] |
RING;RETAINING
|
|
| 12. |
4645 351 020
|
[10] |
DISC;O.CLUTCH OPTIONAL S=1.2
|
|
| 13. |
4645 351 020
|
[1] |
DISC;O.CLUTCH OPTIONAL S=1.2
|
|
| 13. |
4645 351 024
|
[1] |
DISC;O.CLUTCH OPTIONAL S=1.8
|
|
| 13. |
4645 351 001
|
[1] |
DISC;O.CLUTCH OPTIONAL S=1.0
|
|
| 13. |
4143 352 006
|
[3] |
DISC;O.CLUTCH OPTIONAL S=1.4
|
|
| 14. |
4645 251 021
|
[11] |
DISC;CLUTCH LIN.
|
|
| 2. |
0750 106 018
|
[1] |
SPRING;CUP
|
|
| 3. |
4143 352 018
|
[1] |
CARRIER;DISC
|
|
| 4. |
0501 312 498
|
[1] |
GASKET
|
|
| 5. |
4143 352 020
|
[1] |
SHEET
|
|
| 6. |
0750 116 109
|
[1] |
BEARING;BALL
|
|
| 7. |
0630 502 036
|
[1] |
RING;RETAINING
|
|
| 8. |
4143 352 019
|
[1] |
DISC;CENTERING
|
|
| 9. |
0630 502 048
|
[1] |
RING;RETAINING
|
|
