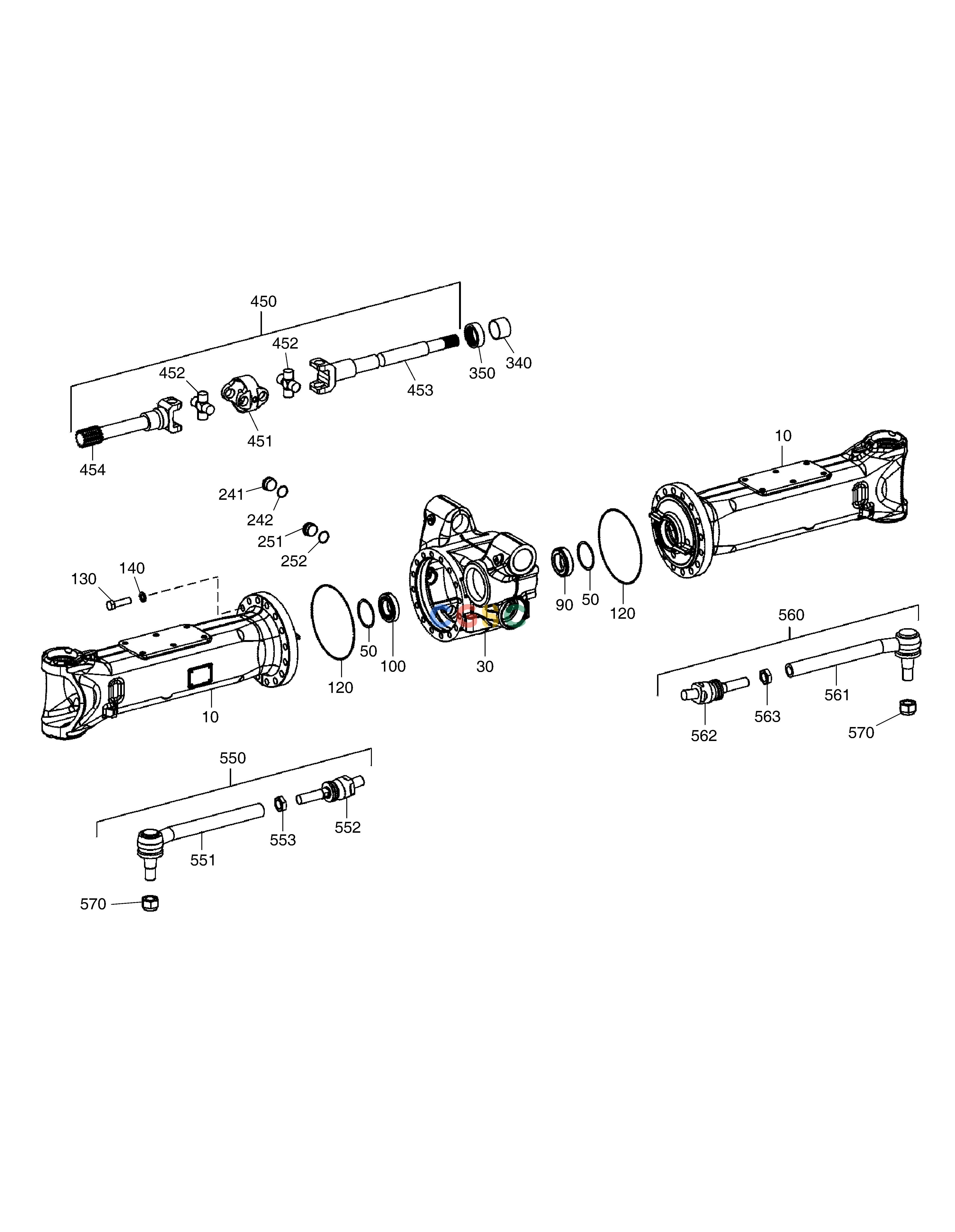

斗山零件查询AXLE CASING - FRONT AXLE SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
648 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
K9005113
|
[2] |
CASING;AXLE
|
|
| 100. |
K9000114
|
[1] |
BEARING;ROLLER
|
|
| 120. |
2.180-00450
|
[2] |
O-RING
|
|
| 130. |
K9001477
|
[32] |
SCREW
|
|
| 140. |
2.114-00867
|
[32] |
WASHER
|
|
| 241. |
K9001478
|
[1] |
PLUG;SCREW
|
|
| 242. |
1.180-00135
|
[1] |
. O-RING
|
|
| 251. |
K9001479
|
[1] |
PLUG;SCREW
|
|
| 252. |
1.180-00135
|
[1] |
. O-RING
|
|
| 30. |
K9001481
|
[1] |
HOUSING;DIFFERENTIAL
|
|
| 340. |
1.110-00023
|
[2] |
BUSH
|
|
| 350. |
2.180-00889
|
[2] |
SEAL;SHAFT
|
|
| 450. |
K9005085
|
[2] |
SHAFT;UNIVERSAL
|
|
| 451. |
K9004064
|
[1] |
FORK;SHIFT
|
|
| 452. |
K9005086
|
[2] |
JOINT;CROSS
|
|
| 453. |
K9005090
|
[1] |
FORK;JOINT
|
|
| 454. |
K9005089
|
[1] |
FORK;JOINT
|
|
| 50. |
1.114-00057
|
[2] |
SHIM A=1.95
|
|
| 50. |
1.114-00060
|
[2] |
SHIM A=0.1
|
|
| 50. |
1.114-00061
|
[2] |
SHIM A=0.15
|
|
| 50. |
1.114-00063
|
[2] |
SHIM A=0.25
|
|
| 50. |
1.114-00065
|
[2] |
SHIM A=0.3
|
|
| 50. |
1.114-00066
|
[2] |
SHIM A=0.35
|
|
| 50. |
1.114-00068
|
[2] |
SHIM A=0.65
|
|
| 50. |
1.114-00069
|
[2] |
SHIM A=0.70
|
|
| 50. |
1.114-00070
|
[2] |
SHIM A=0.75
|
|
| 50. |
1.114-00071
|
[2] |
SHIM A=0.85
|
|
| 50. |
1.114-00073
|
[2] |
SHIM A=0.90
|
|
| 50. |
1.114-00074
|
[2] |
SHIM A=0.95
|
|
| 50. |
1.114-00079
|
[2] |
SHIM A=1.05
|
|
| 50. |
1.114-00083
|
[2] |
SHIM A=1.10
|
|
| 50. |
1.114-00085
|
[2] |
SHIM A=1.15
|
|
| 50. |
1.114-00091
|
[2] |
SHIM A=1.25
|
|
| 50. |
1.114-00095
|
[2] |
SHIM A=1.30
|
|
| 50. |
1.114-00097
|
[2] |
SHIM A=1.35
|
|
| 50. |
1.114-00101
|
[2] |
SHIM A=1.4
|
|
| 50. |
1.114-00103
|
[2] |
SHIM A=1.45
|
|
| 50. |
1.114-00108
|
[2] |
SHIM A=1.50
|
|
| 50. |
1.114-00110
|
[2] |
SHIM A=1.55
|
|
| 50. |
1.114-00113
|
[2] |
SHIM A=1.60
|
|
| 50. |
1.114-00114
|
[2] |
SHIM A=1.65
|
|
| 50. |
1.114-00125
|
[2] |
SHIM A=2.00
|
|
| 50. |
1.114-00198
|
[2] |
SHIM A=1.47
|
|
| 50. |
1.114-00202
|
[2] |
SHIM A=1.63
|
|
| 50. |
1.114-00203
|
[2] |
SHIM A=1.70
|
|
| 50. |
1.114-00204
|
[2] |
SHIM A=1.75
|
|
| 50. |
1.114-00207
|
[2] |
SHIM A=1.80
|
|
| 50. |
1.114-00208
|
[2] |
SHIM A=1.85
|
|
| 50. |
1.114-00209
|
[2] |
SHIM A=1.90
|
|
| 50. |
2.114-00571
|
[2] |
SHIM A=0.2
|
|
| 50. |
2.114-00572
|
[2] |
SHIM A=0.4
|
|
| 50. |
2.114-00573
|
[2] |
SHIM A=0.45
|
|
| 50. |
2.114-00574
|
[2] |
SHIM A=0.5
|
|
| 50. |
2.114-00575
|
[2] |
SHIM A=0.55
|
|
| 50. |
2.114-00576
|
[2] |
SHIM A=0.6
|
|
| 50. |
2.114-00577
|
[2] |
SHIM A=0.8
|
|
| 50. |
2.114-00579
|
[2] |
SHIM A=1.0
|
|
| 50. |
2.114-00580
|
[2] |
SHIM A=1.2
|
|
| 550. |
K9001490
|
[1] |
ROD;TRACK(L.H)
|
|
| 551. |
K9001491
|
[1] |
JOINT;BALL
|
|
| 552. |
K9001492
|
[1] |
JOINT;AXIAL
|
|
| 553. |
K9001493
|
[1] |
NUT
|
|
| 560. |
K9001494
|
[1] |
ROD;TRACK(R.H)
|
|
| 561. |
K9001495
|
[1] |
JOINT;BALL
|
|
| 562. |
K9001492
|
[1] |
JOINT;AXIAL
|
|
| 563. |
K9001493
|
[1] |
NUT
|
|
| 570. |
1.121-00022
|
[2] |
NUT
|
|
| 90. |
K9001476
|
[1] |
BEARING;TA.ROLL.
|
|
