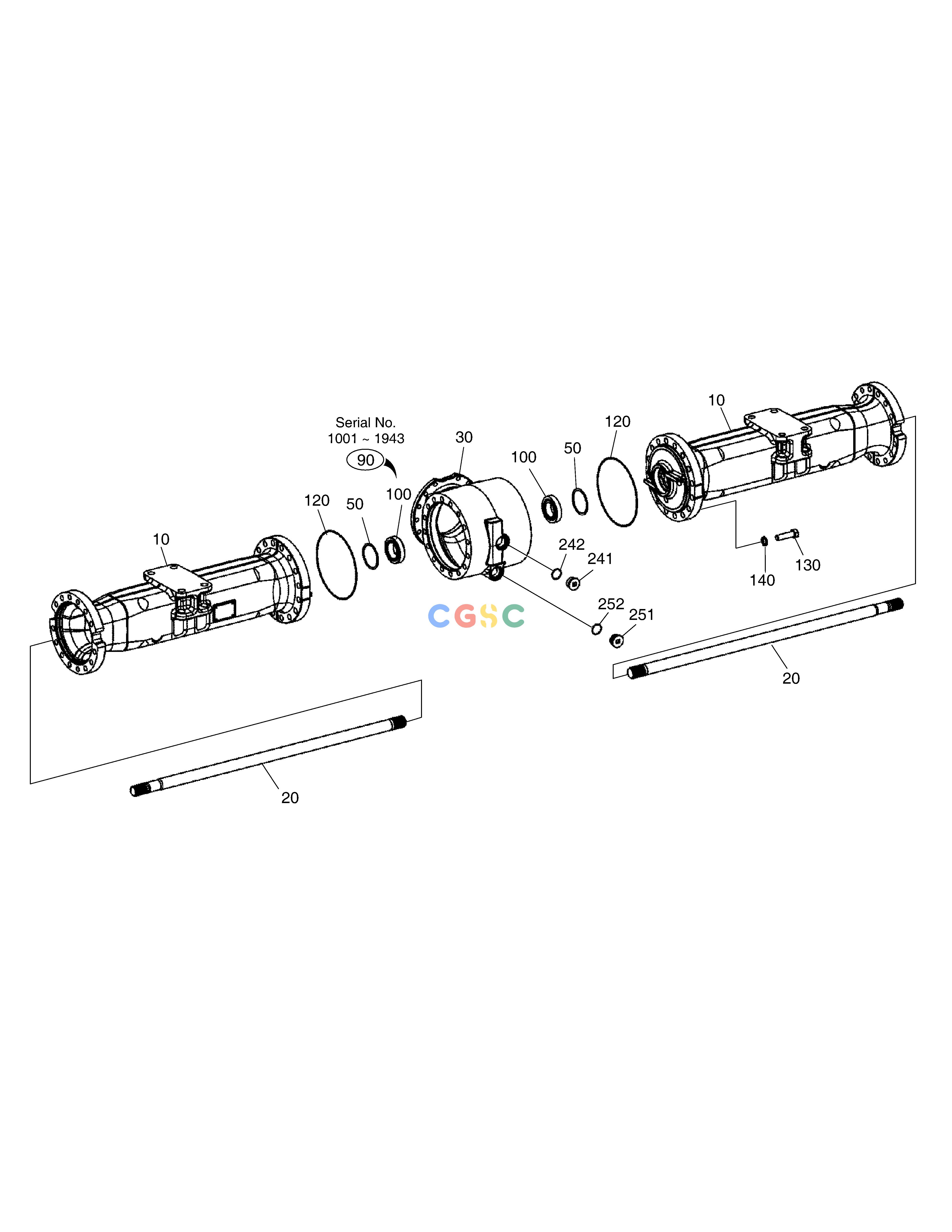

斗山零件查询AXLE CASING - REAR AXLE SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
475 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
110913-00107
|
[2] |
|
|
| 10. |
K9005105
|
[2] |
CASING;AXLE
|
|
| 100. |
K9000114
|
[2] |
BEARING;ROLLER
|
|
| 100. |
K9000114
|
[1] |
BEARING;ROLLER
|
|
| 120. |
2.180-00450
|
[2] |
O-RING
|
|
| 130. |
1.120-00134
|
[32] |
SCREW;HEXAGON
|
|
| 130. |
K9001477
|
[32] |
SCREW
|
|
| 140. |
2.114-00867
|
[32] |
WASHER
|
|
| 20. |
130712-00409
|
[2] |
|
|
| 20. |
K9005106
|
[2] |
SHAFT;STUB
|
|
| 241. |
K9001478
|
[1] |
PLUG;SCREW
|
|
| 242. |
1.180-00135
|
[1] |
. O-RING
|
|
| 251. |
K9001479
|
[1] |
PLUG;SCREW
|
|
| 252. |
1.180-00135
|
[1] |
. O-RING
|
|
| 30. |
190113-00024
|
[1] |
|
|
| 30. |
190113-00013
|
[1] |
|
|
| 50. |
1.114-00079
|
[2] |
SHIM A=1.05
|
|
| 50. |
1.114-00083
|
[2] |
SHIM A=1.10
|
|
| 50. |
1.114-00085
|
[2] |
SHIM A=1.15
|
|
| 50. |
1.114-00091
|
[2] |
SHIM A=1.25
|
|
| 50. |
1.114-00095
|
[2] |
SHIM A=1.30
|
|
| 50. |
1.114-00097
|
[2] |
SHIM A=1.35
|
|
| 50. |
1.114-00101
|
[2] |
SHIM A=1.4
|
|
| 50. |
1.114-00103
|
[2] |
SHIM A=1.45
|
|
| 50. |
1.114-00108
|
[2] |
SHIM A=1.50
|
|
| 50. |
1.114-00110
|
[2] |
SHIM A=1.55
|
|
| 50. |
1.114-00113
|
[2] |
SHIM A=1.60
|
|
| 50. |
1.114-00114
|
[2] |
SHIM A=1.65
|
|
| 50. |
1.114-00125
|
[2] |
SHIM A=2.00
|
|
| 50. |
1.114-00198
|
[2] |
SHIM A=1.47
|
|
| 50. |
1.114-00202
|
[2] |
SHIM A=1.63
|
|
| 50. |
1.114-00203
|
[2] |
SHIM A=1.70
|
|
| 50. |
1.114-00204
|
[2] |
SHIM A=1.75
|
|
| 50. |
1.114-00207
|
[2] |
SHIM A=1.80
|
|
| 50. |
1.114-00208
|
[2] |
SHIM A=1.85
|
|
| 50. |
1.114-00209
|
[2] |
SHIM A=1.90
|
|
| 50. |
2.114-00571
|
[2] |
SHIM A=0.2
|
|
| 50. |
2.114-00572
|
[2] |
SHIM A=0.4
|
|
| 50. |
2.114-00573
|
[2] |
SHIM A=0.45
|
|
| 50. |
2.114-00574
|
[2] |
SHIM A=0.5
|
|
| 50. |
2.114-00575
|
[2] |
SHIM A=0.55
|
|
| 50. |
2.114-00576
|
[2] |
SHIM A=0.6
|
|
| 50. |
2.114-00577
|
[2] |
SHIM A=0.8
|
|
| 50. |
2.114-00579
|
[2] |
SHIM A=1.0
|
|
| 50. |
2.114-00580
|
[2] |
SHIM A=1.2
|
|
| 50. |
1.114-00060
|
[2] |
SHIM A=0.1
|
|
| 50. |
1.114-00061
|
[2] |
SHIM A=0.15
|
|
| 50. |
1.114-00063
|
[2] |
SHIM A=0.25
|
|
| 50. |
1.114-00065
|
[2] |
SHIM A=0.3
|
|
| 50. |
1.114-00066
|
[2] |
SHIM A=0.35
|
|
| 50. |
1.114-00068
|
[2] |
SHIM A=0.65
|
|
| 50. |
1.114-00069
|
[2] |
SHIM A=0.70
|
|
| 50. |
1.114-00070
|
[2] |
SHIM A=0.75
|
|
| 50. |
1.114-00071
|
[2] |
SHIM A=0.85
|
|
| 50. |
1.114-00073
|
[2] |
SHIM A=0.90
|
|
| 50. |
1.114-00074
|
[2] |
SHIM A=0.95
|
|
| 50. |
1.114-00057
|
[2] |
SHIM A=1.95
|
|
| 90. |
K9001476
|
[1] |
BEARING;TA.ROLL.
|
|
