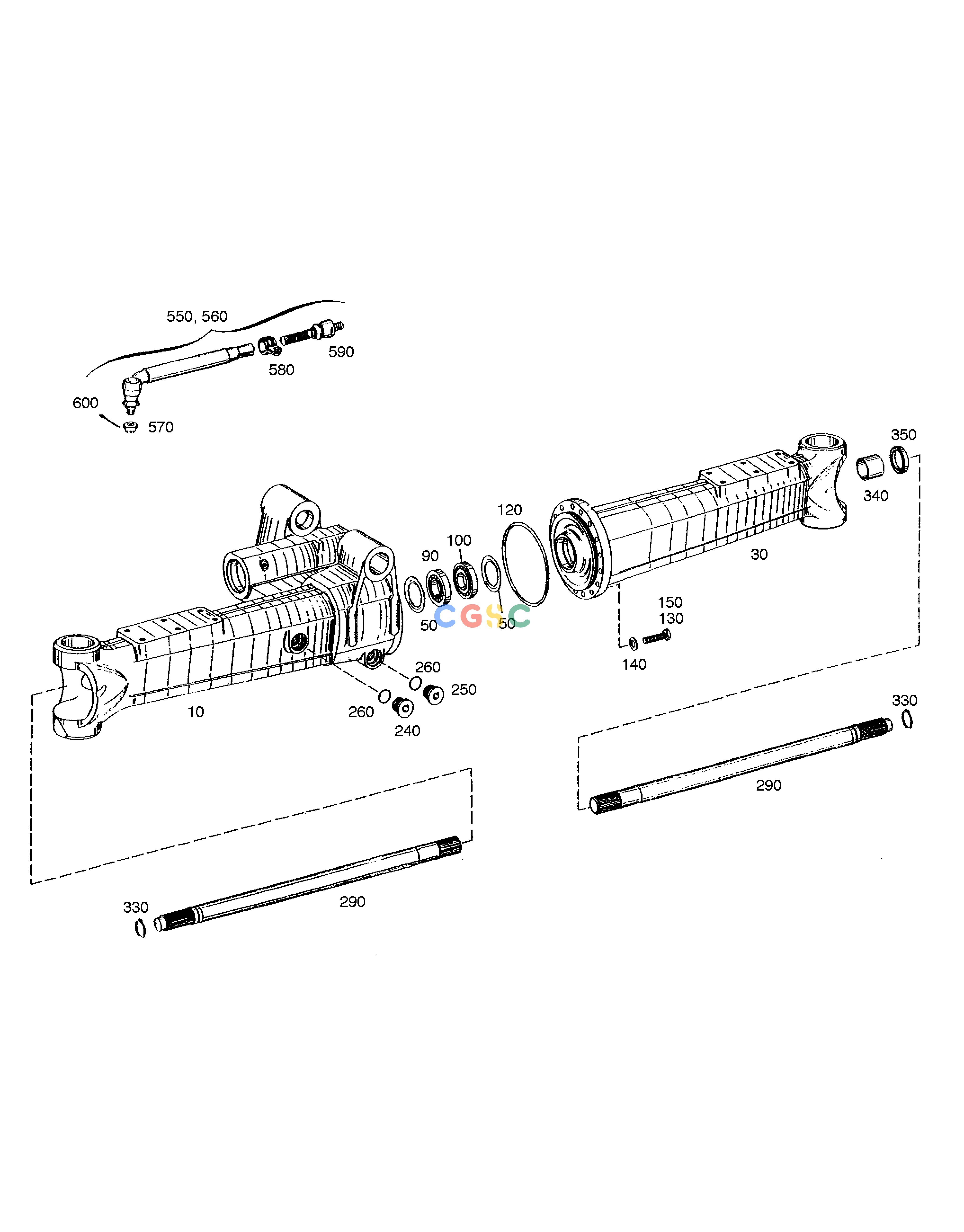

斗山零件查询AXLE CASING-FRONT AXLE SOLAR 185W-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
166 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
4472 317 032
|
[1] |
CASING;AXLE
|
|
| 100. |
0750 117 024
|
[1] |
BEARING;ROLLER
|
|
| 120. |
0634 304 012
|
[1] |
O-RING
|
|
| 130. |
0636 016 151
|
[15] |
SCREW;HEX. M18X60
|
|
| 140. |
0730 101 840
|
[16] |
WASHER
|
|
| 150. |
0736 008 053
|
[1] |
BOLT;FITTING
|
|
| 240. |
0636 302 018
|
[1] |
PLUG;SCREW
|
|
| 250. |
0750 108 029
|
[1] |
PLUG;SCREW
|
|
| 260. |
0634 303 485
|
[2] |
O-RING
|
|
| 290. |
4472 317 011
|
[2] |
SHAFT;STUB
|
|
| 30. |
4472 317 008
|
[1] |
CASING;AXLE
|
|
| 330. |
4472 354 026
|
[2] |
RING;RETAINING
|
|
| 340. |
0501 317 333
|
[2] |
BUSH
|
|
| 350. |
0750 110 138
|
[2] |
SEAL;SHAFT
|
|
| 50. |
0730 000 127
|
[2] |
SHIM A=0.10
|
|
| 50. |
0730 006 510
|
[2] |
SHIM A=0.15
|
|
| 50. |
0730 000 126
|
[2] |
SHIM A=0.20
|
|
| 50. |
0730 006 511
|
[2] |
SHIM A=0.25
|
|
| 50. |
0730 002 280
|
[2] |
SHIM A=0.30
|
|
| 50. |
0730 006 512
|
[2] |
SHIM A=0.35
|
|
| 50. |
0730 001 012
|
[2] |
SHIM A=0.40
|
|
| 50. |
0730 005 708
|
[2] |
SHIM A=0.45
|
|
| 50. |
0730 000 125
|
[2] |
SHIM A=0.50
|
|
| 50. |
0730 005 709
|
[2] |
SHIM A=0.55
|
|
| 50. |
0730 001 011
|
[2] |
SHIM A=0.60
|
|
| 50. |
0730 006 513
|
[2] |
SHIM A=0.65
|
|
| 50. |
0730 006 514
|
[2] |
SHIM A=0.70
|
|
| 50. |
0730 006 515
|
[2] |
SHIM A=0.75
|
|
| 50. |
0730 000 124
|
[2] |
SHIM A=0.80
|
|
| 50. |
0730 006 516
|
[2] |
SHIM A=0.85
|
|
| 50. |
0730 006 517
|
[2] |
SHIM A=0.90
|
|
| 50. |
0730 006 518
|
[2] |
SHIM A=0.95
|
|
| 50. |
0730 000 123
|
[2] |
SHIM A=1.00
|
|
| 50. |
0730 006 519
|
[2] |
SHIM A=1.05
|
|
| 50. |
0730 006 520
|
[2] |
SHIM A=1.10
|
|
| 50. |
0730 006 521
|
[2] |
SHIM A=1.15
|
|
| 50. |
0730 002 277
|
[2] |
SHIM A=1.20
|
|
| 50. |
0730 006 522
|
[2] |
SHIM A=1.25
|
|
| 50. |
0730 006 523
|
[2] |
SHIM A=1.30
|
|
| 50. |
0730 006 524
|
[2] |
SHIM A=1.35
|
|
| 50. |
0730 001 010
|
[2] |
SHIM A=1.40
|
|
| 50. |
0730 006 525
|
[2] |
SHIM A=1.45
|
|
| 50. |
0730 006 526
|
[2] |
SHIM A=1.50
|
|
| 50. |
0730 006 527
|
[2] |
SHIM A=1.55
|
|
| 50. |
0730 006 528
|
[2] |
SHIM A=1.60
|
|
| 50. |
0730 006 529
|
[2] |
SHIM A=1.65
|
|
| 50. |
0730 001 009
|
[2] |
SHIM A=2.00
|
|
| 50. |
0730 008 836
|
[2] |
SHIM A=1.47
|
|
| 50. |
0730 008 837
|
[2] |
SHIM A=1.63
|
|
| 50. |
0730 005 816
|
[2] |
SHIM A=1.75
|
|
| 50. |
0730 008 051
|
[2] |
SHIM A=1.70
|
|
| 50. |
0730 008 052
|
[2] |
SHIM A=1.80
|
|
| 50. |
0730 005 817
|
[2] |
SHIM A=1.85
|
|
| 50. |
0730 008 053
|
[2] |
SHIM A=1.90
|
|
| 50. |
0730 008 154
|
[2] |
SHIM A=1.95
|
|
| 550. |
0501 006 401
|
[1] |
ROD;TRACK(L.H)
|
|
| 560. |
0501 006 402
|
[1] |
ROD;TRACK(R.H)
|
|
| 570. |
0501 316 474
|
[2] |
NUT;LOCKING
|
|
| 580. |
0501 208 615
|
[2] |
CLIP;CLAMPING CPL.
|
|
| 590. |
0501 205 257
|
[2] |
JOINT;AXIAL CPL.
|
|
| 600. |
0631 701 048
|
[2] |
PIN;COTTER
|
|
| 90. |
0750 117 380
|
[1] |
BEARING;ROLLER
|
|
