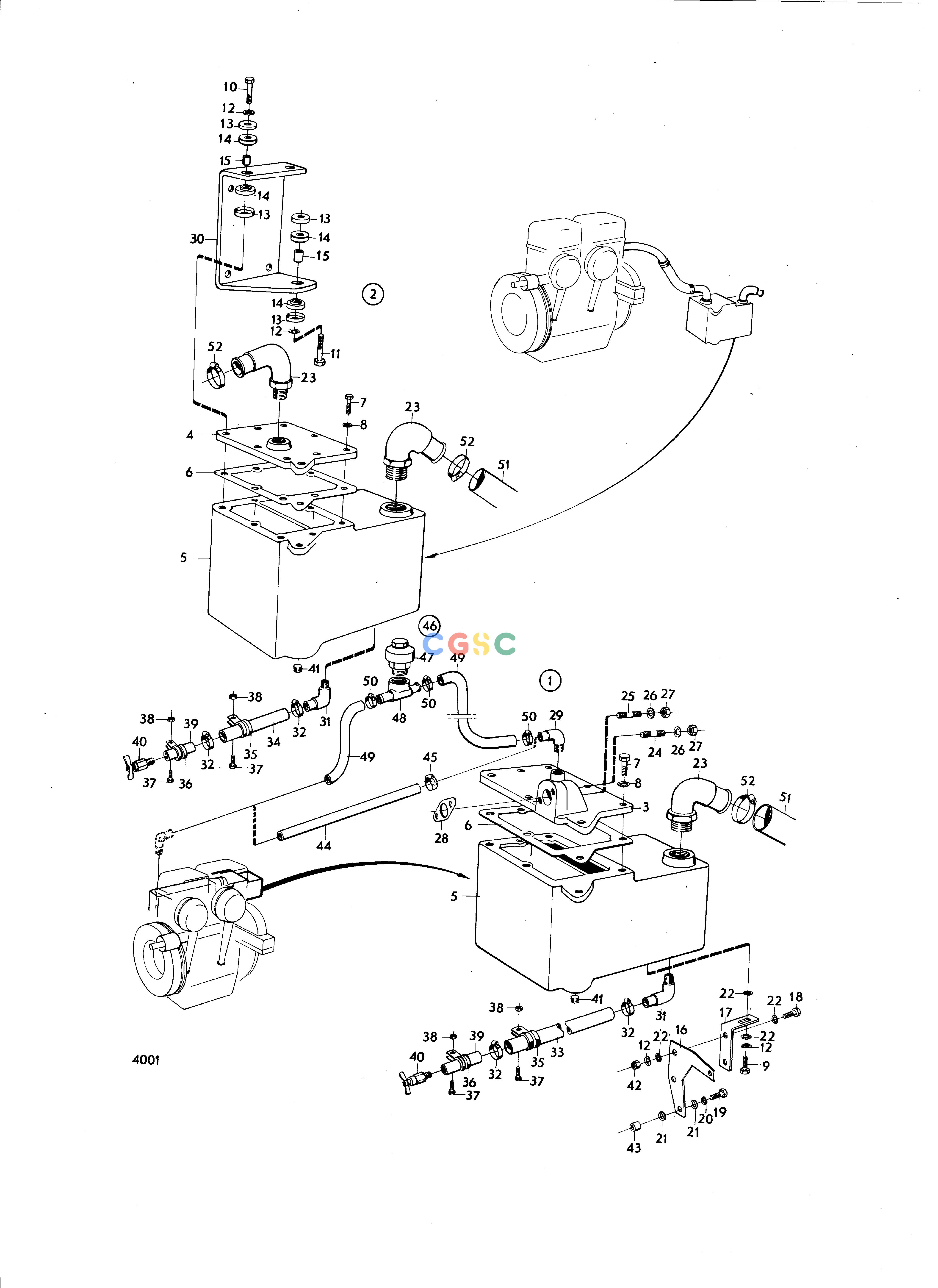

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BMiscellaneous EquipmentWater Cooled Exhaust Silencer with Installation Components, Earl. Pr.: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
589 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
For installation on engine.
|
| 3. |
833628
|
[1] |
End cover
|
|
| 5. |
|
|
|
|
| 6. |
833630
|
[1] |
Gasket
|
|
| 7. |
955297
|
[7] |
Hexagon screw
|
L=25mm
|
| 7. |
955295
|
[1] |
Hexagon screw
|
L=20mm
|
| 8. |
941907
|
[8] |
Spring washer
|
|
| 9. |
955295
|
[1] |
Hexagon screw
|
|
| 12. |
941907
|
[3] |
Spring washer
|
|
| 16. |
833665
|
[1] |
Bracket
|
|
| 17. |
833666
|
[1] |
Attaching bracket
|
|
| 18. |
940142
|
[2] |
Hexagon screw
|
|
| 19. |
955321
|
[2] |
Hexagon screw
|
|
| 20. |
941908
|
[2] |
Spring washer
|
|
| 21. |
955895
|
[4] |
Washer
|
|
| 22. |
960141
|
[5] |
Washer
|
|
| 23. |
833631
|
[1] |
Hose attachment
|
|
| 24. |
952997
|
[1] |
Stud
|
L=100mm
|
| 25. |
924090
|
[1] |
Stud
|
L=80mm
|
| 26. |
941908
|
[2] |
Spring washer
|
|
| 27. |
955783
|
[2] |
Hexagon nut
|
|
| 28. |
803374
|
[1] |
Gasket
|
|
| 29. |
801202
|
[1] |
Hose attachment
|
|
| 31. |
801197
|
[1] |
Hose attachment
|
|
| 32. |
961666
|
[2] |
Hose clamp
|
L=1500mm
|
| 33. |
952969
|
[1] |
Hose
|
L=2000mm
|
| 35. |
952634
|
[2] |
Clamp
|
|
| 36. |
952629
|
[1] |
Clamp
|
|
| 37. |
956094
|
[3] |
Cross recessed screw
|
|
| 38. |
955781
|
[3] |
Hexagon nut
|
|
| 39. |
833686
|
[1] |
Tube
|
|
| 40. |
82744
|
[1] |
Shut-off cock
|
|
| 41. |
813675
|
[2] |
Plug
|
|
| 42. |
955782
|
[2] |
Hexagon nut
|
|
| 43. |
821539
|
[2] |
Spacer sleeve
|
|
| 44. |
952969
|
[1] |
Hose
|
L=500mm
|
| 45. |
961666
|
[2] |
Hose clamp
|
|
| 46. |
|
|
|
Repl by 828271
|
| 47. |
|
|
|
|
| 48. |
|
|
|
|
| 49. |
13569
|
[1] |
Hose
|
L=2500mm
|
| 50. |
961666
|
[4] |
Hose clamp
|
|
| 51. |
833755
|
[1] |
Rubber hose
|
|
| 52. |
961672
|
[2] |
Hose clamp
|
|
