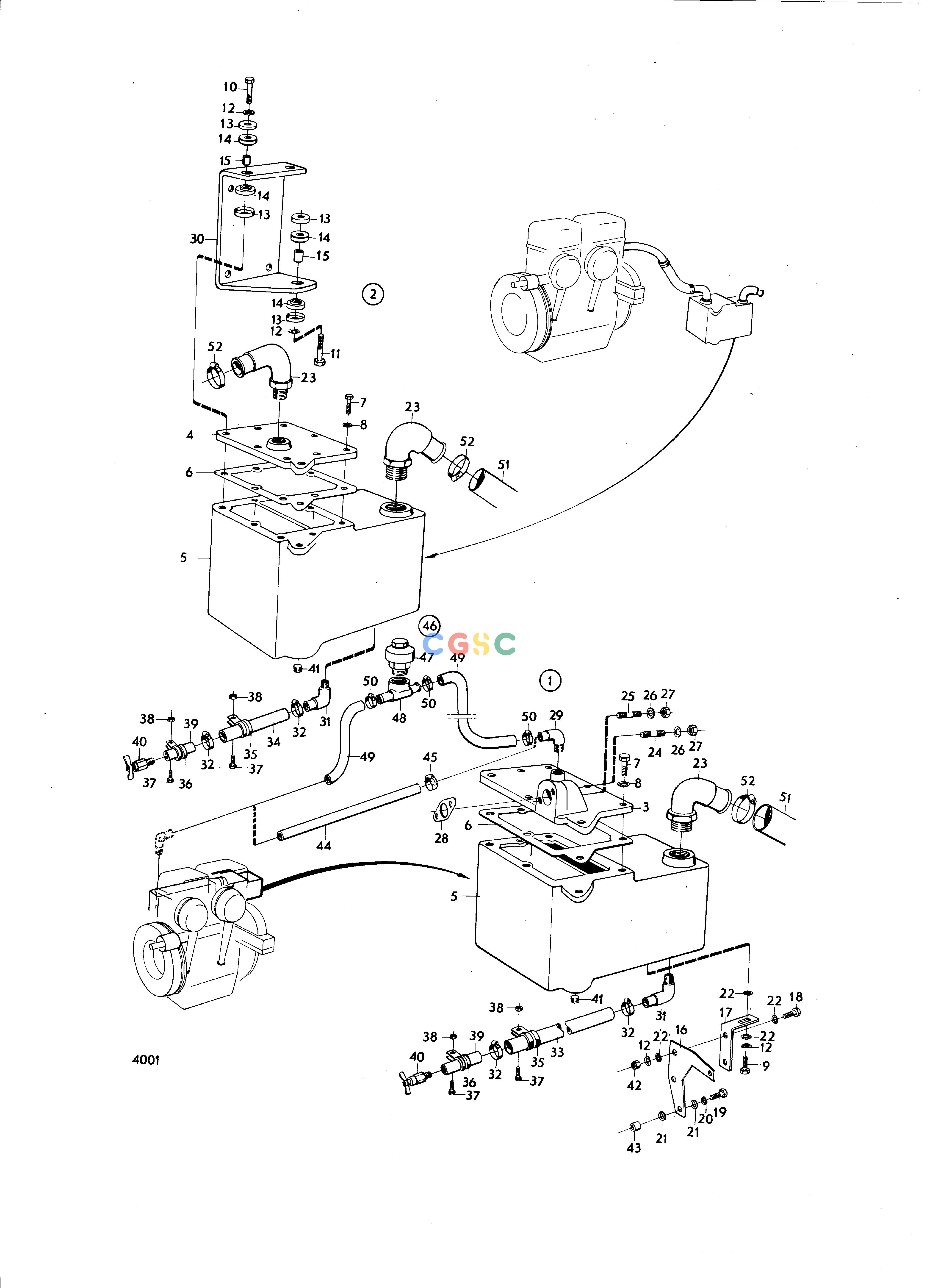

沃尔沃零件查询MD1B; MD2B; AQD2B; MD3BMiscellaneous EquipmentWater Cooled Exhaust Silencer with Installation Components, Earl. Pr.: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
299 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
|
|
|
For separate installation on engine with water-cooled exhaust bend.
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
833630
|
[1] |
Gasket
|
|
| 7. |
955297
|
[7] |
Hexagon screw
|
L=25mm
|
| 7. |
955295
|
[1] |
Hexagon screw
|
L=20mm
|
| 8. |
941907
|
[8] |
Spring washer
|
|
| 10. |
955298
|
[2] |
Hexagon screw
|
|
| 11. |
940142
|
[1] |
Hexagon screw
|
|
| 12. |
941907
|
[3] |
Spring washer
|
|
| 13. |
418531
|
[6] |
Washer
|
|
| 14. |
403877
|
[6] |
Rubber bushing
|
|
| 15. |
807090
|
[3] |
Spacer sleeve
|
|
| 23. |
833631
|
[2] |
Hose attachment
|
|
| 30. |
833691
|
[1] |
Bracket
|
|
| 31. |
801197
|
[1] |
Hose attachment
|
|
| 32. |
961666
|
[2] |
Hose clamp
|
L=1500mm
|
| 34. |
952969
|
[1] |
Hose
|
|
| 35. |
952634
|
[2] |
Clamp
|
|
| 36. |
952629
|
[1] |
Clamp
|
|
| 37. |
956094
|
[3] |
Cross recessed screw
|
|
| 38. |
955781
|
[3] |
Hexagon nut
|
|
| 39. |
833686
|
[1] |
Tube
|
|
| 40. |
82744
|
[1] |
Shut-off cock
|
|
| 41. |
813675
|
[2] |
Plug
|
|
