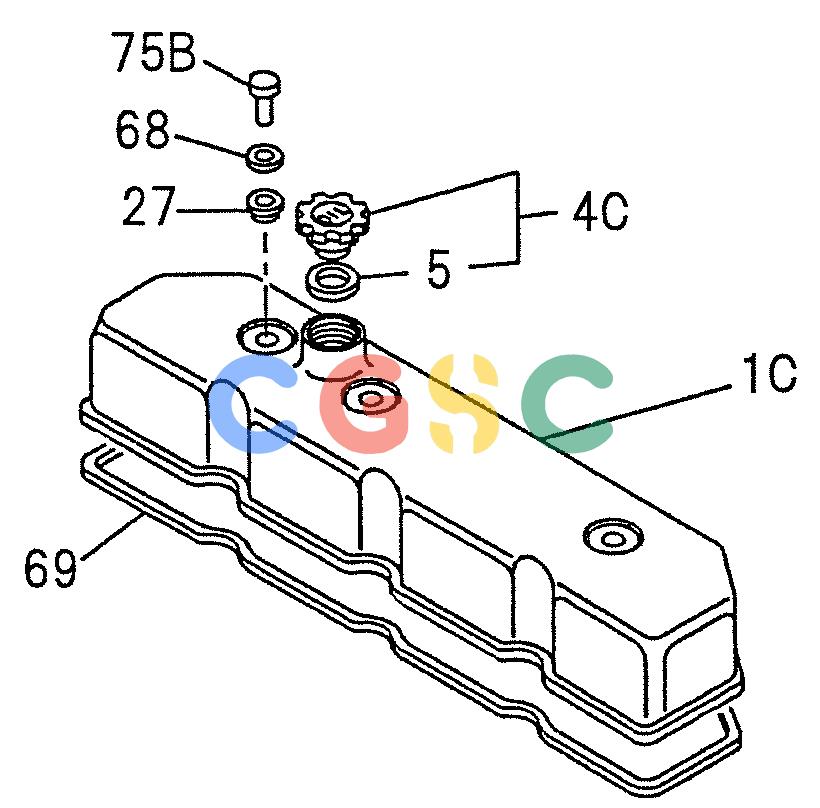

纽荷兰零件查询(E200SRLC) - CRAWLER EXCAVATOR BTW LA04-01506 - LA04-01625 (08-002) - CYLINDER HEAD COVER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
533 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1C. | VI8972237600 | [1] | COVER | KOBCOVER; CYL HD |
| 4C. | VI8943997230 | [1] | CAP | KOBCAP; OIL FILLER |
| 5. | VI8943996890 | [1] | GASKET; OIL FILLER | |
| 27. | VI9111790300 | [3] | GASKET | KOBGASKET; HD COVER Superseded by part number: VI1096390320 |
| 68. | VI9111791050 | [3] | WASHER | KOBWASHER; CAP NUT, HD COVER |
| 75B. | VI9111750120 | [3] | NUT | KOBNUT; CAP, HD COVER |
